Specifications
1.Suitalble for thick metal cutting2.American Cut-Master plasma power
3.YASKAWA servo motor
4.Start control system
5.CE
Aluminum Sheet Plasma CNC Steel Cutting M achine
1. Brief introduction:
New styles of industrial plasma cutting machine for thick metal plates.
It can be used to cut almost all kinds of metal plate automatically.

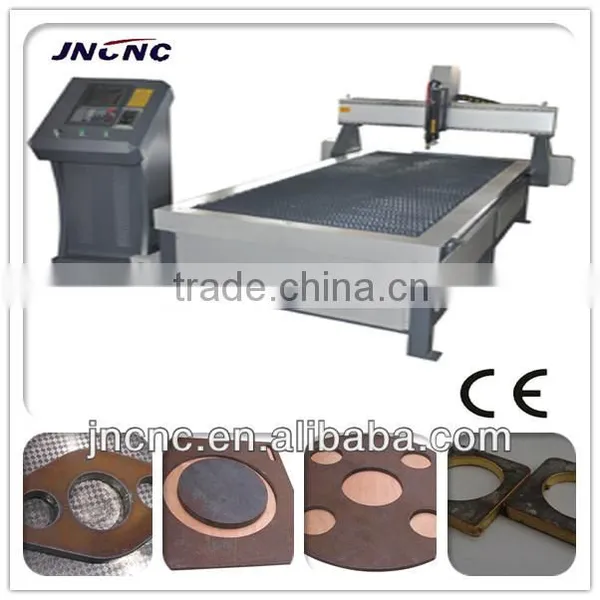

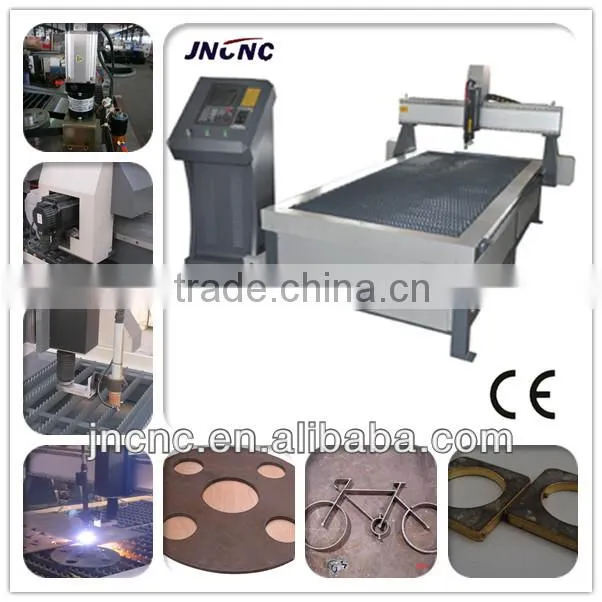

2. Cnc steel cutting machine picture:
3. Parameters:
Model Name |
CNC-PI 1530 |
Working Area |
1500*3000mm |
Power brand |
American Cut-Master |
Motor |
YASKAWA servo motor |
Cutting Thickness |
(40A)0.5-10mm (120A)3-16mm (100A)3-25mm |
Plasma power |
120A(option: 40A/60A100A/200A) |
Cutting Speed |
0--8000mm/min |
Moving Speed |
0---50000m/min |
Input Voltage |
3phase 380V |
Power Frequency |
50HZ |
Power |
8.5KW-10.5KW |
Rail |
Square rail |
Control System |
Start control system made in Sino-US joint venture ( with USB Interface) |
Arc |
Untouched arc striking, Arc Pressure Adjuster |
Working material |
Iron,steel,aluminum sheets,galvanized sheets,titanium plates |
Warranty |
One year |
Optional Equipment |
DSP handle operating system |
4. Features:
1) Small cutting gap, no residua.
2) Advanced CNC control system, auto arc, and stable performance

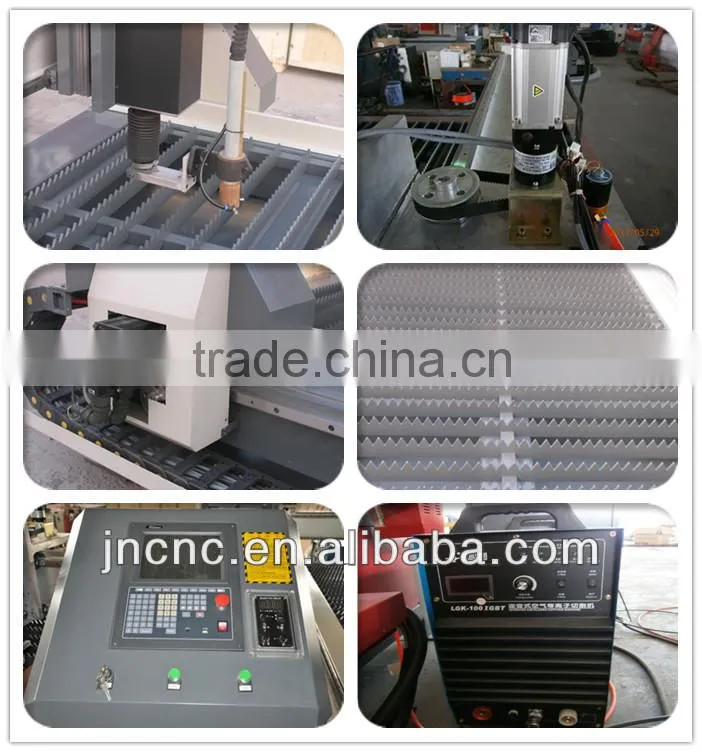

5.Main parts picture:
6. Samples pictures:
7. Packing details:
8.Factory show:
