CE Portable Metal Laser Welding Price
- 50 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | JNCNC | Model Number | ML-200W | |
| Single Pulse Energy | 90J | Pulse Width | 0.1-20ms | |
| Wavelength | 1064nm | Focal Spot Diameter | 0.2mm~2mm | |
| Max. Output Power | 200W | Dimensions | 800*1000mm Load200Kg | |
| Usage | Welding | Power(W) | 6KW | |
| Certification | CE | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE Portable Metal Laser Welding Price
1. Metal Laser Welder Brief Introduction:
This laser welder machine is mainly used in Advertising metal words , the mateial such asstainless steel,steel plate,iron plate and other metal and alloy .

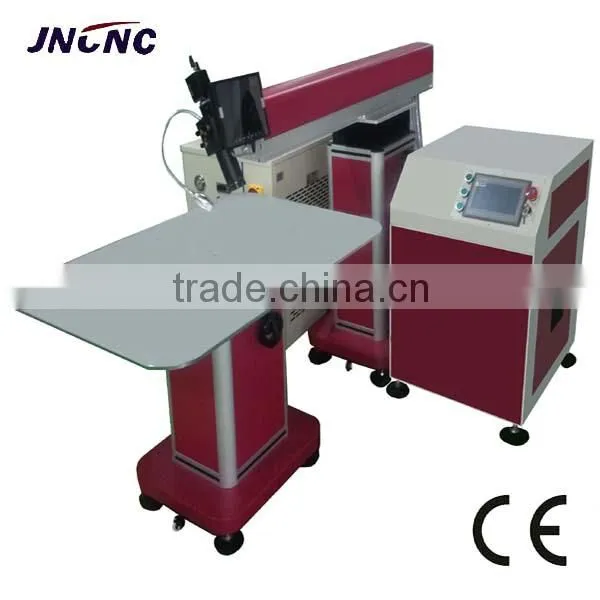

2. Metal Laser Welder Picture of Metal Laser Welder:
3. Metal Laser Welder Technical Parameters:
Packing | G.W.(KG) | N.W.(KG) |
1.98*0.9*1.3m | 295 | 315(water box 82kg) |
Max laser power | 200W | |
Laser wavelength | 1064 nm | |
Monopulse Max power | 90J | |
Laser welding depth | 0.1-1.2mm | |
Pulse width | 0.1-20ms | |
Laser welding frequency | 0.5-40Hz | |
Laser spot size adjusting range | 0.2-2mm
| |
Whole power consumption | ≤7KW
| |
Power need | 220V±10%/50Hz/40A | |
Standard configuration working table | 800*1000mm load200Kg
| |
Sight positioning | CCD synchronism high definition camera | |
Laser device vertical travel | ≥200mm
| |
Laser device horizontal direction | 200-800mm
| |
4. Metal Laser Welder Advantages:
1).Laser Cooling Machine
2).Panasonic and Sony,other imported parts adopted in the whole machine
3).German technology, maintainence for whole life
4).Adopt high-power laser power devices
5).Continuous work for 24 hours

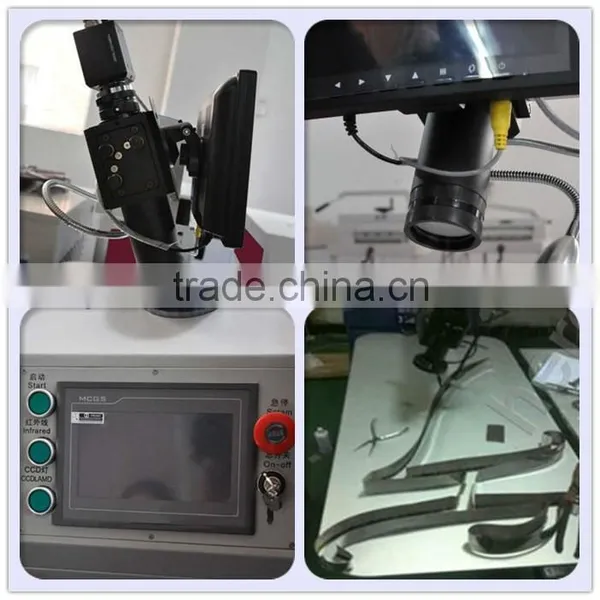

5. Metal Laser Welder Main Parts Pictures:

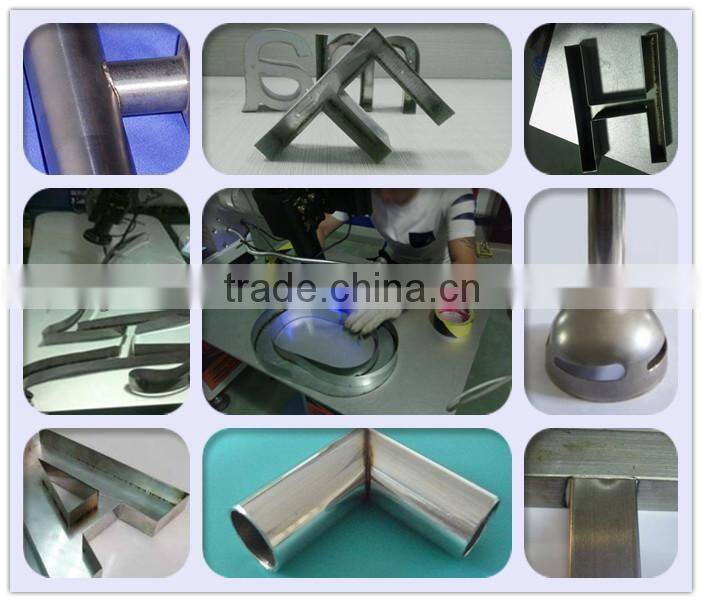

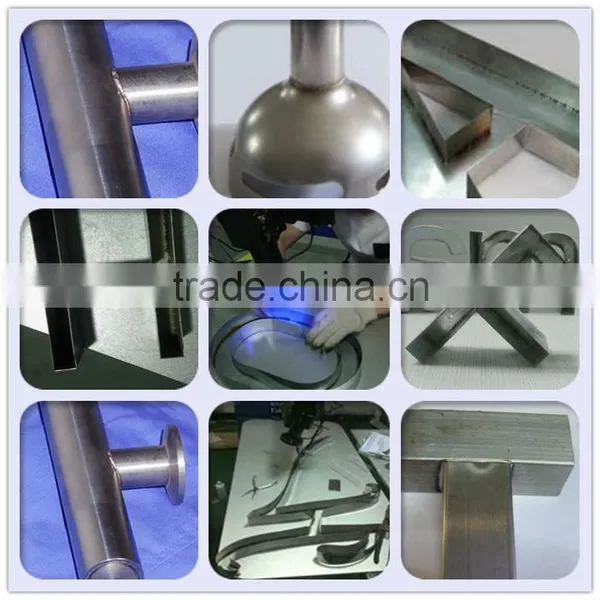

6. Metal Laser Welder Samples Show:

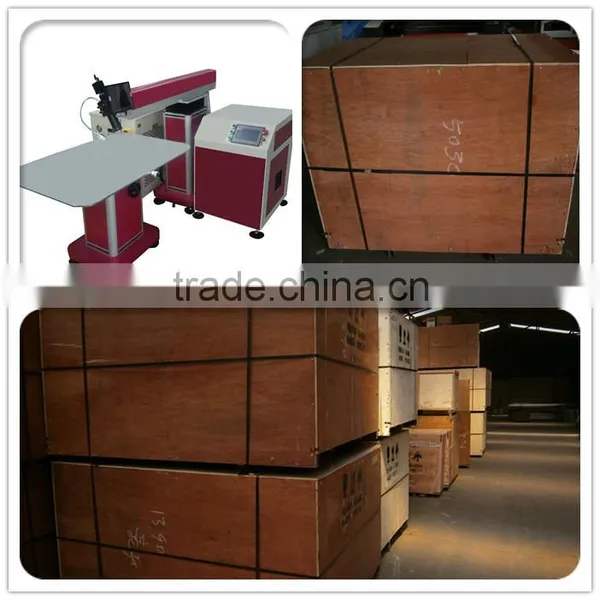

7. Metal Laser Welder Packing Show:
8. Metal Laser Welder Warranty and After Sales Service:
1).Life time free maintenance service.
2).Free training course at our factory with professional engineers.
3).We provide the consumable parts at agent price when you need replacement
4).24 hours online service each day, free technical support with different languages.
5). We provide door to door technical support to agents, if necessary.
