Huawei Metro 3000 Series OptiX SS-PQ3

Specifications

1, Huawei Metro 3000 Series
2, Optix 2500 SS-PQ3
3. 12xE3/T3 electrical interface board

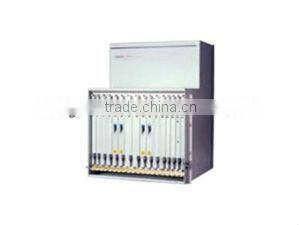

Huawei Metro 3000 Series OptiX 2500+  SS-PQ3



OptiX 2500 + (Metro3000) STM-16 MADM / MSTP optical transmission system.



OptiX 2500 + (Metro3000) STM-16 MADM / MSTP optical transmission system (hereinafter referred to as the OptiX 2500 +) device is a multi-service transport platform (MSTP) equipment. The device is the SDH / ATM / Ethernet / DWDM technology integration; it not only has SDH equipment and flexible networking and service scheduling capability (MADM), but also can through 2-layers’ data services, achieve ATM / Ethernet service access, processing, transmission and scheduling in a single device multiple services such as voice, data transmission and processing.



Product Features



 High-capacity, multi-rate and multi-protocol access.

 Powerful MADM, flexible networking and configuration capabilities,

 Be able to meet the diversity of business needs

 Tricyclic unity

 Encapsulation protocol optional and mapping particles adjustable

 Offers a variety of Ethernet business model

  Ethernet port aggregation is strongest

 Close to the customer's full data capabilities

Reliable and complete protection to strengthen the network survivability



  Huawei Metro 3000 Series OptiX 2500+ SS-PQ3



There also have many boards Optix 2500+(Metro 3000):
SS-RACK-2.0(T) T66 assembled cabinet (2000x600x600)
SS-RACK-2.2(T) T66 assembled cabinet (2200x600x600)
SS-RACK-2.6(T) T66 assembled cabinet (2600x600x600)
SS-SUBRACK SS6K8SUBRACK-2500+sub-rack (VIII)
SS-SCC  master control board
SS-XCS  XC Cross Connect and Clock processing board

SS-S16(S-16.1 SC) STM-16 optical interface board (S-16.1, SC)
SS-S16(S-16.2 SC) STM-16 optical interface board(S-16.2,SC)
SS-S16(L-16.1 SC) STM-16  optical interface board (L-16.1,SC)
SS-S16(L-16.2 SC) STM-16  optical interface board (L-16.2, SC)
SS-S16(Le-16.2 SC) STM-16 optical interface board (Le-16.2,SC)
SS-S16(V-16.2 SC) STM-16 optical interface board (V-16,SC)
SS-S16(U-16.2 SC) STM-16 optical interface board (U-16,SC)

SS-SL4(Ie-4 SC) STM-4 optical interface board (Ie-4,SC)
SS-SL4(S-4.1 SC) STM-4 optical interface board (S-4.1,SC)
SS-SL4(L-4.1/SC) 1xSTM-4 optical interface board (L-4.1,SC)
SS-SD4(Ie-4 SC) 2xSTM-4 optical interface board (Ie-4,SC)
SS-SD4(S-4.1 SC) 2xSTM-4 optical interface board(S-4.1,SC)
SS-SD4(L-4.1 SC) 2xSTM-4 optical interface board (L-4.1,SC)
SS-SD4(L-4.2 SC) 2xSTM-4 optical interface board (L-4.2,SC)

SS-SL1(S-1.1 SC) STM-1 optical interface board (S-1.1,SC)
SS-SL1(L-1.1 SC) STM-1 optical interface board (L-1.1,SC)
SS-SL1(L-1.2 SC) STM-1 optical interface board (L-1.2,SC)

SS-SD1(S-1.1 SC) 2xSTM-1 optical interface board (S-1.1,SC)
SS-SD1(L-1.1 SC) 2xSTM-1 optical interface board (L-1.1,SC)
SS-SD1(L-1.2 SC) 2xSTM-1 optical interface board (L-1.2,SC)
SS-SQ1(S-1.1 SC) 4xSTM-1 optical interface board (S-1.1,SC)

SS-PQ1(75 )  63xE1 interface board (75 ohm)
SS-PQ1(120 ) 63xE1 interface board (120 ohm)
SS-E75(75/120) 63xE1/T1 access board (75/120ohm)
SS-E75S(75) 63xE1 changeover access board(75ohm)

SS-EFT Fast Ethernet VC-12/VC-3 transparent transmission board
SS-ET1 Fast Ethernet VC-12 transparent transmission board
SS-EMT8(RJ45) 8-port Ethernet access board(RJ45)
SS-EMS1 Fast/Gigabit Ethernet switching processing board
SS-EFS0  Fast Ethernet VC12/VC3 switching processing board
SS-EGT2   Gigabit Ethernet VC-4/VC-3 transparent transmission board

SS-BA2-D(14 SC)  2*Optical booster amplifier board (14dBm,SC)
SS-BPA(14/-37 SC) Optical booster & pre-amplifier board (14/-37dBm,SC)
SS-BA2-S(14 SC) single Optical booster amplifier board (14dBm,SC)
SS-BA2-S(17 SC)   single Optical booster amplifier board (17dBm,SC)
SS-BA2-D(17 SC)   dual Optical booster amplifier board (17dBm,SC)
SS-BA2-D(14/17 SC)  dual Optical booster amplifier board (14/17dBm,SC)
SS-BPA(17/-37 SC)  Optical booster & pre-amplifier board (17/-37dBm,SC)





There also have many items of Huawei, Any interests, please feel free to ask me!!!
