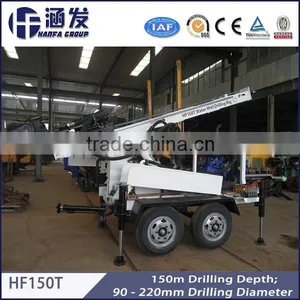

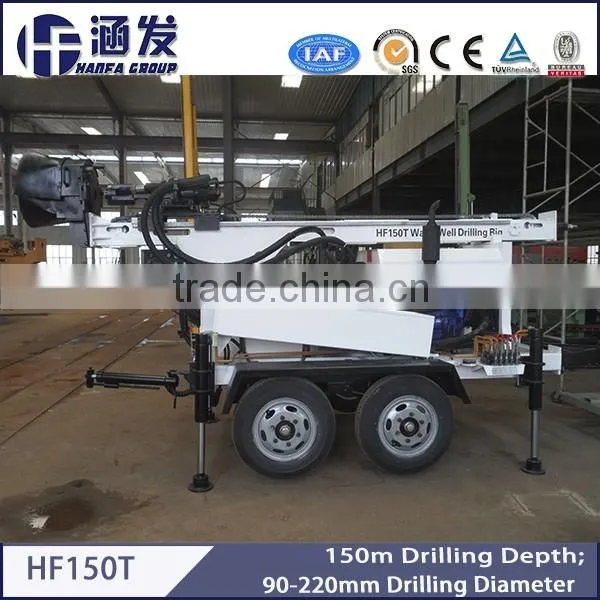

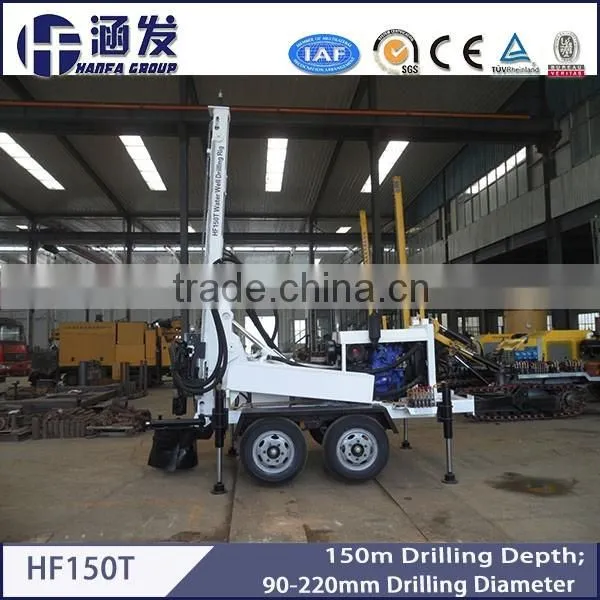

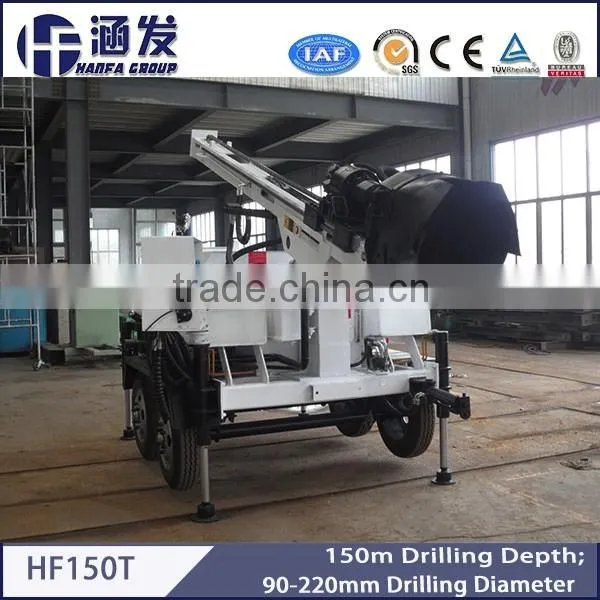

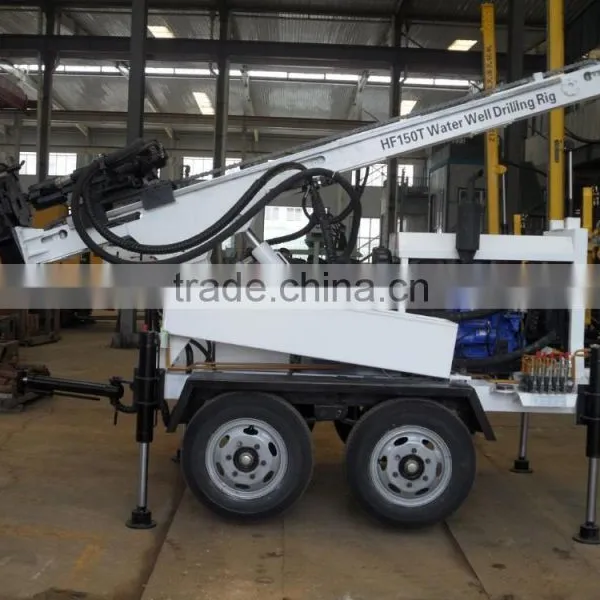

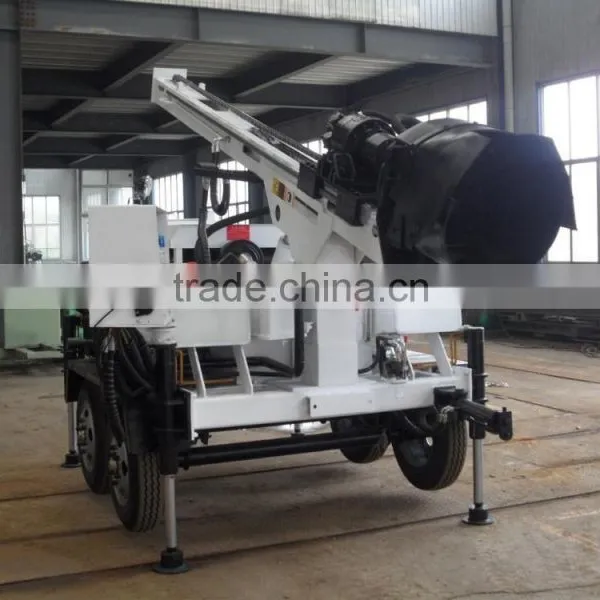

HF150T Down The Hole Drilling Machine for Water Holes
HF150T portable trailer drilling rig is designed by our engineers borrowed the advanced technology from domestic and foreign countries
The rig is reasonable design, complete matching, superior performance, easy to operate, easy to repair.
It is hydraulic drive, trailer type. The drive head is driven by low-speed big torque motor. It has two-gear stepless speed regulating, advanced easy structure, steel wire feeding system. The drilling rig is in good stability, attractive appearance and realizes the design principle of "base on people".
With large torque, high configuration,reasonable design, advanced control way assure the efficient working.
The diesel engine of the drilling rig is low emission,professional drop noise design, so it can used in various construction sites.
With nice appearance, compact structure, reliable performance, easy operation, the drilling rig is the best choice
The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Geology drilled |
All kinds |
Drill depth |
0-150 m |
Drilling Diameter |
90 - 220mm |
Drill system and operation |
Hydraulic |
Rig assembly |
1 complete unit, main engine driven |
Mobility |
4 wheel tandem road trailer |
Transportation |
Towed by pickup or light truck |
Drill pipe (diameter x length) |
60/76 mm x 2 m |
Mud pump |
400 L/min |
Foam pump |
Hydraulic driven, mounted on rig |
Weight |
2177 kg |
ROTARYHEAD&FEED SYSTEM |
|
Top head drive by a hydraulic cylinder through heavy duty chain. | |
Rotation torque |
2232 N-m |
Speed |
0 - 34 rpm. |
Head travel |
2.25 meter |
Pull-up capacity |
3813.09 kg. |
Pull-up speed-slow feed |
1.22 meter/min |
Pull-up speed-rapid feed |
12.26 meter/min |
Pull-down speed-slow feed |
0-1.88 meter/min |
Pull-down speed-rapid feed |
0- 16.90 meter/min |
DRILL PIPE |
|
Drill pipe length |
2.00 meter |
Drill pipe diameter |
76 mm |
Thread |
2 3/8 REG API Mod |
Power pack speed |
3000 rpm. |
Load power pack |
max. 47 hp. |
MUD PUMP |
|
Flow capacity |
400 liter/min |
Max. working pressure |
6 bar |
HYDRAULIC SYSTEM |
|
Hydraulic tank capacity |
140 liter |
STABILIZING JACK |
|
2 front jacks and 2 rear jacks. |
|
Bore |
80 mm. |
Stroke |
480 mm |
AIR SYSTEM |
|
Lubricator of venturi-type for down-the-hole drills. | |
Max. pressure |
40 bar |
Oil tank capacity |
8 liter |
DIMENSIONS |
|
Overall length |
4540 mm |
Overall width |
1750 mm |
Overall height |
1900 mm |
Diesel engine |
|
Power |
45KW |
MODEL |
YC2115 |
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
