46m HF850A , Piling Driving Machine Manufacturer
US$ 40,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF-YD7 Full Hydraulic Pile Driver Equippment,piling EquipmentUS$ 50,000 - 80,000MOQ: 1 Set -
Hanfa Brand 56m Depth 80 KN.M Torque Bore Piling Machine HF856AUS$ 50,000 - 80,000MOQ: 1 Set
-
Professional Engineering Drill Machines Manufacturer! HFD530 Breaking Layer Drilling RigsUS$ 900,000 - 1,100,000MOQ: 1 Set
-
High Effiency ! HF-YD7 Full Hydraulic Hammer Pile DriverUS$ 50,000 - 80,000MOQ: 1 Set
-
56m Depth HF 168A Construction Piling RigUS$ 50,000 - 80,000MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
HF
Model Number
HFD 850A
Usage
Water Well
Voltage
380V
Power(W)
112kw
Dimension(L*W*H)
16480mmX3200mmX7456mm
Weight
36000KGS
Certification
ISO 9001:2000
Warranty
1 Years
After-sales Service Provided
Overseas service center available

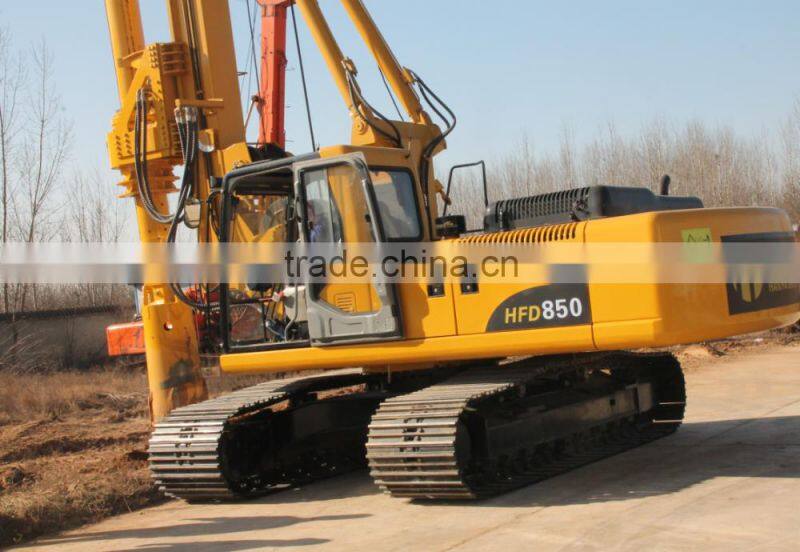

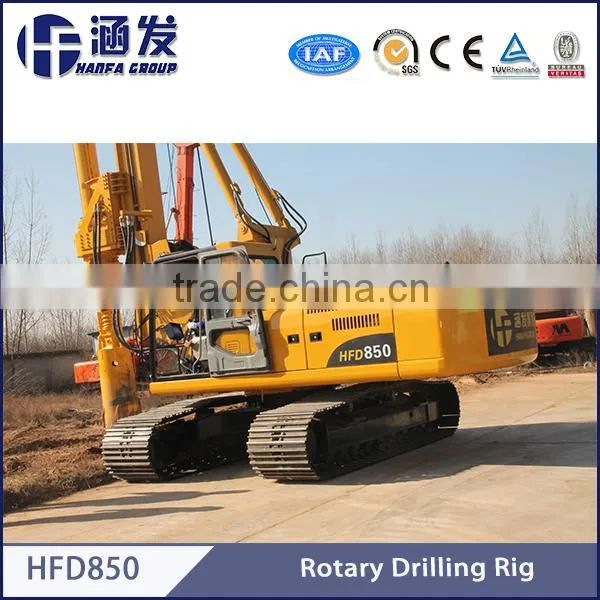

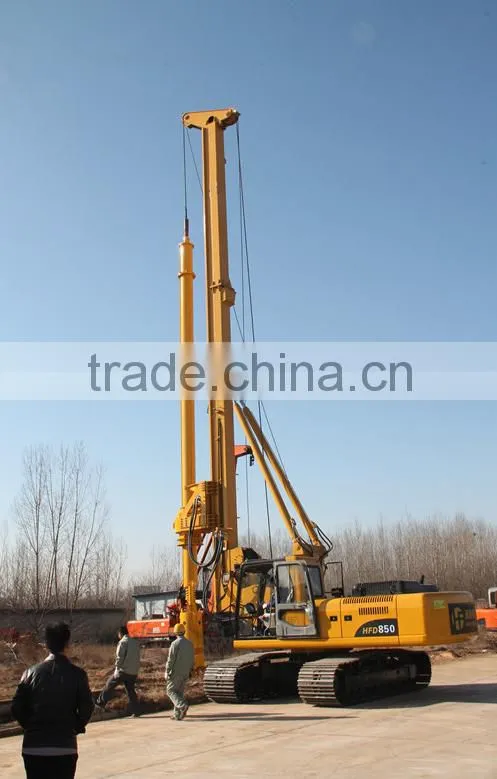

46m Pile Driver Engineering Foundation Equipment HF850A , Piling Driving Machine Manufacturer
• The power head adopts unique patented structure, which features low cost, not easily damaged and convenient for repair.
• Main winch: it adopts originally imported Italy hydraulic motor. It is more flexible and can be lowered freely, and the lifting speed is up to 80m/min, which greatly improves the work efficiency. The main winch is allocated at the front right of the operator, so the operator can observe its work condition and avoid twisted ropes.
| Parameters | HFD850A | |
|---|---|---|
| Drilling diameter | 600 - 1600mm | |
| Dimension | Max. drilling depth | 46m |
| Working dimensions | 16480mmX3200mmX7456mm | |
| Transport dimensions | 13912mmX3200mmX3235mm | |
| Machine weight | 36000kg | |
| Engine | Model | B 5 . 9 - C Cummins (imported) |
| Rated power | 112kw | |
| Type | Turbocharged, direct injection | |
| Rotary drive | Max. torque | 80kn·m |
| Speed | 1-22rpm | |
| Crowd cylinder | Max. push force | 150kn |
| Max. pulling force | 100kn | |
| Max. Stroke | 3000mm | |
| Main winch | Max. line pull | 120kn |
| Max. line speed | 70m/min | |
| Rope diameter | 24mm | |
| Auxiliary winch | Max. line pull | 60kn |
| Max. line speed | 50m/min | |
| Rope diameter | 18mm | |
| Mast inclination | Free adjustment, forwards/backwards | 0-93° |
| Free adjustment, left/right | ±3° | |
| Electronic control system | Remote control | Optional |
| Drilling record system | Optional | |
| Printer | Optional | |
| Chassis | Type | Customizable |
| Max. travel speed | 2.0km/h | |
| Min. ground clearance | 500mm | |
| Track width | 800mm | |
| Hydraulic system pressure | 300 bar | |
