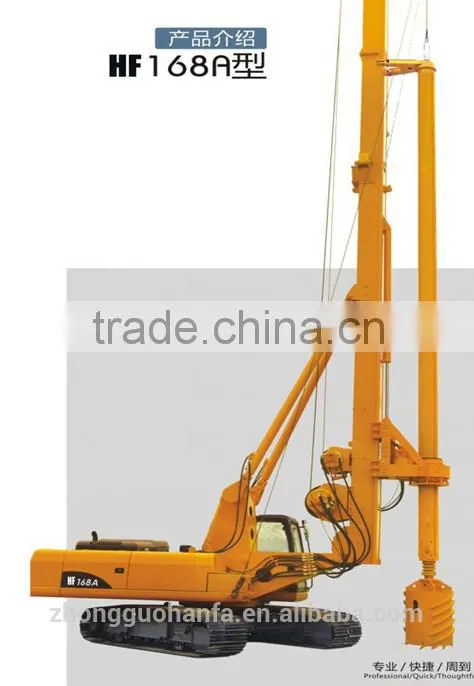

Help Center56m Depth HF168A Civil Building Piling Rig, Piling Equipment
Related Products
-
Exported to Colombia 80 KN.M Torque Bore Piling Machine HF856A With 56 DepthUS$ 50,000 - 80,000MOQ: 1 Set -
HFD 530 Rotary Drilling Rig ,piling Driver,US$ 30,000 - 50,000MOQ: 1 Set
-
Rotary Drilling Machine With CE CertificateUS$ 273,000 - 277,000MOQ: 1 Set
-
Factory Price Rotary Drilling RigUS$ 273,000 - 277,000MOQ: 1 Set
-
CE Certificate Hydraulic Piling Rotary RigUS$ 273,000 - 277,000MOQ: 1 Set

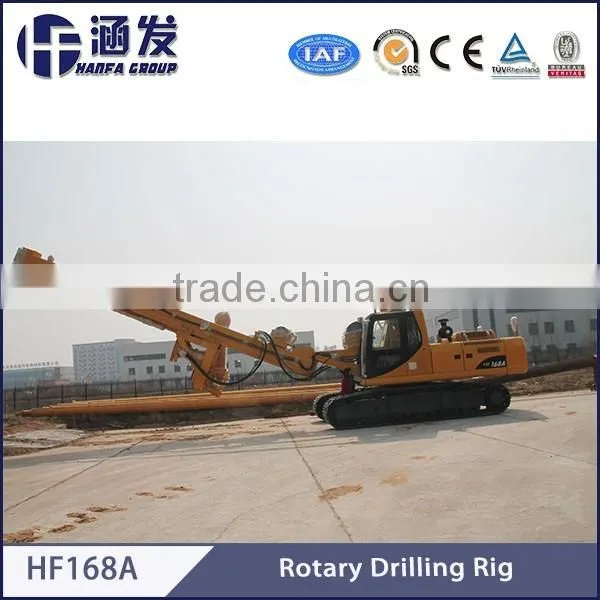

HF 168A civil piling rig
·The folding mast structure has the advantages of simple, great durability, saving cost and making repair more convenient.
`Using the high position-oriented structure for the frame, which guarantees the verticality between kelly bar and ground, kes constucture more convenient, improves work efficiency, increses safty.
`Power head adopts unique patent structure, which save cost and make repair more convenient.
`Main windlass: Adoptin original imported hydraulic pressure motor from Italy. It has sensitivereaction and can free down, which speed can be up to 80m/min and improve the construction efficiency. Main winch lays in the cavit of te U-shape, whchlocates in the operator's right field of vision (enables operator to obseve working condition of main winch freely). This kind of situation is not only simple but also practical.
| Technology Data | HF168A | ||
| Drilling diameter | mm | 600-1600 | |
| Max. drilling depth | m | 44/56 | |
| Overall measurement | Working dimentions | mm | 7630X3710X18572 |
| Transport dimentions | mm | 15189X2910X3173 | |
| Rotary drive torque | KNm | 80/165 | |
| Rotation speed | rpm | 24/12 | |
| Crowd cylinder | Max. push | KN | 150 |
| Max. pull | KN | 100 | |
| Max. stroke | mm | 3000 | |
| Main winch | Max. line pull | KN | 120 |
| Max line speed | m/min | 70 | |
| Auxiliary winch | Max. line pull | KN | 60 |
| Max line speed | m/min | 50 | |
| Engine | Rated power | KW | 133 |
| type | B5.9-C Cummins (U.S.A) | ||
| Electronic Managagement System | Long distance monitor system | Available | |
| Drilling record system | Available | ||
| On car printer | Available | ||
| Hydraulic system pressure | bar | 300 | |
| Chassis | Chassis modality | Fixation | |
| Max. travel speed | km/h | 2.0km/h | |
| Min ground clearance | mm | 500 | |
| Track width | mm | 700 | |
| Mast inclination | Free adjustment forwards / backwards | 0-93° | |
| Free adjustment left / right wards | ±3° | ||
| Machine Weight | kg | 38500 | |
