CANBus Output Magnetostrictive Linear Scale
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Germanjet
Model Number:
19P Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Profibus Output Magnetostrictive Linear ScaleUS$ 300 - 1,000MOQ: 1 Piece -
DeviceNET Magnetostrictive Linear Position SensorUS$ 300 - 1,000MOQ: 1 Piece
-
0-10V Voltage Magnetostrictive Linear ScaleUS$ 100 - 500MOQ: 1 Piece
-
20-0mA Current Absolute Magnetostrictive Linear ScaleUS$ 100 - 500MOQ: 1 Piece
-
0-20mA Current Absolute Magnetostrictive Linear ScaleUS$ 100 - 500MOQ: 1 Piece
Place of Origin
Germany
Brand Name
Germanjet
Model Number
19P Series
Usage
Position Sensor
Theory
Other, Magnetrostrictive
Output
Digital Sensor
Product Description
Magnetostrictive Position Sensor, Level Sensor, Linear Scale

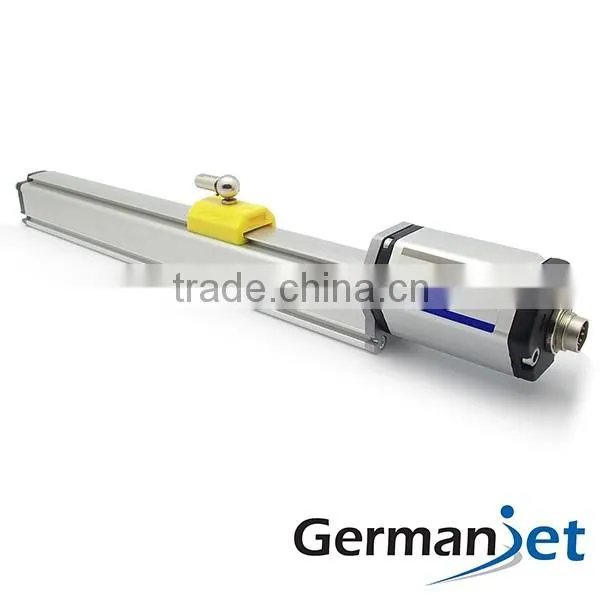

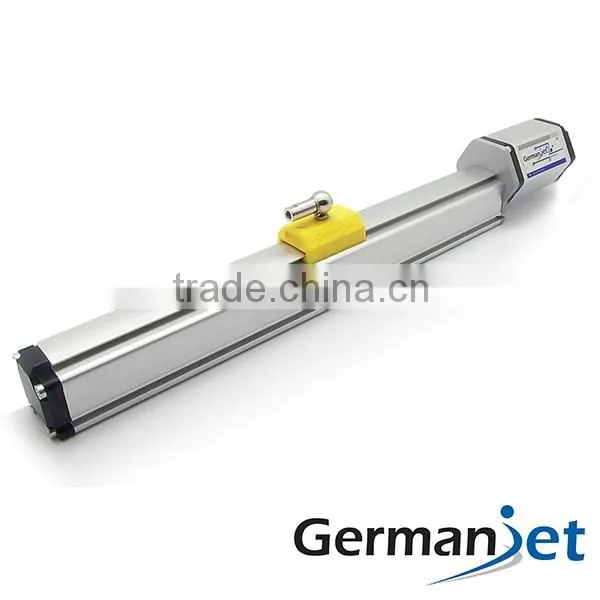

P model - Aluminium Profile
H model is designed for hydraulic cylinder. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily; Hydraulic fluid doesn't need to be withdrawn when doing sensor calibration or replacement. This design greatly reduces the down time and improves efficiency.
| Order Code | 194 |
| Output | CANBus |
| Measurement Type | Linear displacement |
| Data Protocol | CANopen: CIA Standard DS-301 V3.0 |
| CANbasic : CAN 2.0A | |
Baud Rate |
Baud rate : 1000 800 500 250 125 50 20 Kbit/s |
Cable length : <25 <50 <100 <250 <500 <1000 <2500 m |
|
| Resolution | CANopen CANbasic |
| 5μm 2μm 5μm 2μm | |
| 0.5mm/s 0.2mm/s 1.0mm/s 0.1mm/s | |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |

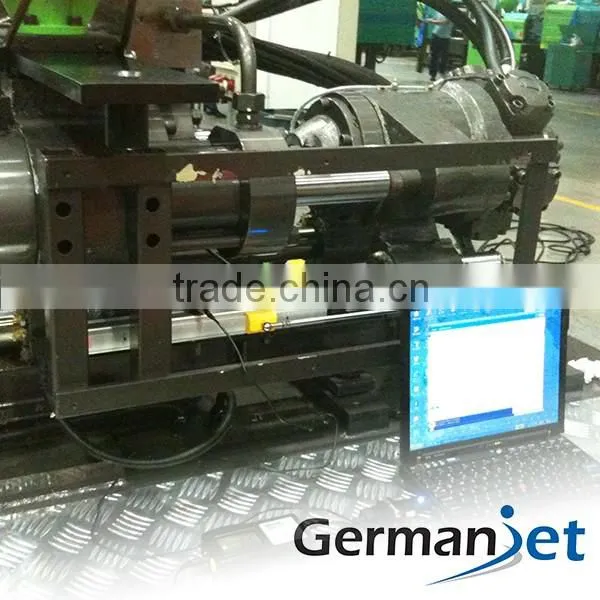

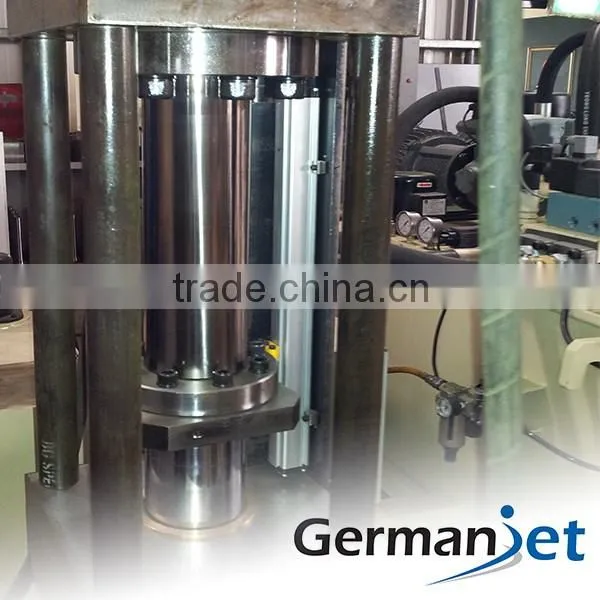

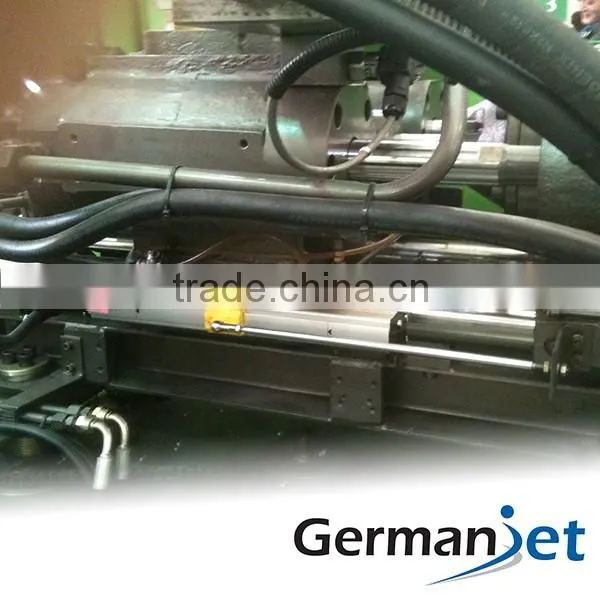

Installation
