Profibus Output Magnetostrictive Linear Scale
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Germanjet
Model Number:
19P Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DeviceNET Magnetostrictive Linear Position SensorUS$ 300 - 1,000MOQ: 1 Piece -
0-10V Voltage Magnetostrictive Linear ScaleUS$ 100 - 500MOQ: 1 Piece
-
20-0mA Current Absolute Magnetostrictive Linear ScaleUS$ 100 - 500MOQ: 1 Piece
-
0-20mA Current Absolute Magnetostrictive Linear ScaleUS$ 100 - 500MOQ: 1 Piece
-
20-4mA Current Absolute Magnetostrictive Linear ScaleUS$ 100 - 500MOQ: 1 Piece
Place of Origin
Germany
Brand Name
Germanjet
Model Number
19P Series
Usage
Position Sensor
Theory
Other, Magnetostrictive
Output
Digital Sensor
Product Description
Magnetostrictive Position Sensor, Level Sensor, Linear Scale

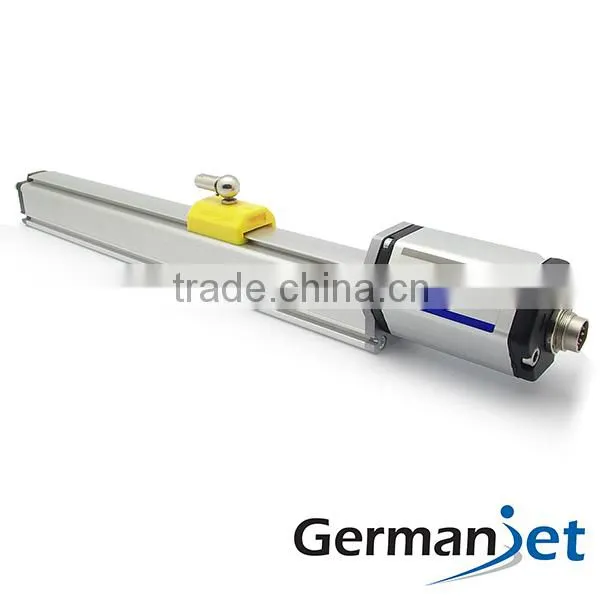

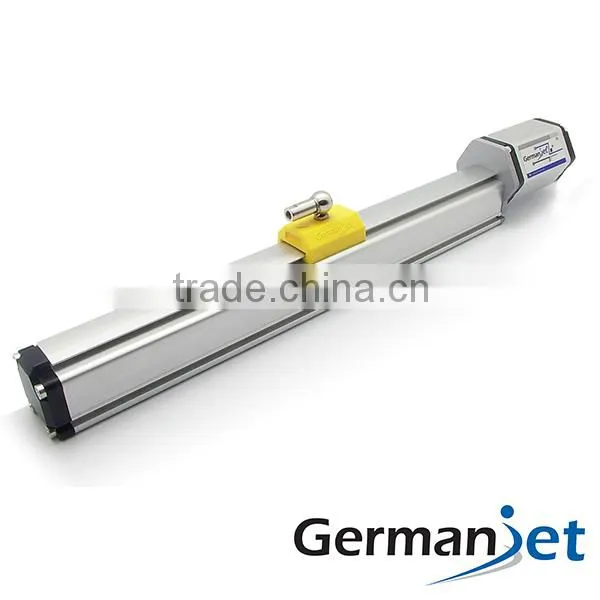

P model - Aluminium Profile

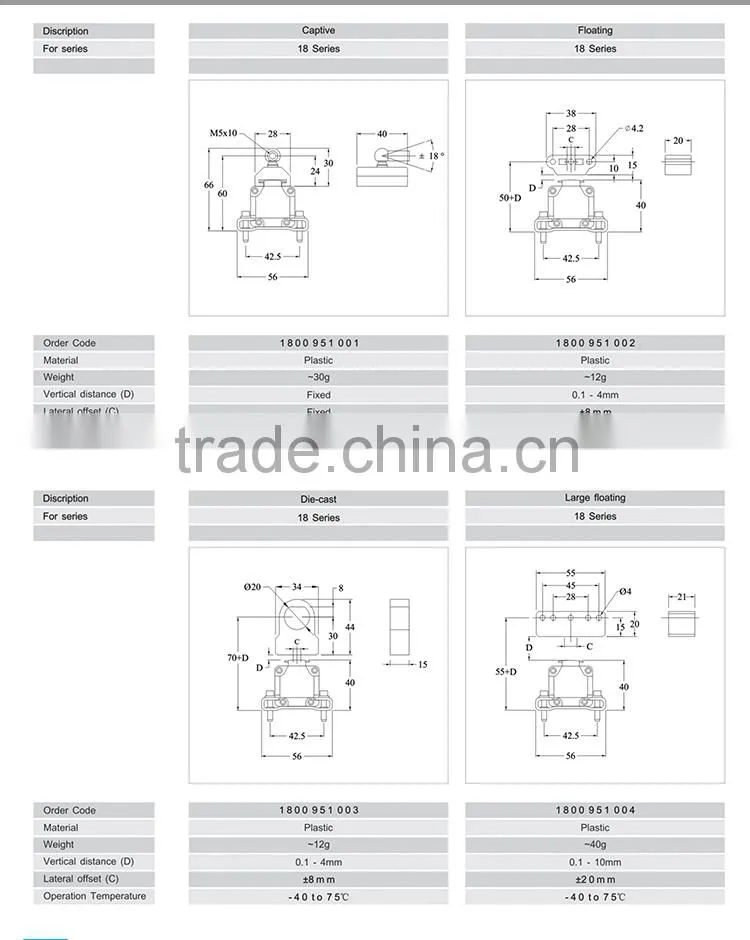

P model is designed for machine equipment. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment.

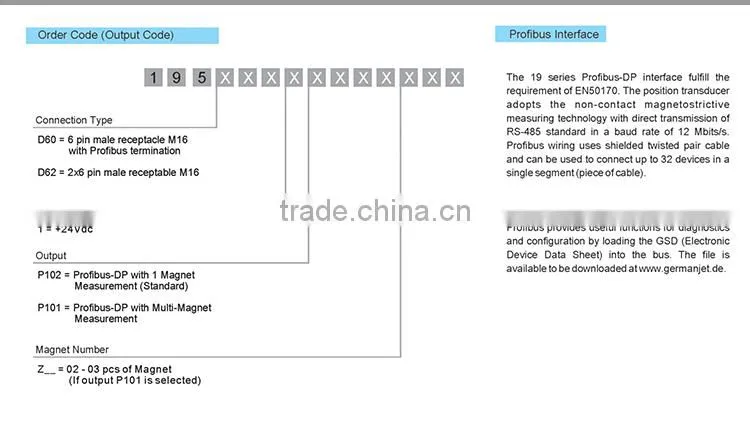

| Order Code | 195 |
| Output | Profibus |
| Measurement Type | Linear displacement |
| Data Protocol | Profibus-DP (EN-50 170) |
| Output Signal | Profibus-DP System according ISO 74498 |
Baud Rate |
Max 12Mbit/s |
| Resolution | Position: 5μm/ other values selectable via GSD file |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |

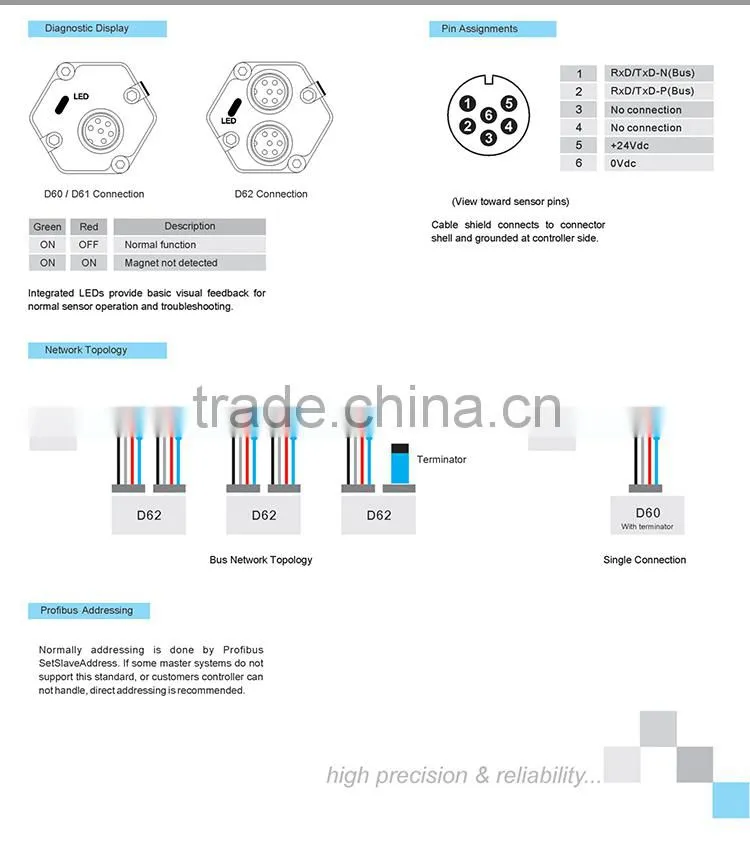

| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |

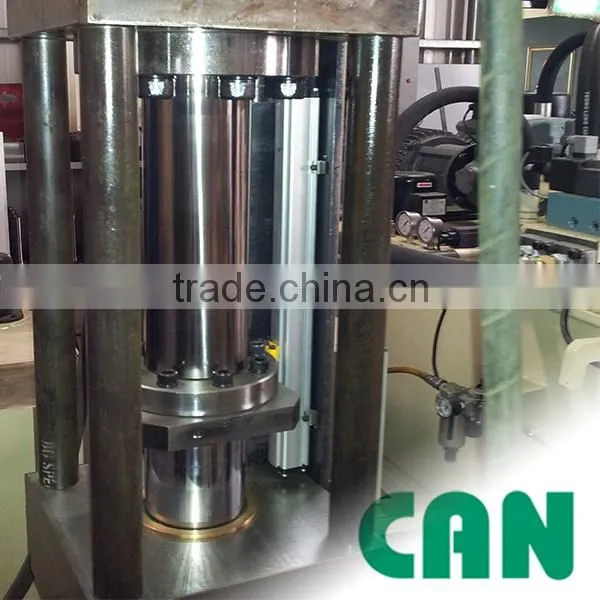

Installation
