HF525 Direct factory supply rotary drilling rig factory price

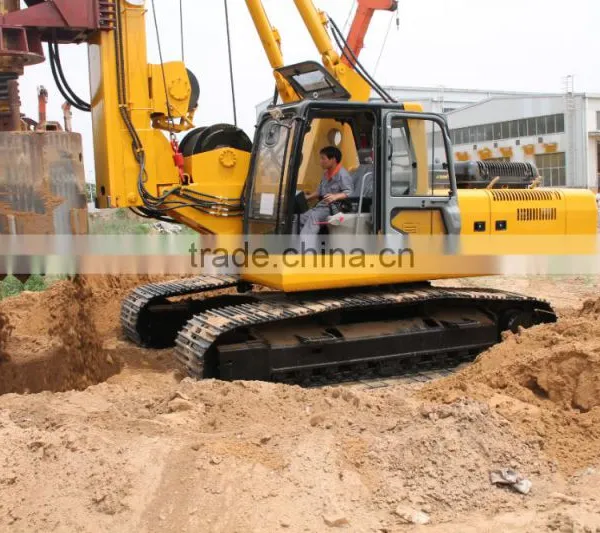

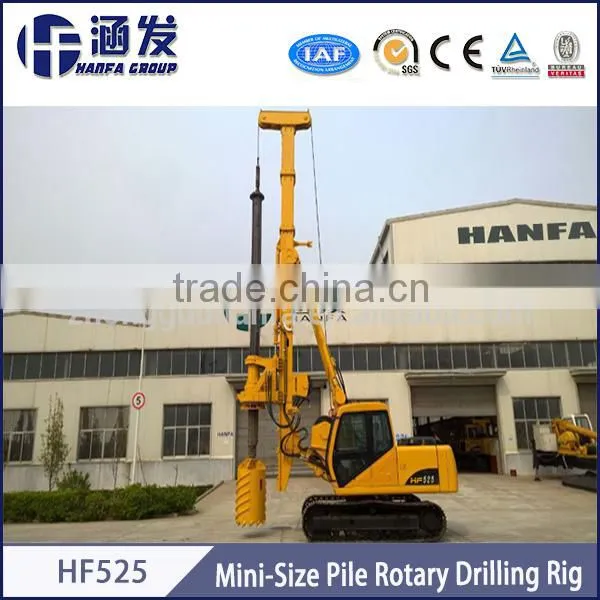

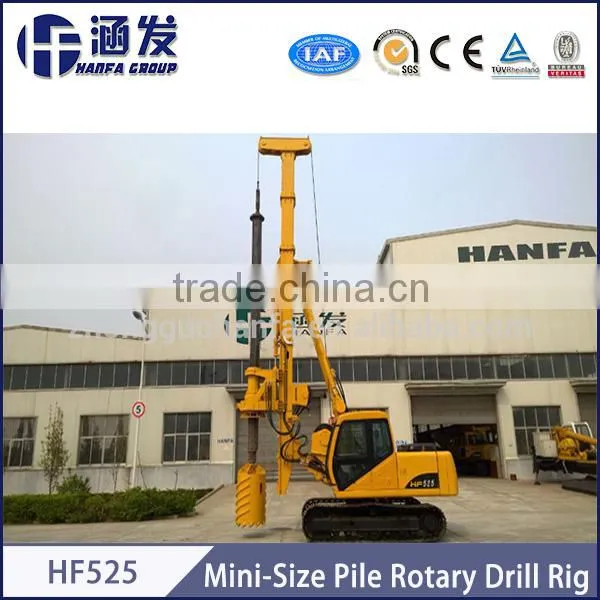

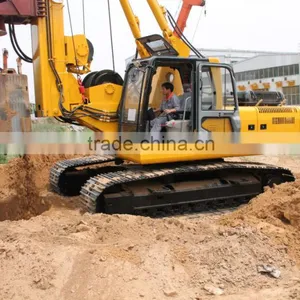

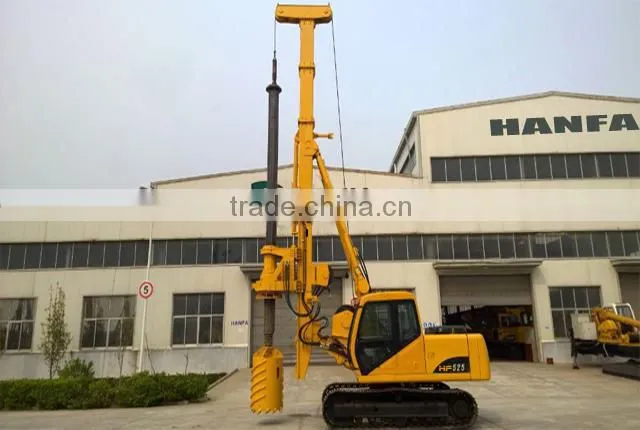

1. HF525 Mini-Size Pile Rotary Drilling Rig is a kind of mini-type of drilling rig machine.
2.The max torque of this machine is 50knm, the max drilling depth is 25m and the max drilling diameter is 1400mm.
4.The whole machine’s weight is about 25000kg, whose operation height is 10.9m.
5.This kind of machine has the following advance: great power, compact and flexible, simple operation and less pollution.
6.Using a new type of triangular luffing mechanism not only can satisfy various amplitude requirements during the work, but also optimize the old-style operation mode.
7.Meanwhile, with the steady grand trine structure, the whole machine is more steady and can adapt all kinds of complex topography.
| HF525 Mini-Size Pile Rotary Drilling Rig technical data | |||
| Max. drilling diameter | mm | 1400 | |
| Max. drilling depth | m | 25 | |
| Engine power | Power | kw | 86 |
| type | Japanese-Yanma(86kw)/2200RPM | ||
| Rotary Drive | Torque | knm | 50 |
| Speed | rpm | 1-20 | |

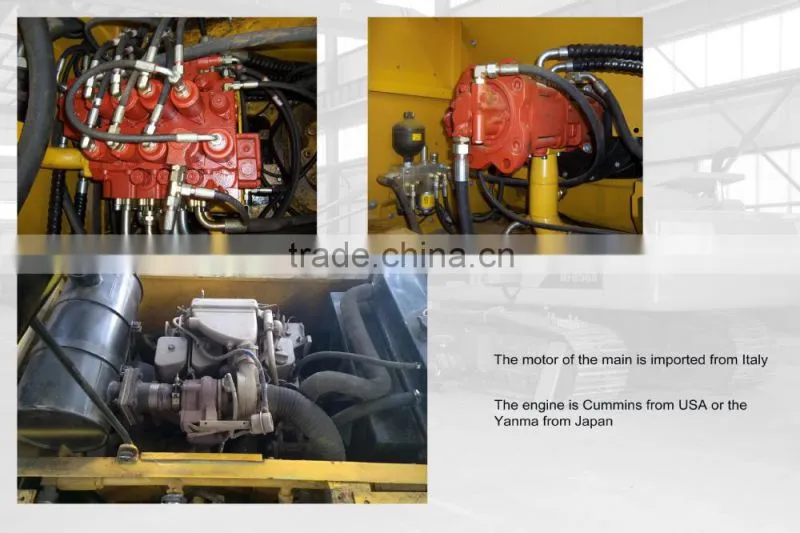

| Motor | Italy Sai | ||
| Main Winch | Max.pull | kn | 80 |
| Motor | Italy Sai | ||
| Auxiliary winch | Shanghai | ||
| Crowd cylinder | Max. push | kn | 100 |
| Overall measurement | Working dimensions | mm | 10913X2600X5810 |
| Transport dimensions | mm | 9908X2600X3207 | |
| Traveling gear | Toshiba/Chinese-Doushan | ||
| Hydraulic pump | Toshiba/Chinese-Doushan | ||
| Hydraulic valve | Toshiba/Chinese-Doushan | ||
| Machine weight | kg | 25000 | |
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
1.New machine provides technical train.
2.Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3.When the machine should be maintained,you will receive the reminding from us.
4.According to different geological conditions,we will recommend different construction plans for you.
5.Remind you which are wearing parts,so you can prepare enough.
6.24 hours respond to your quality problem.
7. Other customer's reasonable request
1,Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality? All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
