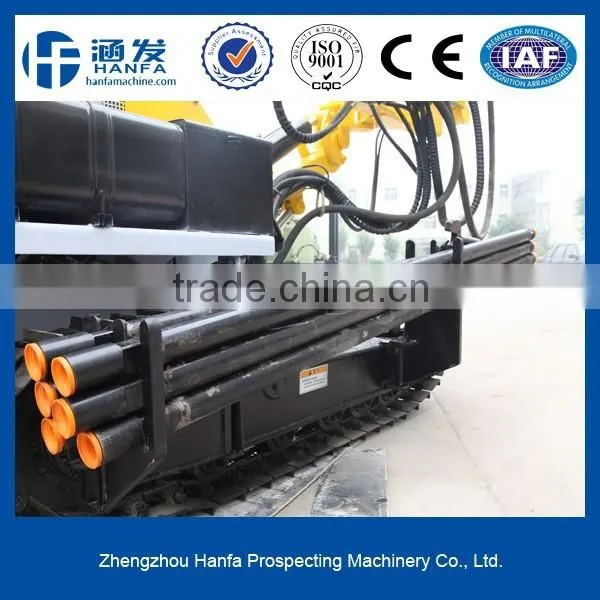

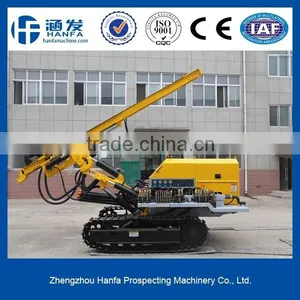

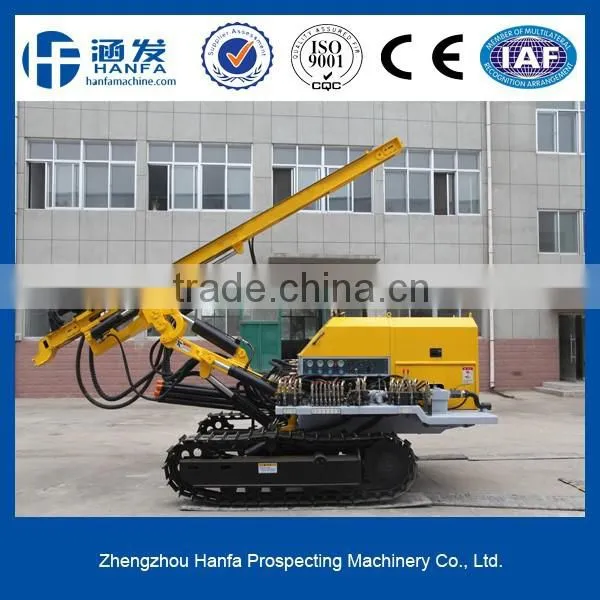

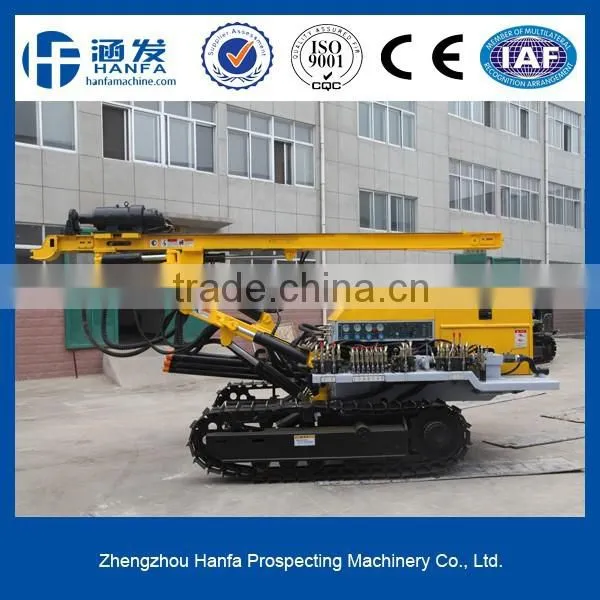

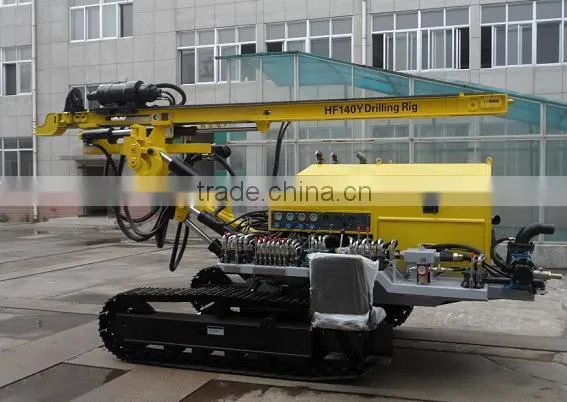

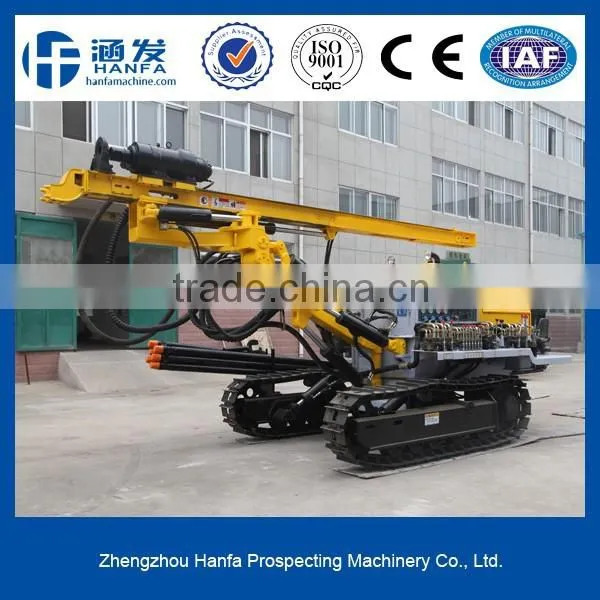

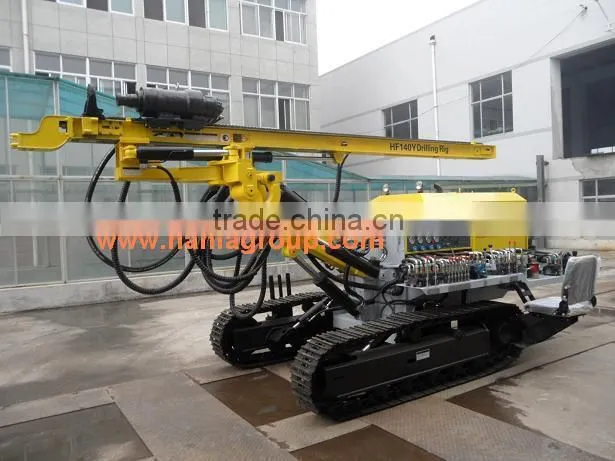

High air pressure! HF140Y mining blasting drilling machine
Applications & Features:
1. Strong drilling ability: 60meters, 115~140mm hole diameter.
2. Hydraulic control system, powerful for drilling and easy to operate.
3. Crawler type, convenient for moving and suitable for any place, especially muddy and rugged place.
4. Working with air compressor, high efficiency and low air consumption, drills about 2 meters per 5 minutes.
5. Widely used in open mining, road building, rock drilling, blasting holes.
HF140Y High Air Pressure DTH Drill Crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.
Rotary organizations to adopt a new dualmotor turret to make it to the open~air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.
Hole diameter 115~140mm, with a piercing, high efficiency, maintenance is simple, high reliability, is a mining, highway, water conservancy, power station construction and other construction ideal for drilling rig operations.
Technical Parameters:
Bore diameter |
115-140mm |
Bore depth |
60m |
Walk speed |
0-2.5kw/h |
For rock |
F=6-20 |
Air pressure |
1.05-2.46Mpa |
Air consumption |
10-20m³/min |
Once promotion |
3000mm |
Skid pitch |
Up and down total100° |
Skid swing angle |
Up and down total100° |
Boom swing angle |
Left and right total 70° |
Boom pitch |
Up and down total 60° |
Host power |
56Kw |
Rotation speed |
0-126/min |
Dimension(L*W*H) |
5270*1950*2300(mm) |
weight |
4800Kg |
Note:The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |

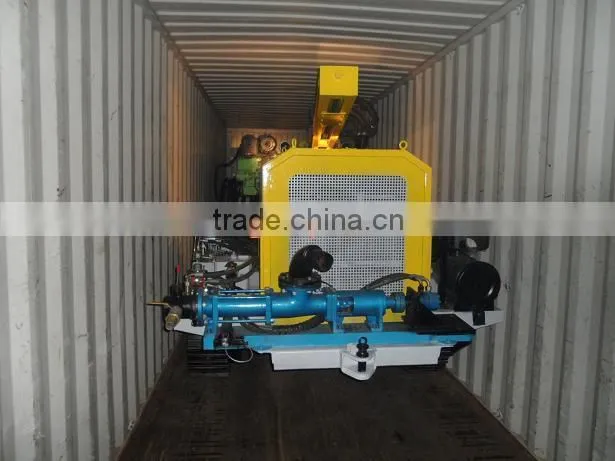

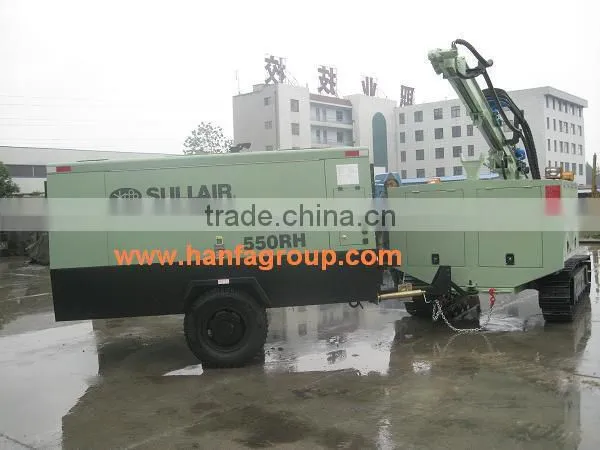

Delivery:

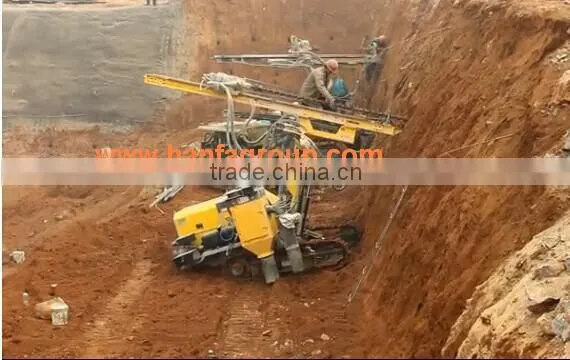

Working site:

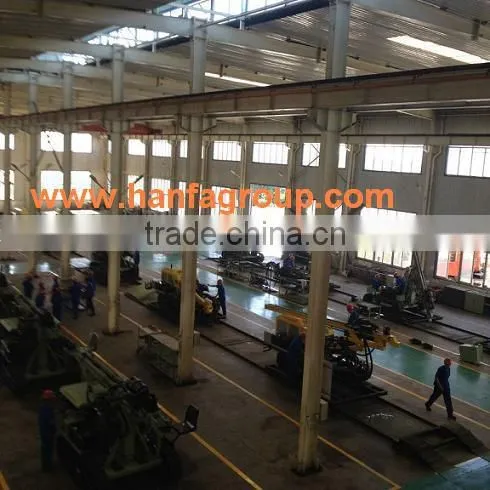

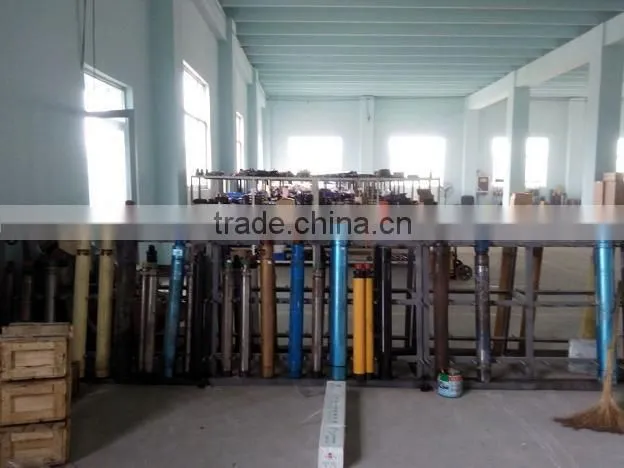

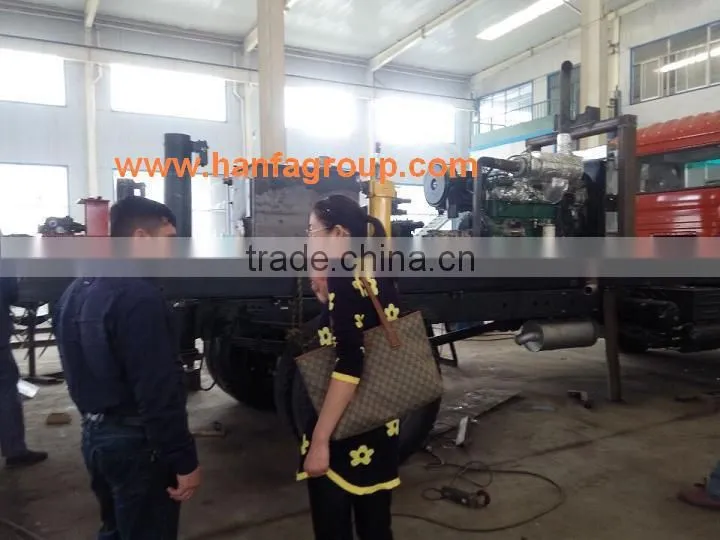

Workshop:

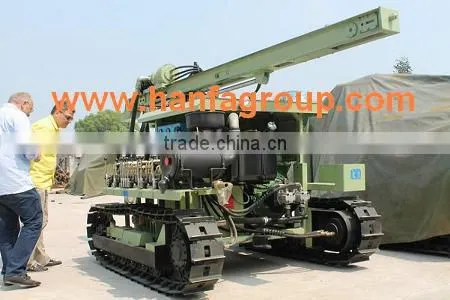

Customer visiting:
