Most portable and economic! HF130Y geothermal well drilling rigs for sale
Feature------ geothermal well drilling rig

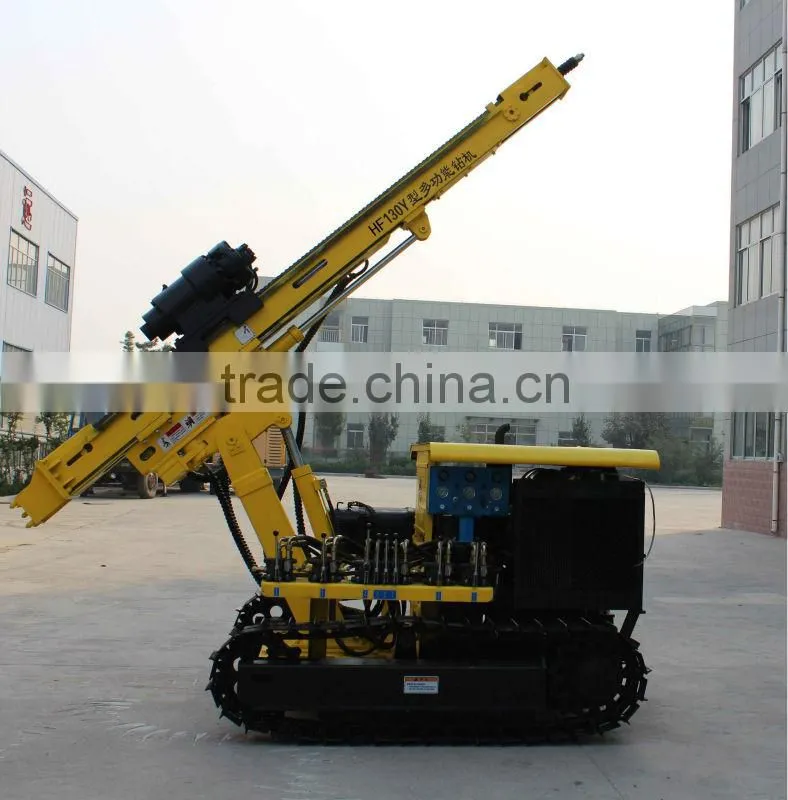

1.HF130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
2.The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
Technical data------ geothermal well drilling rig
Bore diameter(hammer) |
90-300mm |
Bore depth |
20-100m |
|
Air consumption |
10-26m³/min |
|
Air pressure |
0.7-1.6Mpa(medium)
1.6-2.46Mpa(high) |
Pipe diameter |
76mm/89mm |
For rock |
F=6-20 |
Bore diameter(screw) |
Max 400mm |
Bore depth |
0-30m |
Screw pipe diameter |
130-400mm |
Once promotion |
2000mm |
Skid pitch |
100° |
Swinging angle of skid |
Left and right total 40° |
Rotation speed |
0-70r/min |
Host power |
56Kw |
Climb ability |
35° |
Dimension(L*W*H) |
4460*1950*2460(mm) |
weight |
4360Kg |
Walk speed |
0-2.5km/h |
Package------ geothermal drilling rigs for sale
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
Communication with the overseas customers------ geothermal drilling rigs for sale
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
1.Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5.What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days
