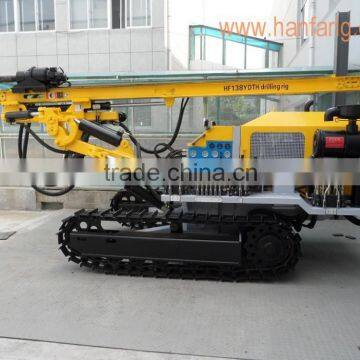

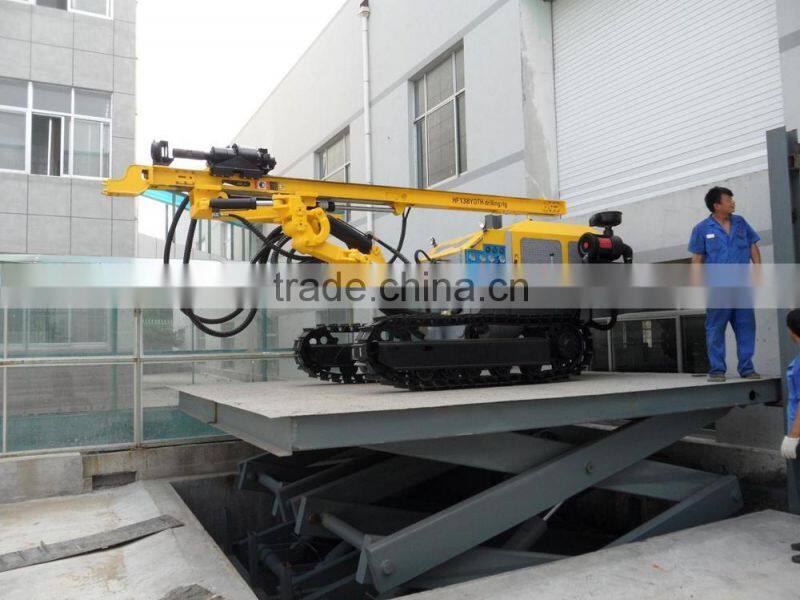

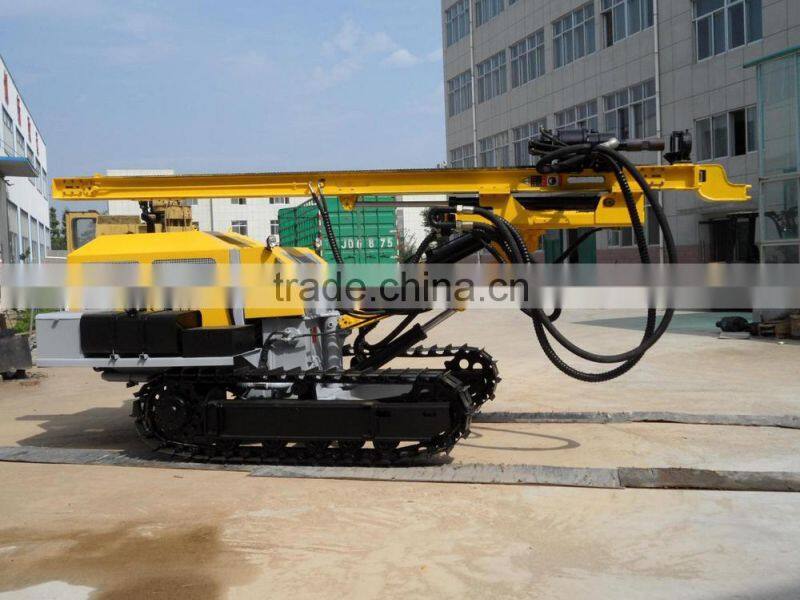

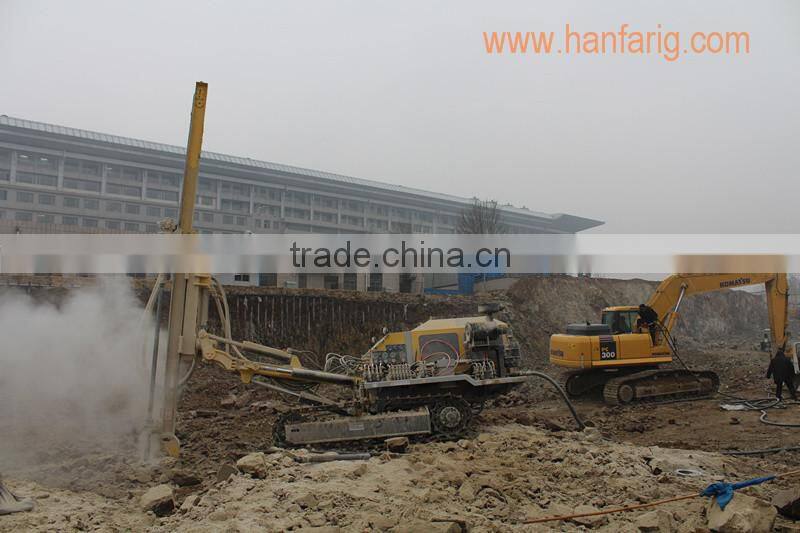

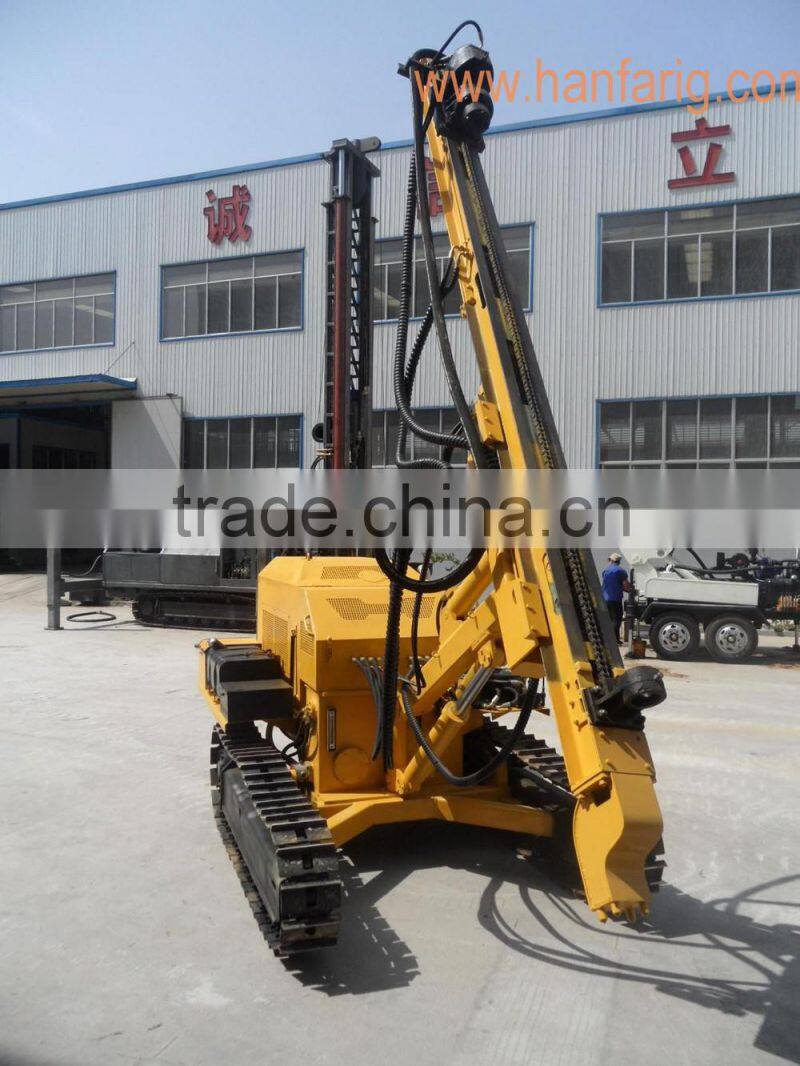

Anchoring Drill Rig With Angle

Name: Anchoring Drill Rig With Angle
Brand: HANFA Anchoring Drill Rig With Angle
SKU: 101806733
Availability: InStock

US$ 25,000 - 35,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao other ports are also available

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Henan, China

Brand Name HANFA Anchoring Drill Rig With Angle

Model Number HF138Y Anchoring Drill Rig With Angle

Usage Other, blast holes, and other DTH drilling

Power(W) 45kw

Dimension(L*W*H) 5200mm*1950mm*2300mm

Weight 4tons

Certification CE

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

HF138Y Anchoring Drill Rig With Angle

Main technical parameters of HF138Y
Wind pressure (Mpa)	0.7----1.6
Air consumption (m³/min)	10----15
Drilling diameter (mm)	80----130
Drilling depth (m)	horizontal 40m vertical 30m
Once promotion distance (mm)	3000
Drill pipe diameter (mm)	60
Skid compensation (mm)	900
Maximum lift force (N)	24800
Skid pitch (°)	up and down total 45
Swinging angle of skid (°)	Left 40, right 30
Boom swing angle (°)	Left 30, right 40
Boom Pitch (°)	up and down total 60
Grade ability (°)	30
Chassis ground clearance (mm)	260
Traveling speed (km/h)	0-2.5
Rotation speed (r/min)	0-110
Rotary torque (N.m)	2000
Power (Kw)	45
For rock (f)	6----20
Total Weight (kg)	4170
Dimension (L * W * H)	520019502300
