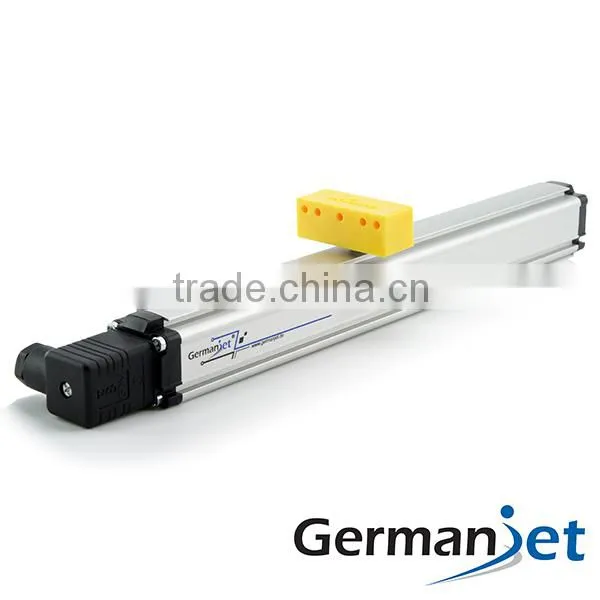

18 Series - Aluminium Profile
The 18 series non-contact absolute position transducer adopts the non-contact magnetostricitve measuring technology for precise, direct and absolute measurement. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited mechanical life expectancy. The non-contact (Floating) cursor provides exceptional ease of installation with a variety of available cursor position target.

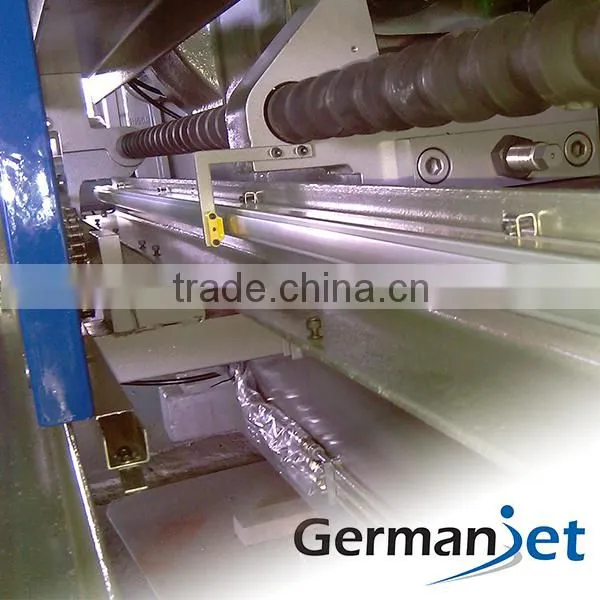

The high versatile profile housing (IP67, need to match a suitable connector) offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment. The 18 series is the most reliable and durable non-contact absolute position transducer among all.
| Order Code | 180 |
| Output | 0-10Vdc, 10-0Vdc dual-output. minimum load 5kΩ |
| Measurement Type | Linear displacement |
| Resolution | Infinite, restricted by output ripple |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Current Consumption | 50-140mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Repeatability | < ±0.005% of full scale |
| Non-Linearity | < ±0.02% of full scale (minimum ±90 μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP65 / IP67 (with connector) |
| Vibration Rating | 15g / 10-2000Hz / IEC standard 68-2-6 |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
