Factory Price Micropulse Long Wind Turbine Digital Linear Sensor
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
16 Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 Newest Accurate Long Wind Turbine EtherCAT Magnetostrictive TransmitterUS$ 300 - 1,000MOQ: 1 Piece -
High Quality Hydraulic Long Wind Turbine Current Magnetostrictive TransducerUS$ 200 - 700MOQ: 1 Piece
-
Classic Non Contact Profile Analog Level TransducerUS$ 300 - 1,000MOQ: 1 Piece
-
2015 Newest Non Contact Aluminum Analog Magnetostrictive TransducerUS$ 300 - 1,000MOQ: 1 Piece
-
Professional Accurate Profile Voltage Magnetostrictive TransmitterUS$ 300 - 1,000MOQ: 1 Piece
Type
Other, Sensor
Model Number
16 Series
Brand Name
Germanjet
Place of Origin
Germany

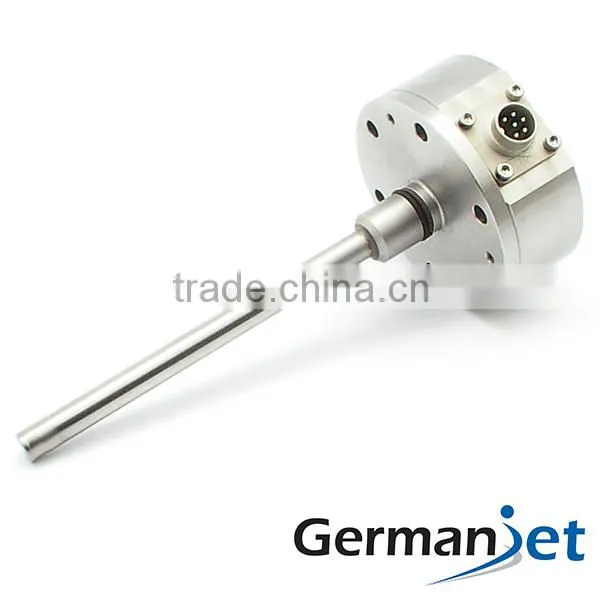

16 Series - Hydraulic Rod
16 series is design for hydraulic cylinder with limited head space or clevis rod ends hydraulic cylinder. Sensing rod is made by stainless steel which installed inside the hydraulic cylinder. It has a wide variety of signal output selection included analog voltage, current, and SSI. It is a perfect combination with hydraulic valve to form a close-loop servo hydraulic system.
It adopts the non-contact magnet-rostrictive measuring technology for precise, accurate, and absolute measurement. The non-contact feature provides exceptional ease of installation and guarantees almost unlimited mechanical life expectancy. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.

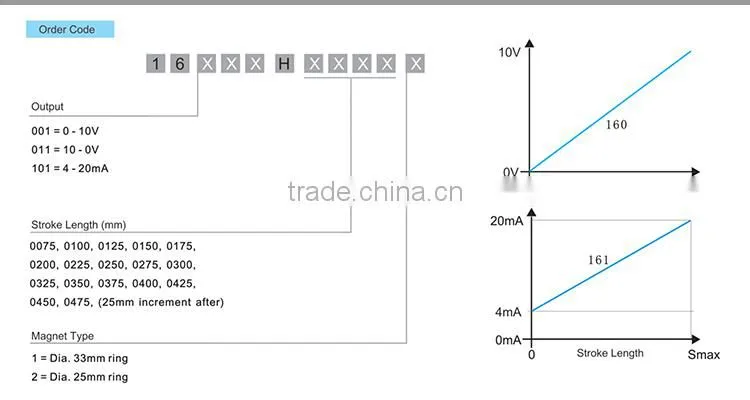

| Order Code | 160 |
| Output | Voltage |
| Measurement Type | Linear displacement |
| Resolution | 16 Bit D/A, 0.0015% (minimum 1um) |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Pressure Rating | 350 bar / 600 bar peak |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Vibration Rating | 15g / 10-2000Hz / IEC standard 68-2-6 15g / 10-2000Hz / IEC standard 68-2-6 |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
