hot selling ! HF130Y small screw drilling rig for solar photovoltaic pile

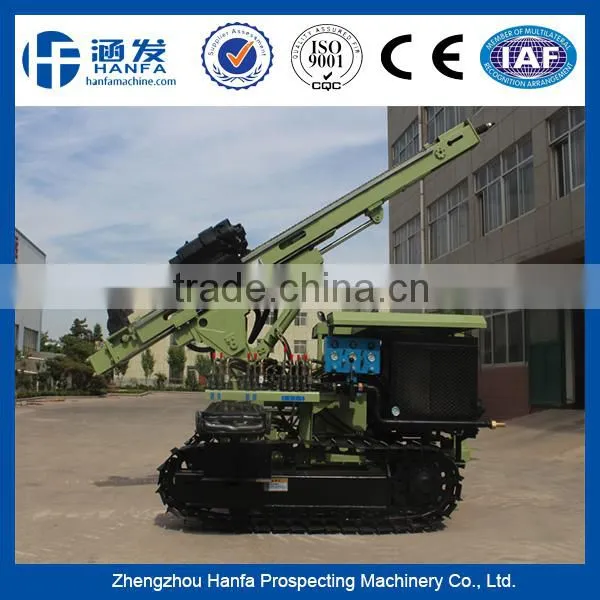

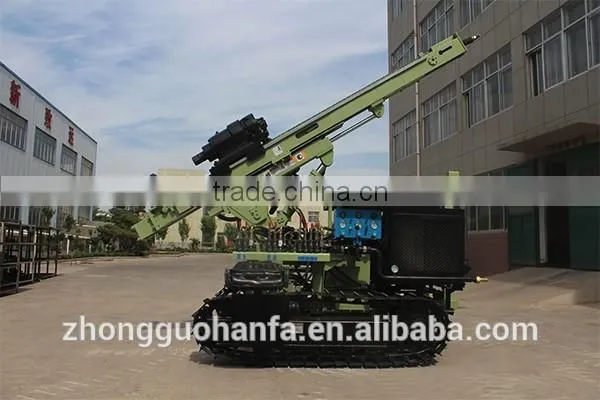

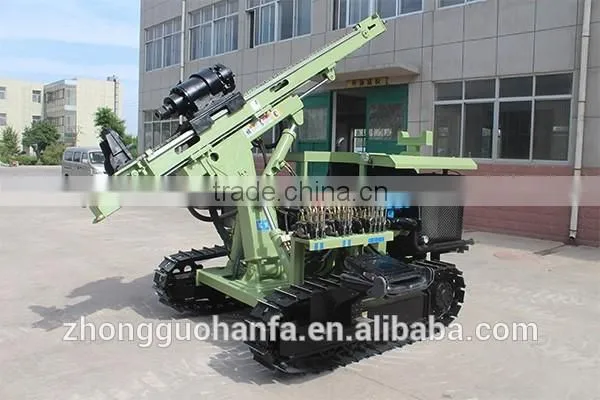

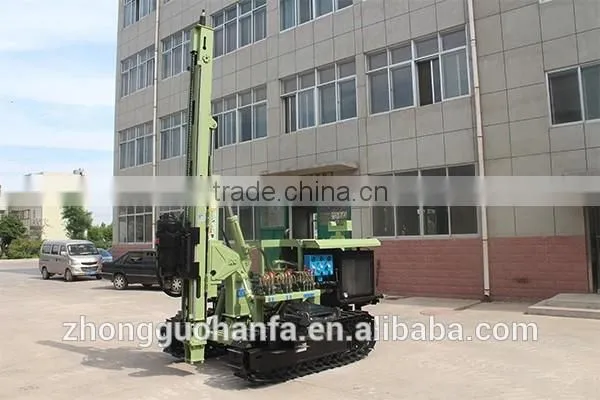

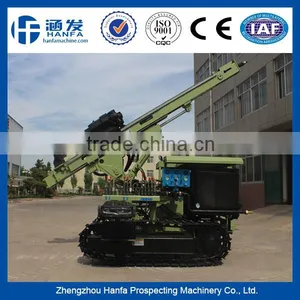

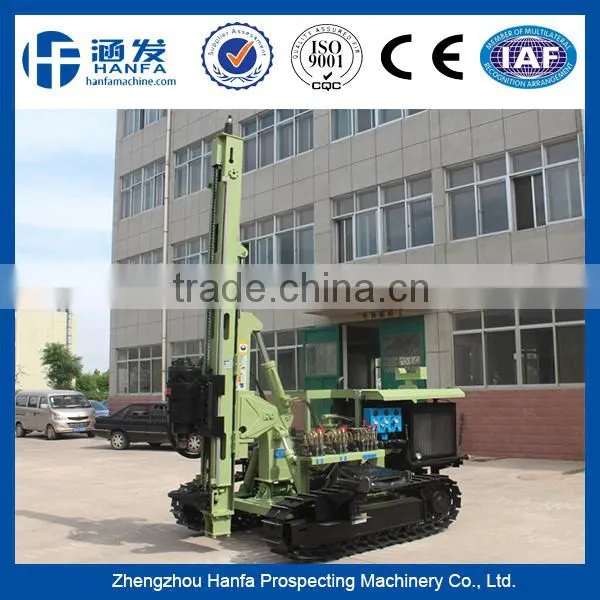

1.HF130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency.
2.The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.

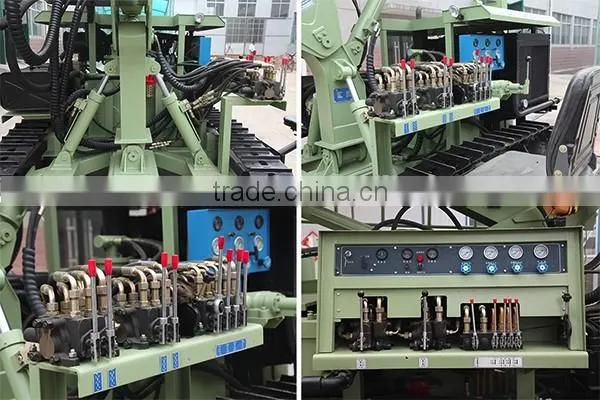

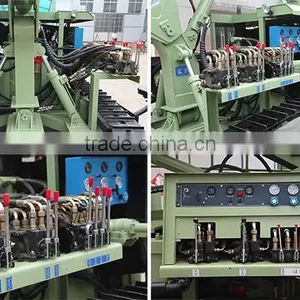

operating platform:

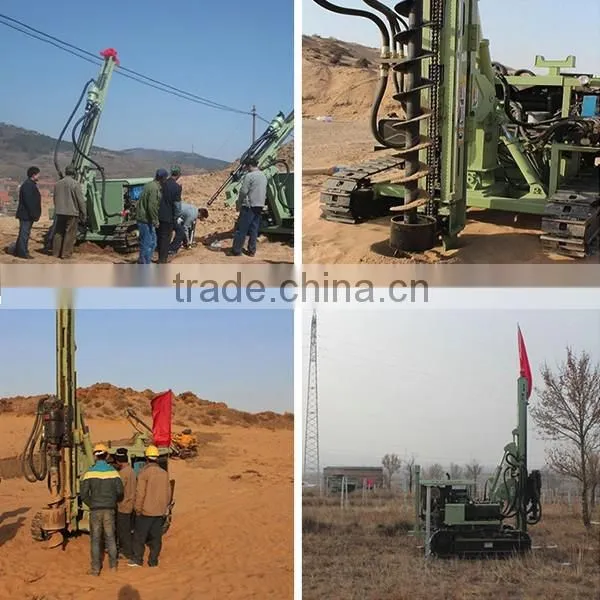

Working Site:
Bore diameter(hammer) |
90-300mm |
Bore depth |
20-100m |
Air consumption |
10-26m³/min |
|
Air pressure |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
|
Pipe diameter |
76mm/89mm |
For rock |
F=6-20 |
Bore diameter(screw) |
Max 400mm |
Bore depth |
0-30m |
Screw pipe diameter |
130-400mm |
Once promotion |
2000mm |
Skid pitch |
100° |
Swinging angle of skid |
Left and right total 40° |
Rotation speed |
0-70r/min |
Host power |
56Kw |
Climb ability |
35° |
Dimension(L*W*H) |
4460*1950*2460(mm) |
weight |
4360Kg |
Walk speed |
0-2.5km/h |
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
