Special Price Temposonics Long Linear Potentiometer Replacement Start Stop Level Transducer
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
19H Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Accurate Long Linear Potentiometer Replacement DeviceNet Position TransducerUS$ 300 - 1,000MOQ: 1 Piece -
Hot Sale Micropulse Long Linear Potentiometer Replacement Current Magnetostrictive TransducerUS$ 300 - 1,000MOQ: 1 Piece
-
Factory Price Reliable Long Linear Potentiometer Replacement Voltage Level TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
Professional Reliable Long Linear Potentiometer Replacement Voltage Magnetostrictive SensorUS$ 300 - 1,000MOQ: 1 Piece
-
Factory Price Advance Long Linear Potentiometer Replacement Profibus Position TransducerUS$ 300 - 1,000MOQ: 1 Piece
Type
Other, Sensor
Model Number
19H Series
Brand Name
Germanjet
Place of Origin
Germany

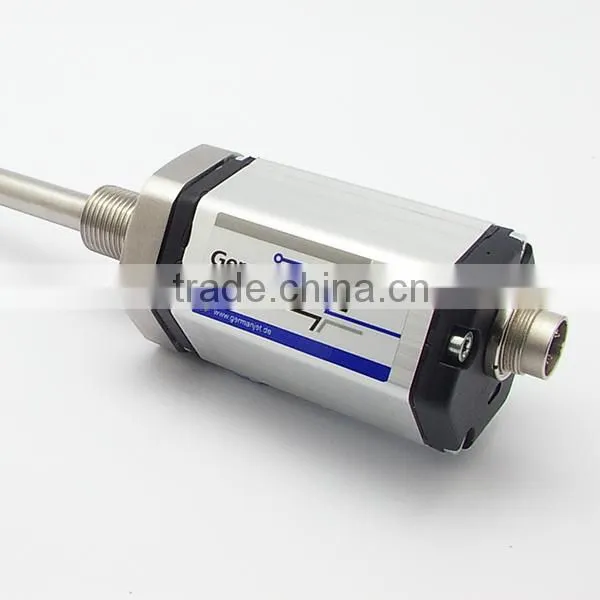

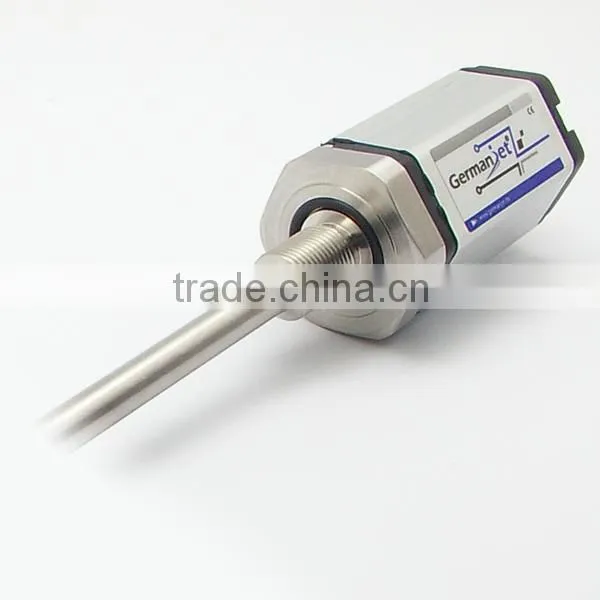

H model - Hydraulic Rod

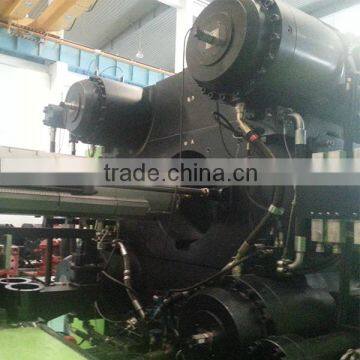

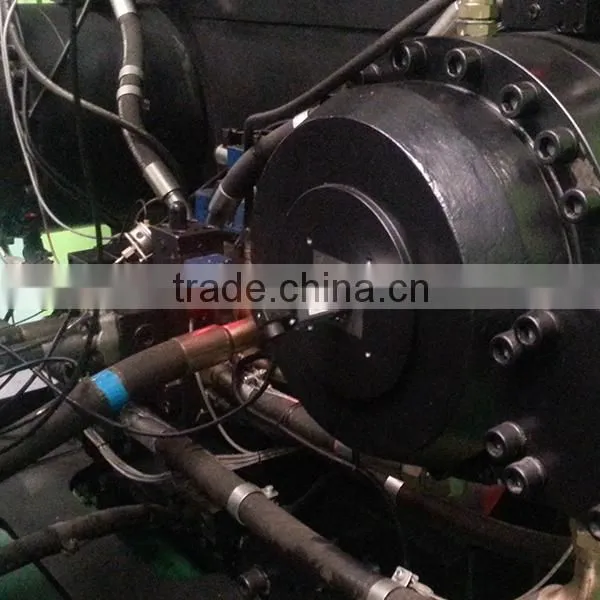

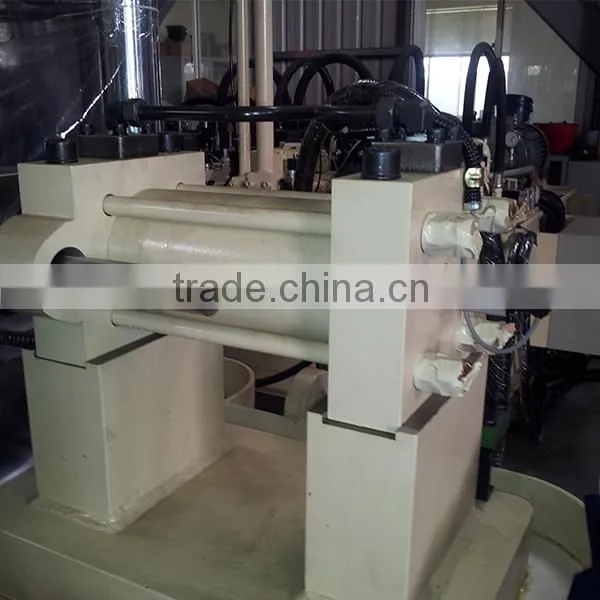

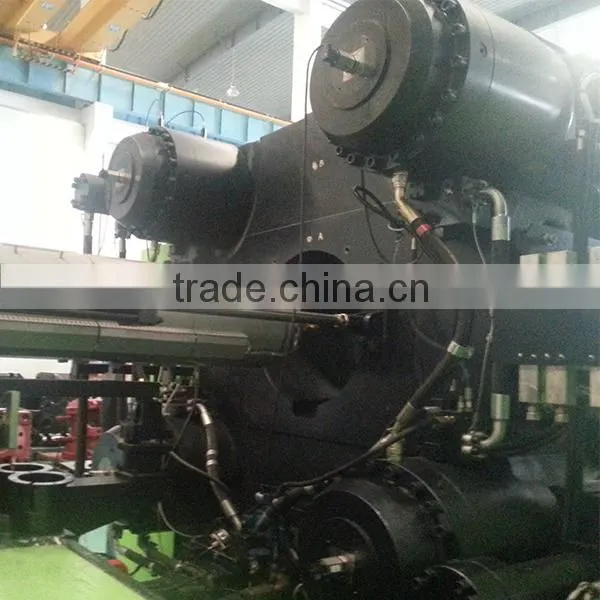

H model is designed for hydraulic cylinder. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily; Hydraulic fluid doesn't need to be withdrawn when doing sensor calibration or replacement. This design greatly reduces the down time and improves efficiency.

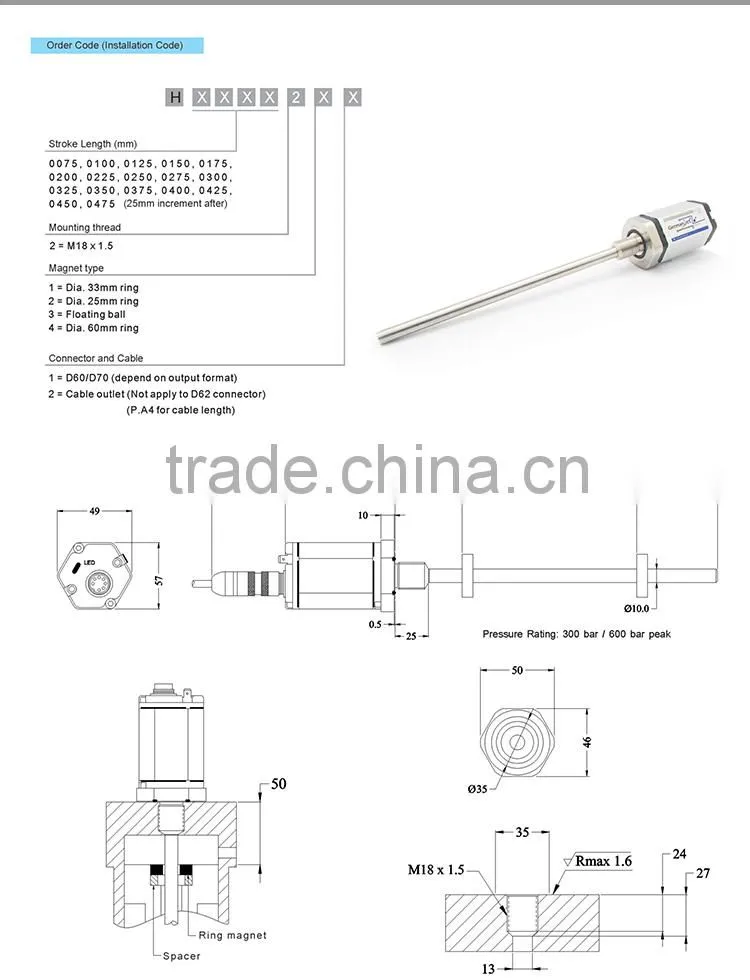

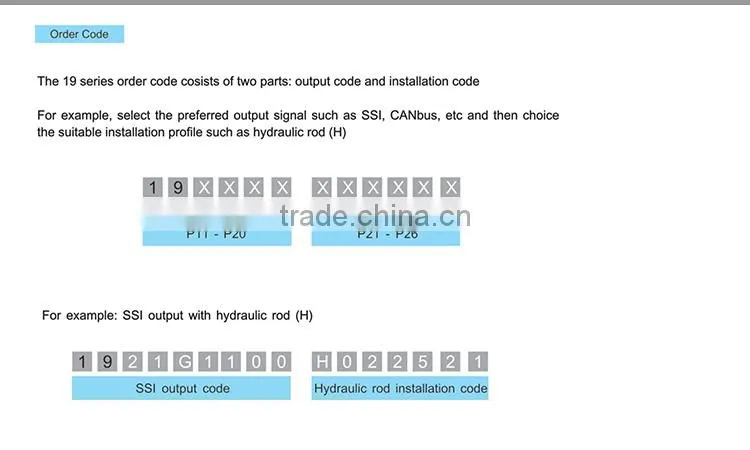

| Order Code | 190 |
| Output | Voltage |
| Measurement Type | Linear displacement |

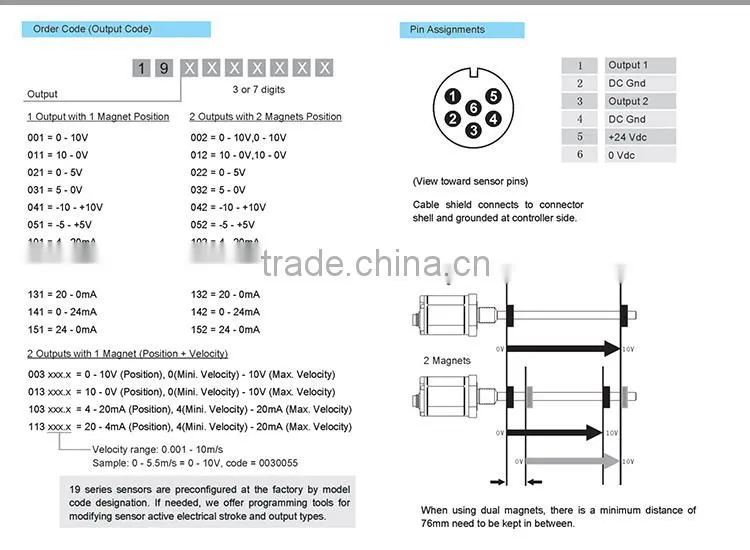

| Measured Variables | For dual magnets, kept minimum distance of 76mm in between |
| Resolution | 16 Bit D/A, 0.0015% (minimum 1um) |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
