Professional Reliable Long Linear Potentiometer Replacement Voltage Magnetostrictive Sensor
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
19P Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price Advance Long Linear Potentiometer Replacement Profibus Position TransducerUS$ 300 - 1,000MOQ: 1 Piece -
Professional Flexible Long Linear Potentiometer Replacement Analog Linear SensorUS$ 100 - 500MOQ: 1 Piece
-
Specialized Professional Long Linear Potentiometer Replacement Profibus Level SensorUS$ 300 - 1,000MOQ: 1 Piece
-
Linear Position Sensor 0-10V Voltage Magnetostrictive Absolute Linear Position SensorUS$ 100 - 500MOQ: 1 Piece
-
Promotional Absolute Long Linear Potentiometer Replacement Current Linear TransducerUS$ 300 - 1,000MOQ: 1 Piece
Type
Other, Sensor
Model Number
19P Series
Brand Name
Germanjet
Place of Origin
Germany

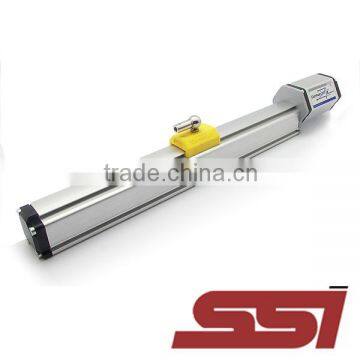

P model - Aluminium Profile
P model is designed for machine equipment. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment.
| Order Code | 192 |
| Output | SSI |
| Measurement Type | Linear displacement |
| Data Format | Binary or Grey |
| Data Length | 8 - 32 bits |
Data Speed |
Cable Length : <3 <50 <100 <200 <400 m |
Baud rate : 1000 <400 <300 <200 <100 kBd |
|
| Update Time | Measuring Length : 300 750 1000 2000 5000 mm |
| Measurement/sec : 3.7 3.0 2.3 1.2 0.5 kHz | |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
