Wholesale Non Contact Long Linear Potentiometer Replacement CANopen Magnetostrictive Transducer
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Germanjet
Model Number:
15 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Specialized Reliable Long Linear Potentiometer Replacement Current Position TransducerUS$ 100 - 300MOQ: 1 Piece -
High Quality Accurate Long Linear Potentiometer Replacement Digital Linear TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
Specialized Long Linear Potentiometer Replacement P-interface Level TransducerUS$ 200 - 700MOQ: 1 Piece
-
ClassicHydraulic Long Linear Potentiometer Replacement Analog Magnetostrictive TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
Special Price Temposonics Long Linear Potentiometer Replacement Start Stop Level TransducerUS$ 300 - 1,000MOQ: 1 Piece
Place of Origin
Germany
Brand Name
Germanjet
Model Number
15 series
Usage
Position Sensor
Theory
Other, magnetostrictive
Output
Other, Analog Sensor, 4 - 20mA
15 Series - level Sensing
15 series is the safe and reliable approach to level application in hazardous location. It is designed according to the explosion protection regulation. (GB3836.1-2000, Electrical Apparatus for Explosive Gas Atmospheres Part1:Genersal Requirements; GB3836.2-2000, Electrical Apparatus for Explosive Gas Atmospheres Part2: Flameproof enclosure "d")

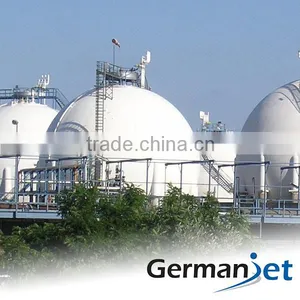

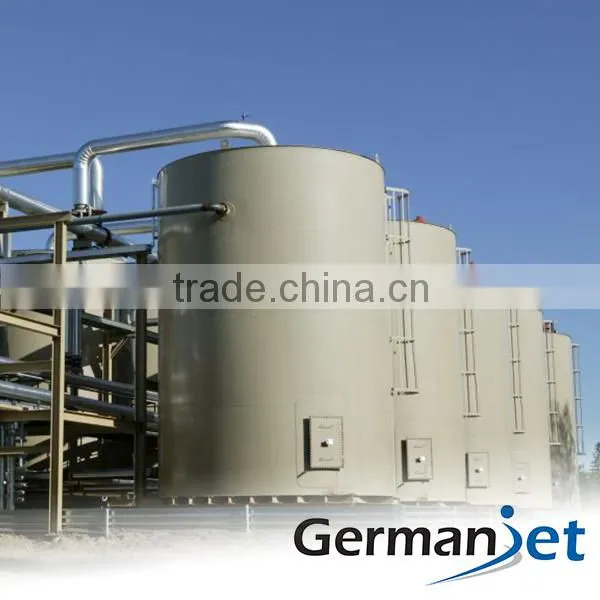

It adopts the non-contact magnet-rostrictive to provide feedback of fluid level and multi-interface level of a storage tank or process vessel. The non-contact feature provides exceptional ease of installation and guarantees almost unlimited mechanical life expectancy. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.
| Order Code | 152 |
| Output | 4 - 20mA Current |
| Measurement Type | Linear displacement |
| Resolution | 16 Bit D/A, 0.0015% (minimum 1um) |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Pressure Rating | 350 bar / 600 bar peak |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Vibration Rating | 15g / 10-2000Hz / IEC standard 68-2-6 15g / 10-2000Hz / IEC standard 68-2-6 |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
