HF130Y Hydraulic Crawler Drilling Machine

Name: HF130Y Hydraulic Crawler Drilling Machine
Brand: HF hydraulic crawler drilling machine
SKU: 101805833
Availability: InStock

US$ 20,500 - 36,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, rotary drilling rig or DTH drilling rig

Power Type:

Diesel

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, rotary drilling rig or DTH drilling rig

Power Type Diesel

Place of Origin Henan, China

Brand Name HF hydraulic crawler drilling machine

Model Number HF130Y hydraulic crawler drilling machine

Usage Water Well

Voltage work with diesel engine

Power(W) 56KW

Dimension(L*W*H) 4460*1950*2460mm

Weight 4360kg

Certification ISO, CE

Warranty one year for the main machine

After-sales Service Provided Engineers available to service machinery overseas

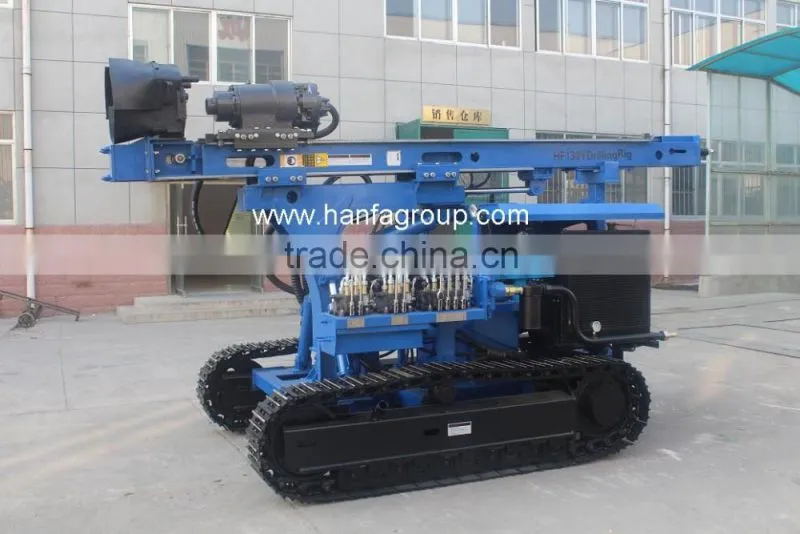

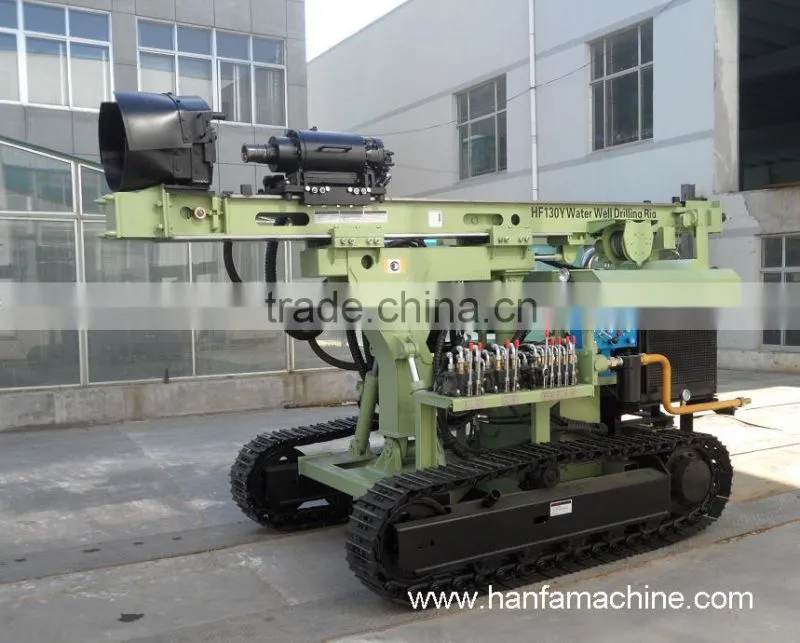

HF130Y hydraulic crawler drilling machine

Brief introduction

1. water well drilling: max. depth 100m, hole diameter 90~300mm;

2. pile drilling: max. depth 30m, max. hole diameter 400mm;

3. crawler mounted, has good climbing ability, suitable for rugged ground operations;

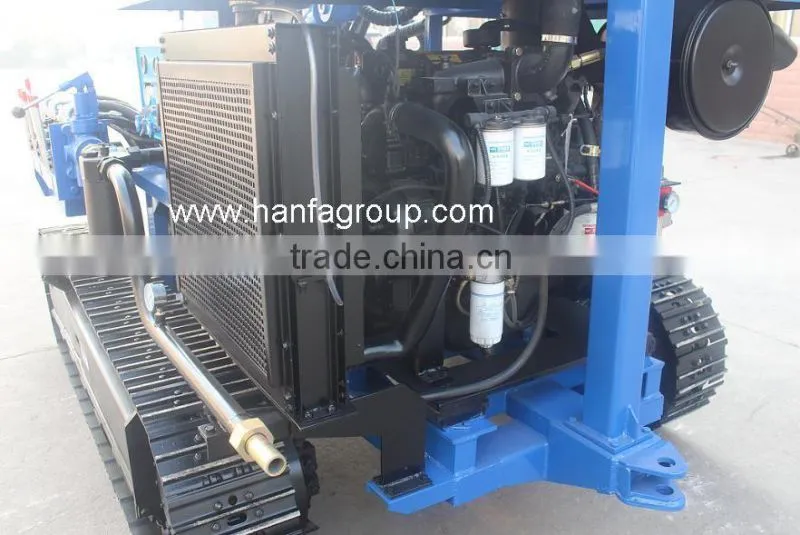

4. 56KW diesel engine supply power, ensure the machine has big enough power;

5. full hydraulic, simple to operate, 2 persons can operate it well;

Technical parameters

Bore diameter(hammer)	90-300mm
Bore depth	20-100m
Air consumption	10-26m³/min
Air pressure	0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Pipe diameter	76mm/89mm
For rock	F=6-20
Bore diameter(screw)	Max 400mm
Bore depth	0-30m
Screw pipe diameter	130-400mm
Once promotion	2000mm
Skid pitch	100°
Swinging angle of skid	Left and right total 40°
Rotation speed	0-70r/min
Host power	56KW
Climb ability	35°
Dimension(LWH)	446019502460(mm)
Weight	4360Kg
Walk speed	0-2.5km/h
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
