HF130Y Multi-functional Hydraulic Drilling Rig

HF130Y Multi-functional Hydraulic Drilling Rig thumbnail-1

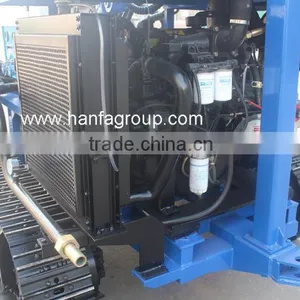

HF130Y Multi-functional Hydraulic Drilling Rig thumbnail-2
HF130Y Multi-functional Hydraulic Drilling Rig thumbnail-3
HF130Y Multi-functional Hydraulic Drilling Rig thumbnail-4
HF130Y Multi-functional Hydraulic Drilling Rig thumbnail-5
HF130Y Multi-functional Hydraulic Drilling Rig photo-1

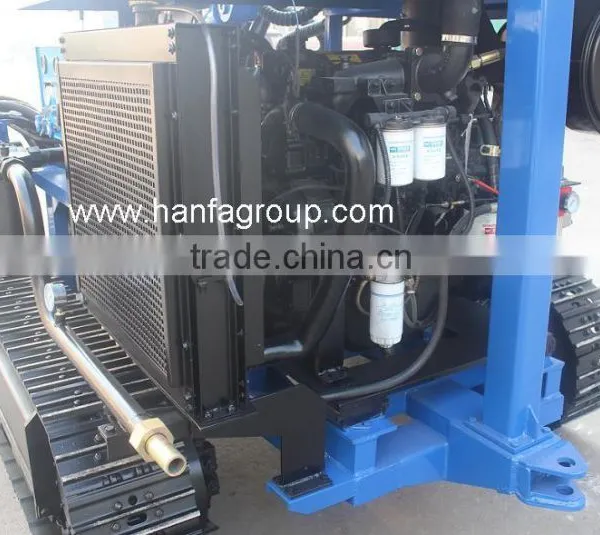

HF130Y Multi-functional Hydraulic Drilling Rig photo-2
HF130Y Multi-functional Hydraulic Drilling Rig photo-3
HF130Y Multi-functional Hydraulic Drilling Rig photo-4
HF130Y Multi-functional Hydraulic Drilling Rig photo-5
US$ 27,500 - 35,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, rotary drilling rig, DTH drilling rig, auger drilling rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, rotary drilling rig, DTH drilling rig, auger drilling rig
Power Type Diesel
Place of Origin Henan, China
Brand Name HF multi-functional hydraulic drilling rig
Model Number HF130Y multi-functional hydraulic drilling rig
Usage Other, water well drilling, DTH drilling or auger drilling
Voltage work with diesel engine
Power(W) 56Kw
Dimension(L*W*H) 4460*1950*2460(mm)
Weight 4360Kg
Certification ISO, CE
Warranty one year for the main machine
After-sales Service Provided Engineers available to service machinery overseas

HF130Y multi-functional hydraulic drilling rig



Product Description

1. water well drilling: max. depth 100m, hole diameter 90~300mm;

2. pile drilling: max. depth 30m, max. hole diameter 400mm;
3. crawler mounted, has good climbing ability, suitable for rugged ground operations;
4. when do water well drilling, it can work with air compressor or mud pump to complete drilling operation;
5. full hydraulic, simple to operate, 2 persons can operate it well;











Technical Data



Bore diameter(hammer)

90-300mm

Bore depth

20-100m

Air consumption

10-26m³/min



Air pressure

0.7-1.6Mpa(medium)

1.6-2.46Mpa(high)

Pipe diameter

76mm/89mm

For rock

F=6-20

Bore diameter(screw)

Max 400mm

Bore depth

0-30m

Screw pipe diameter

130-400mm

Once promotion

2000mm

Skid pitch

100°

Swinging angle of skid

Left and right total 40°

Rotation speed

0-70r/min

Host power

56Kw

Climb ability

35°

Dimension(L*W*H)

4460*1950*2460(mm)

weight

4360Kg

Walk speed

0-2.5km/h





Main Features

  1.new operating platform, operation easier





























































2.Walking machine adopt a large torque  agencies to ensure that a strong driving force for the output.

HF130Y multi-functional hydraulic drilling rig







































3.Strong Rotating power , stable output torque, low failure rate.





Packaging & Shipping

 HF130Y multi-functional hydraulic drilling rig





On overseas trade fair

HF130Y multi-functional hydraulic drilling rig

Our Services

HF130Y multi-functional hydraulic drilling rig
