Non Contact High Accuracy Machine Equipment 0-10VHot Sale Long Linear Poteniometer Replacement Voltage Position Transducer
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
19P Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Reliable Long Wind Turbo CANbus Position SensorUS$ 300 - 1,000MOQ: 1 Piece -
2015 Newest Advance Long Wind Turbo P-interface Position SensorUS$ 300 - 1,000MOQ: 1 Piece
-
Factory Price Non Contact Long Linear Poteniometer Replacement Voltage Linear TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
High Quality Reliable Long Wind Turbo CANopen Level TransducerUS$ 300 - 1,000MOQ: 1 Piece
-
ClassicAbsolute Long Linear Poteniometer Replacement Start Stop Position SensorUS$ 200 - 700MOQ: 1 Piece
Type
Other, Sensor
Model Number
19P Series
Brand Name
Germanjet
Place of Origin
Germany
P model - Aluminium Profile

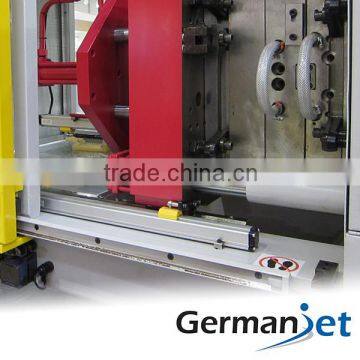

P model is designed for machine equipment. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment.
| Order Code | 190 |
| Output | Voltage |
| Measurement Type | Linear displacement |

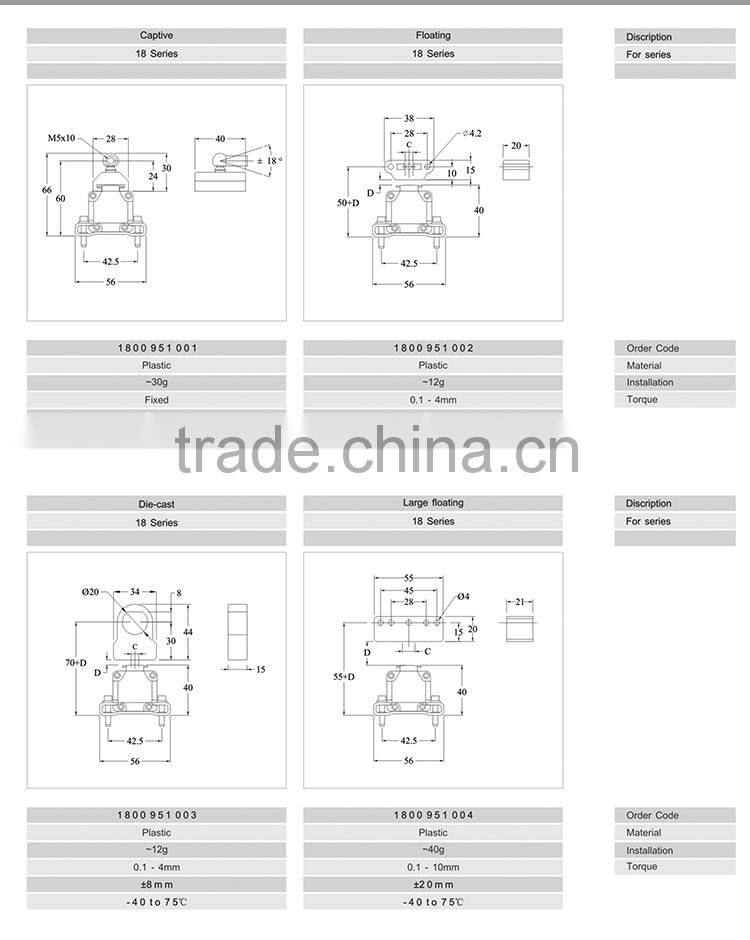

| Measured Variables | For dual magnets, kept minimum distance of 76mm in between |
| Resolution | 16 Bit D/A, 0.0015% (minimum 1um) |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
