High Quality Reliable Long Wind Turbo CANopen Level Transducer
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
19H Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ClassicAbsolute Long Linear Poteniometer Replacement Start Stop Position SensorUS$ 200 - 700MOQ: 1 Piece -
Lowest Price Hydraulic Long Wind Turbo Profibus Linear TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
Special Price Professional Long Wind Turbo Digital Position TransducerUS$ 200 - 700MOQ: 1 Piece
-
Eco Friendly Professional Long Wind Turbo SSI Position TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
Factory Price Ruggd Long Wind Turbo Digital Position TransmitterUS$ 300 - 1,000MOQ: 1 Piece
Type
Other, Sensor
Model Number
19H Series
Brand Name
Germanjet
Place of Origin
Germany
H model - Hydraulic Rod

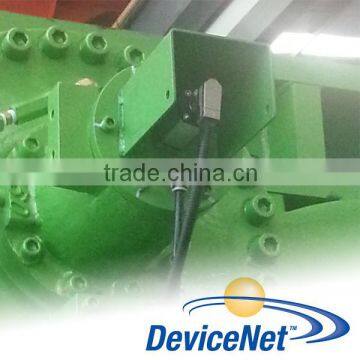

H model is designed for hydraulic cylinder. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily; Hydraulic fluid doesn't need to be withdrawn when doing sensor calibration or replacement. This design greatly reduces the down time and improves efficiency.
| Order Code | 196 |
| Output | DeviceNet |
| Measurement Type | Linear displacement |
| Data Protocol | DeviceNet 2.0 Version |
| Output Signal | CAN FieldBus System ISO 11898 |
Baud Rate |
Baud rate : 500 250 125 Kbit/s |
Cable length : <100 <250 <500 m |
|
| Resolution | 2μm or 5μm |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
