superior quality three cylinders mud pump,easy operation,can deliver promptly

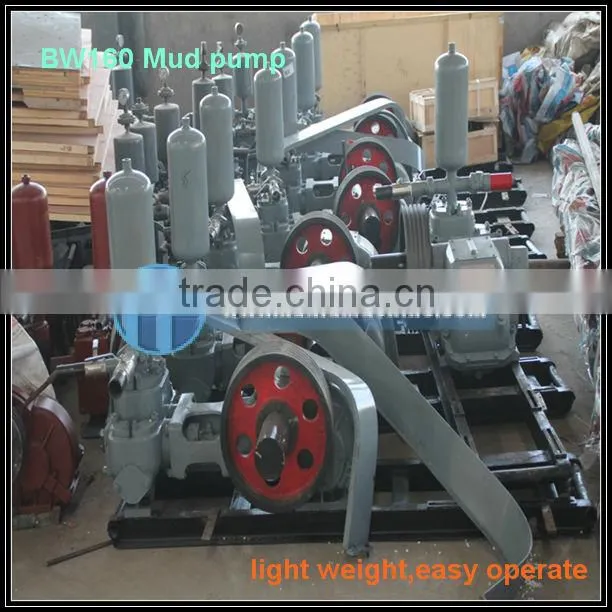

BW160 Mud Pump
The BW-160 mud pump is a Horizontal single urn twin-action pump, It is mainly used to supply flushing fluid to the drilling well in engineering drill's bedrock drilling or exploratory drilling.
it is small volume, light weight, easy operate and repair;
Type |
Horizontal single urn twin-action |
Liner Diameter |
95 mm |
Stroke |
90 mm |
Reciprocate Times |
147 times/minute |
Displacement |
160 L/min |
Pressure |
1.3 Mpa |
Input Power |
5.5 KW |
Water inlet caliber |
51 mm |
Water to exit caliber |
32 mm |
Suction height |
2.5m |
D-shaped belts (B*2) |
355 mm |
Input Speed |
951 rotations/min |
Weight |
130 kg |
Dimensions |
1110*725*965 mm |
BW200 Mud Pump
BW-200 mud pump is horizontal double-acting reciprocating duplex piston pump.It is mainly used for feeding flushing fluid to feel drilling in
core drilling process. It is light weight,compact and is more suitable used in geological prospect.
Style |
Horizontal |
Type |
Double-acting |
Number of cylinder |
Two |
Cylinder liner diameter (mm) |
80 65 |
Stroke(mm) |
85 |
Reciprocate number (number/min) |
145 |
Displacement(L/min) |
200 125 |
Pressure(MPa) |
4 6 |
Speed(r/min) |
530 |
Pitch of belt pulley(mm) |
385 |
Belt pulley |
B× 5 |
Power(as per client's request) |
295 type-diesel or motor |
Suction pipe diameter(mm) |
65 |
Scupper pipe diameter(mm) |
37 |
Dimensions(L×W×H,mm) |
1050*630*820 |
Weight(kg) |
300 |

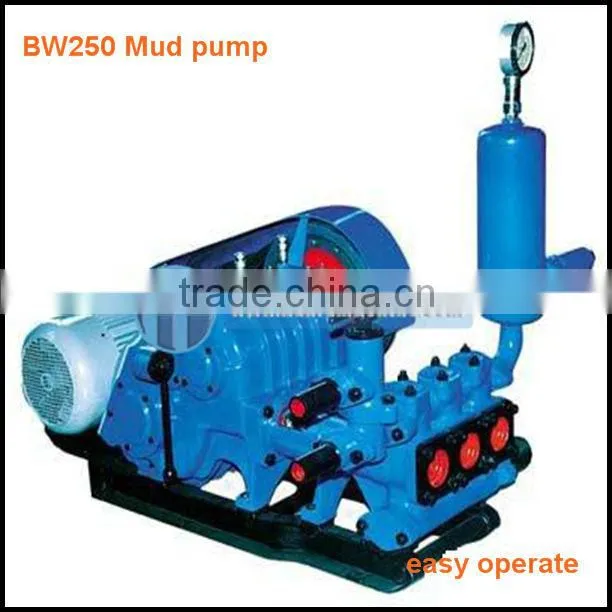

BW250 Mud Pump
Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engineer.It can
match 1500m drilling machine at the deepest.
This pump is power saving, easy to operate, high quality and durable, easy to disassemble
and relocate.
Stroke |
100mm |
|||||||
Liner Diameter |
80mm |
65mm |
||||||
Gears |
I |
II |
III |
IV |
I |
II |
III |
IV |
Reciprocate Times(Times/Minute) |
200 |
116 |
72 |
42 |
200 |
116 |
72 |
42 |
Max displacement(liter/minute) |
250 |
145 |
90 |
52 |
166 |
96 |
60 |
35 |
Pressure (MPa) |
2.5 |
4.5 |
6.0 |
6.0 |
4.0 |
6.0 |
7.0 |
7.0 |
Dimension rate |
85% |
|||||||
Power |
15Kw |
|||||||
Triangular section belts |
B× 5 410mm |
|||||||
Input speed |
500r/min |
|||||||
Suction water height |
2.5m |
|||||||
Suction Pipe Diameter |
75mm |
|||||||
Discharge Pipe Diameter |
50mm |
|||||||
Dimensions |
1100× 995× 650mm |
|||||||
Weight |
760KG |
|||||||

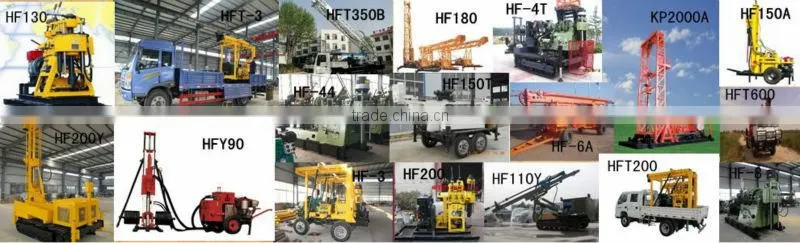

Working site

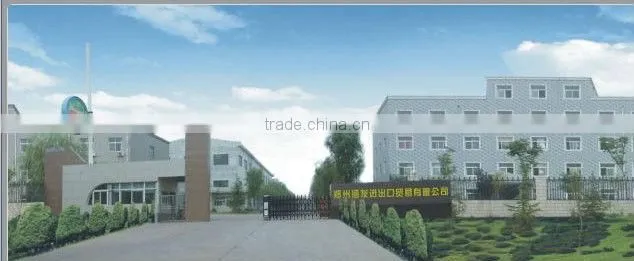

About us
