Factory Price Hydraulic Profile DeviceNet Magnetostrictive Transmitter
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
19F Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non Contact High Accuracy Long Flexible 0-10V Voltage Absolute Position Measuring Magnetostrictive Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece -
Specialized Professional Rod Profibus Level TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
Hot Sale Flexible Aluminum SSI Level SensorUS$ 300 - 1,000MOQ: 1 Piece
-
Non Contact High Accuracy Machine Equipment Absolute Position Measurment Magnetostrictive DeviceNet Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
-
Non Contact High Accuracy Mobile Cylinder 0-10V Voltage Absolute Position Measuring Magnetostrictive Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
Type
Other, Sensor
Model Number
19F Series
Brand Name
Germanjet
Place of Origin
Germany

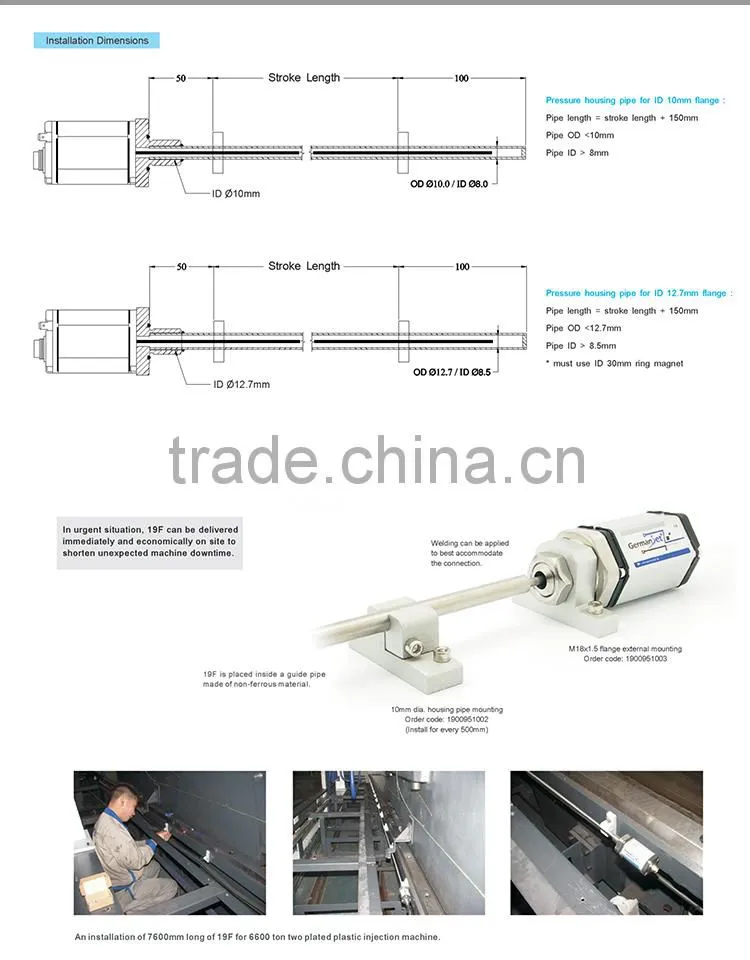

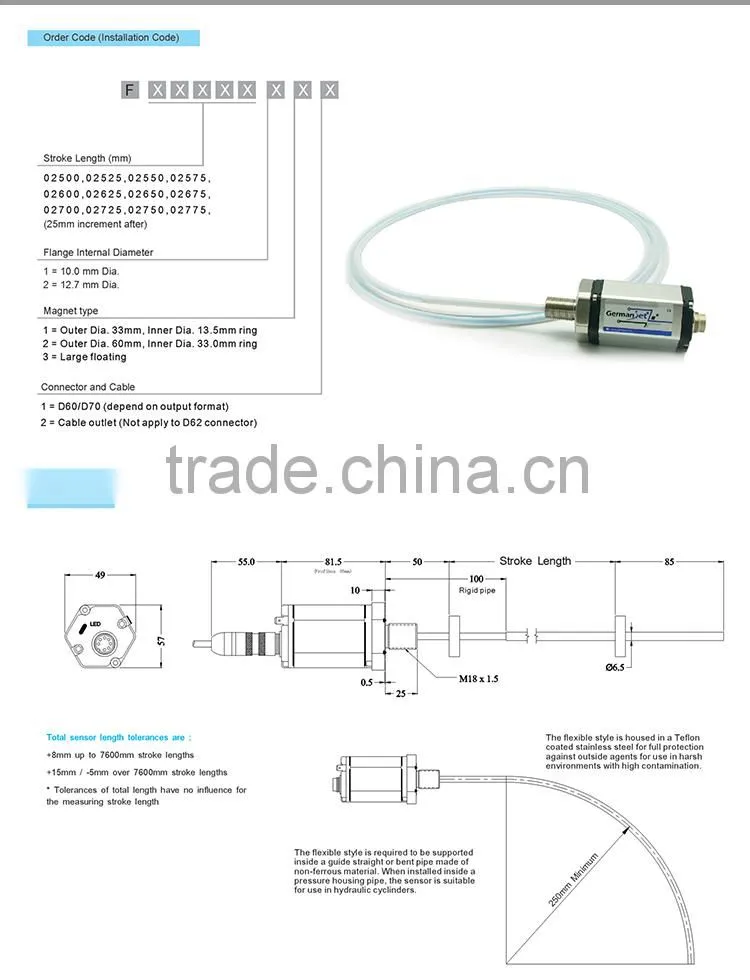

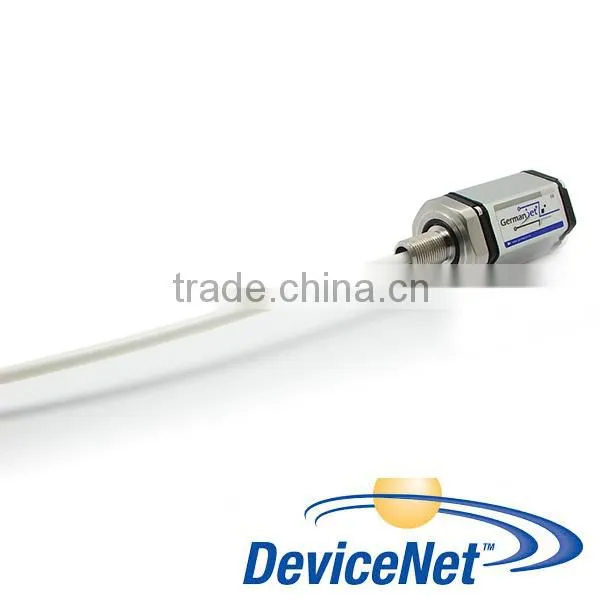

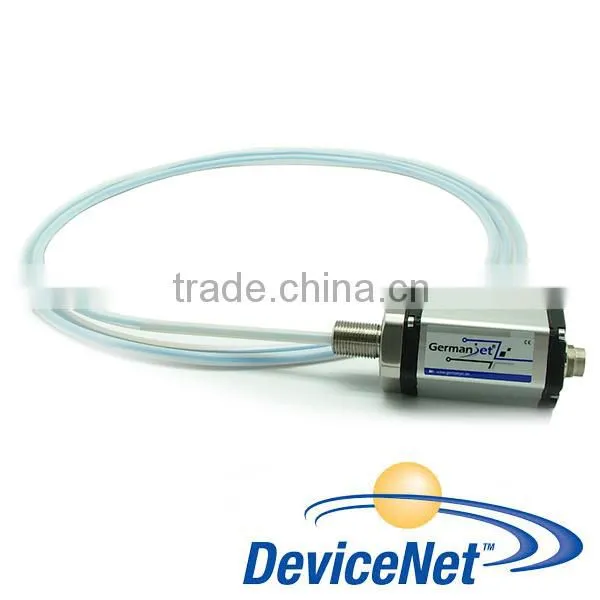

F model - Flex Sensor Housing
F model is design for very long stroke lengths and linear measurements on an arc. Standard stroke length begins from 2500mm up to 10 meters. And longer lengths are available for special applications. The F model is available with all 19 series outputs including analog, serial digital and fieldbus interfaces.
| Order Code | 190 |
| Output | Voltage |
| Measurement Type | Linear displacement |
| Measured Variables | For dual magnets, kept minimum distance of 76mm in between |
| Resolution | 16 Bit D/A, 0.0015% (minimum 1um) |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
