Specialized Professional Rod Profibus Level Transmitter
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
19D Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Flexible Aluminum SSI Level SensorUS$ 300 - 1,000MOQ: 1 Piece -
Non Contact High Accuracy Machine Equipment Absolute Position Measurment Magnetostrictive DeviceNet Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
-
Non Contact High Accuracy Mobile Cylinder 0-10V Voltage Absolute Position Measuring Magnetostrictive Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
-
Eco Friendly Balluff Long Wind Turbine DeviceNet Level TransmitterUS$ 300 - 1,000MOQ: 1 Piece
-
Hot Sale Compact Long Wind Turbine Level TransducerUS$ 200 - 700MOQ: 1 Piece
Type
Other, Sensor
Model Number
19D Series
Brand Name
Germanjet
Place of Origin
Germany

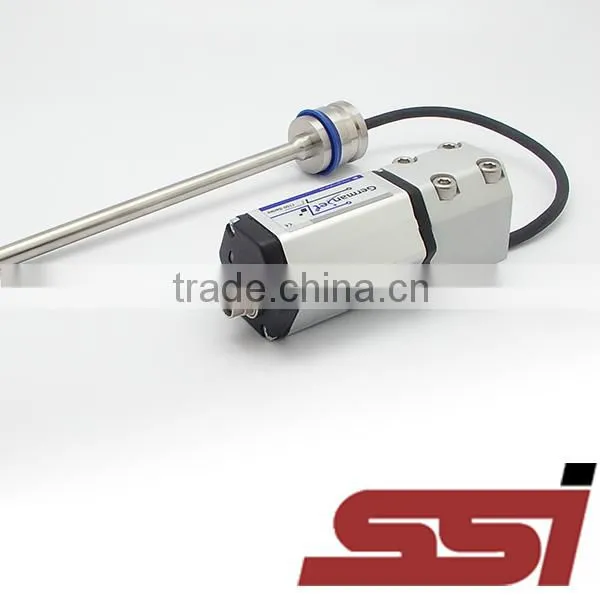

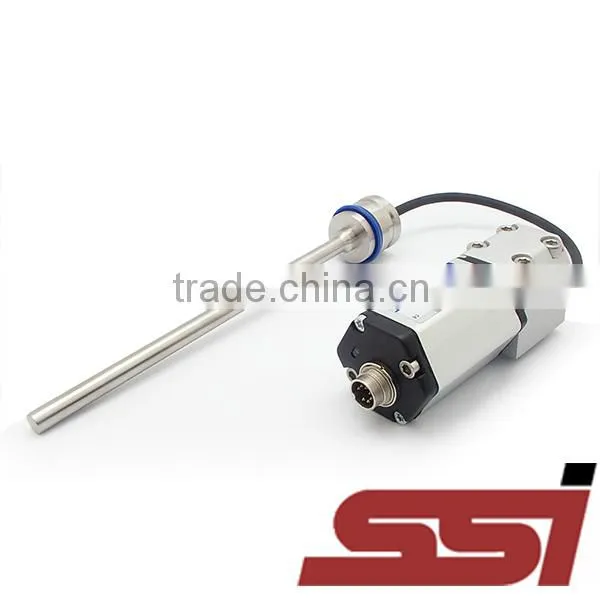

D model - Sensing Rod Detached

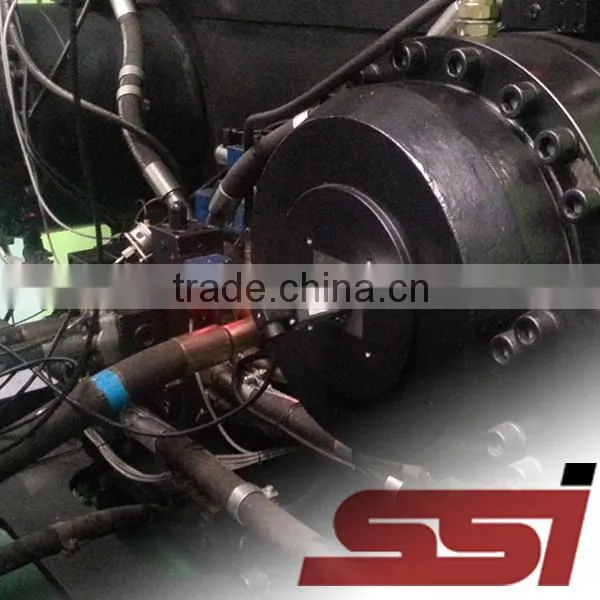

D model is design for hydraulic cylinder with limited head space or clevis rod ends hydraulic cylinder. Sensing rod is made by stainless steel which installed inside the hydraulic cylinder. It is connected to the electronic module installed at the outside of the cylinder by a robust cable.

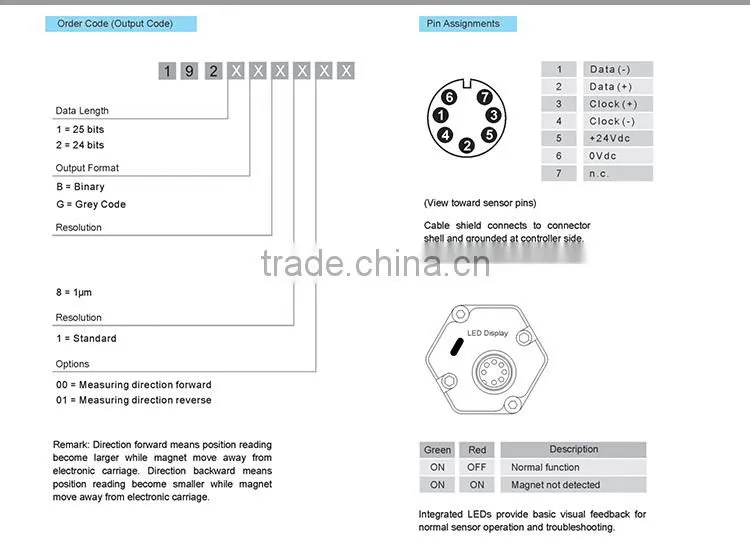

| Order Code | 192 |

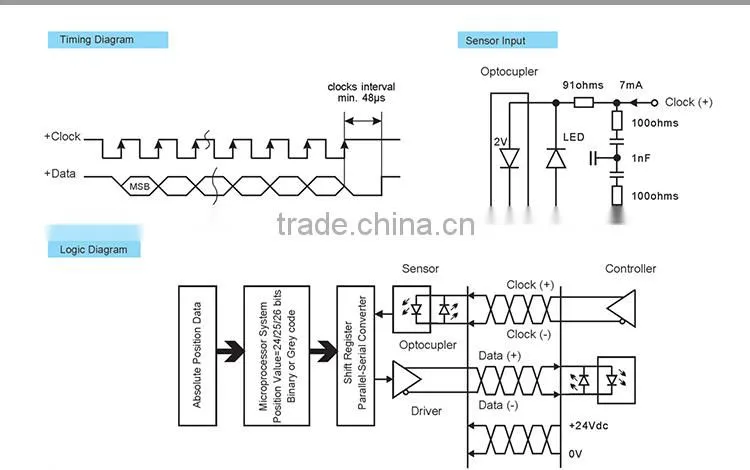

| Output | SSI |
| Measurement Type | Linear displacement |
| Data Format | Binary or Grey |
| Data Length | 8 - 32 bits |
Data Speed |
Cable Length : <3 <50 <100 <200 <400 m |
Baud rate : 1000 <400 <300 <200 <100 kBd |
|
| Update Time | Measuring Length : 300 750 1000 2000 5000 mm |
| Measurement/sec : 3.7 3.0 2.3 1.2 0.5 kHz | |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
