BW250 triplex drilling mud pump

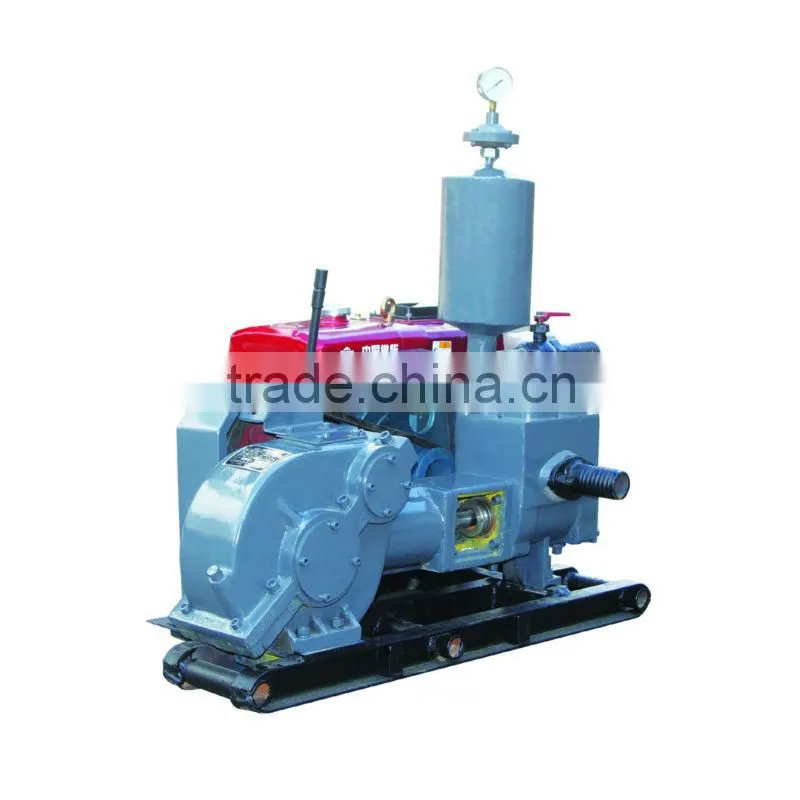

HFBW250 triplex drilling mud pump
1.High quality drilling mud pump
2.High effeciency drilling mud pump
3.Hot sales abroad drilling mud pump
4.Model HFBW250 drilling mud pump
Drilling rig and mud pump application range:
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling
Name |
BW-250 |
|||||||
Type |
Horizontal,Three-cylinder single-acting, reciprocal piston pump |
|||||||
Stroke |
100 mm |
|||||||
Liner Dia |
80mm |
65mm |
||||||
Gears |
I |
II |
III |
IV |
I |
II |
III |
IV |
|
Pump Speed (times/min) |
200 |
116 |
72 |
42 |
200 |
116 |
72 |
42 |
|
Displacement (liter/min) |
250 |
145 |
90 |
52 |
166 |
96 |
60 |
35 |
|
Pressure (MPa) |
2.5 |
4.5 |
6.0 |
6.0 |
4.0 |
6.0 |
7.0 |
7.0 |
|
Volume fraction
|
85% |
|||||||
Combined efficiency |
72% |
|||||||
Input power |
15 Kw |
|||||||
|
Triangle leather belt pitch dia |
Type B ×5 Groove 410 mm |
|||||||
Input speed |
500 r/min |
|||||||
|
Max suction head |
2.5 m |
|||||||
|
Suction pipe Dia |
φ76 mm |
|||||||
|
Discharge pipe Dia |
φ51 mm |
|||||||
Measurement |
1100 × 995 × 650 mm |
|||||||
Send Inquiry to This Supplier
