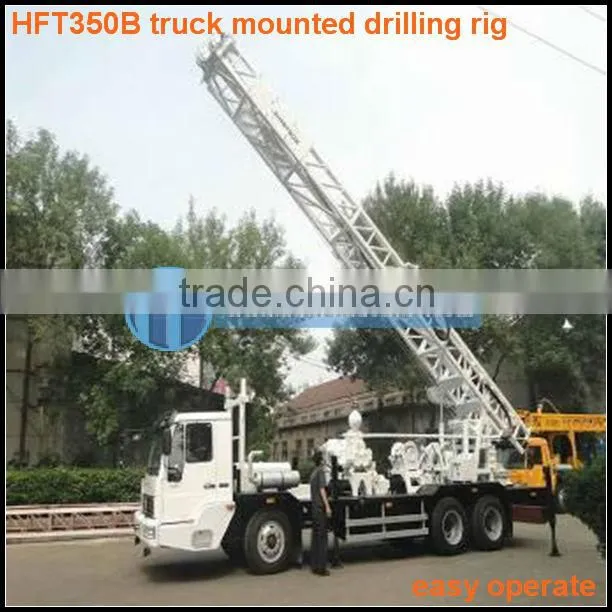

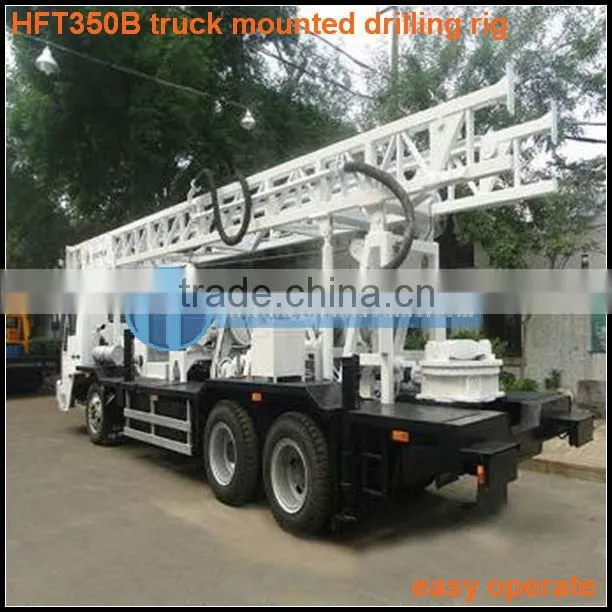

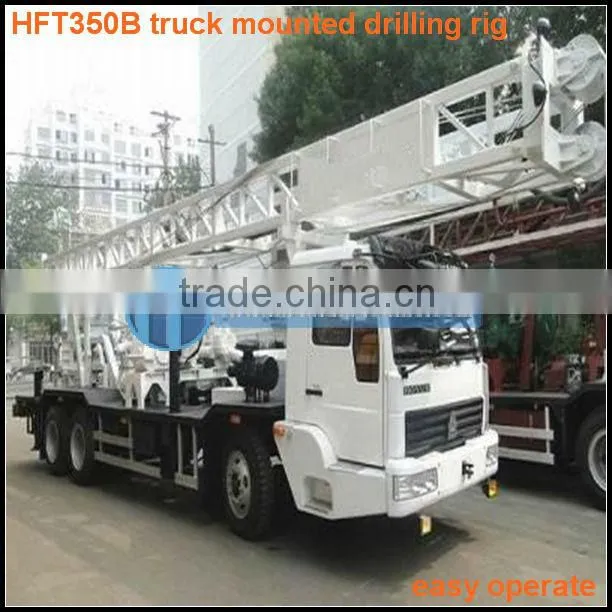

300m depth HFT350B truck mounted rock drilling machine

Specifications

HFT350B rock drilling machine
1.truck mounted,easy move
2.max drill depth 300m
3.can drill rock,sand,soil etc
4.easy operate



300m drilling depth HFT350B  truck mounted  rock drilling machine



 feature as follows:
1. Truck type drilling rig
2. High effeciency drilling rig
3. Hottes sales in South America drilling rig
4. Water well drilling rig equipment
5. Drill depth upto 300m
6. Drill diameter upto 1500mm

HFT350B drilling rig is adopt truck mounted and is a rotary drilling rig.
The truck chassis is adopt the special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump, mast are setup on the chassis.
This rig is a rotary drilling rig with directional circulation, which is equipped with BW900/25 mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
The power of drilling rig comes from the truck engine, the rig setups distribute implement and hydraulic system.
We can upset the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
We can setup a generator (15kw), so that it is convenience to illuminate or work at night.
The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working.



Technical  parameter
Drilling  depth M			80	300
Drilling  diameter mm			1500	500
Speed  of  turntable r/min			21.2, 36, 63.2, 100.6, 155, 20.2 reverse
Torque  of  turntable KN. m			18, 10.6, 6, 3.8, 2.5, 18.9 reverse
Single  rope  lifting  capacity  of  windlass KN			30
the  max  torque  of  whole  machine KN. m			40.55
The  lifting  capacity  of  hook KN			180
Bearing  capacity  of  mast  (KN)			180
The  height  of  mast  (mm)			11500
Bearing  capacity  (t)			25
Pipe	Kelly  mm		108× 108× 7500
	Assistant  pipe  (mm)		DIA 89× 10× 5500
Hydraulic  pump	Model		CB-HP50/32Z
	Pump  delivery  (ml/r)		50/32
	Rated  speed  (r/min)		3500-3700
	Rated  pressure(MPa)		20
BW850/2A plunger  pump	Diameter  of  cylinder  (mm)		150
	Stroke  of  piston  (mm)		180
	Theory  of  flow  (L  /  min)		600            850
	Rated  pressure  (Mpa)		3                  2
	Pounding    times  (min-1)		58                82
	Diameter  of  suction  tube  (mm)		127
	Diameter  of  drain  pipe  (mm)		64
	Input  speed  (r  /  min)		470
	Input  power  (kw)		40
	Overall  dimensions  (mm)		2000*1030*1400
	Weight  (t)		1.5
Truck  chassis	Model		TAZ5191TXJ
	Drive  form		6× 4
	Engine	Model	TBD226B-6II
		Rated  power KW	132
		Speed  r/min	2300
	Size  L*W*H(mm)		11110× 2490× 2500
Electric  generator	Model		MF
	Rated  power  (kw)		15
	Rated  voltage(v)		400
	Rated  current(A)		27
	Speed  (r/min)		1500
	Frequency(Hz)		50
	Protection  level		IP21
	Insulation  Class		H
The  best  working  gear  (or  speed)			5th  gear 1000-1400r/min
The  highest  speed Km/h			75
Weight  kg			19340
Transport  size L*W*H(mm)			12160*2490*3440
Working  size L*W*H(mm)			11110*2490*13110
