HF200Y DTH Hammer Drill RigDTH hammer
Work with air compressor
Export to Europe
HF200Y DTH Hammer Drill Rig
Details------ HF200Y DTH Hammer Drill Rig
1, crawler type ,hydraulic control, easy to move and operate.
2, capable ,multifunctional ,high efficiency and economic .it can be used with air compressor or mud pump.
3, it adapt to different and complex stratum.
4, it is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration borehole.which especially used for drilling geothermal heating stove.
Bore diameter | 127-254mm |
Bore depth | 213m |
Work pressure | 1.05-2.46Mpa |
Air consumption | 16-30m3/min |
Drill rod length | 3m |
Drill rod diameter | 76mm |
dimension | 5800*2040*3200 |
Climb ability | 25degree |
Walking speed | 2.5km/h |
Total weight | 8T |
Main volume system | |
Hoist force | 3400N |
Speed up | 50m/min |
Speed down | 96m/min |
Feed system | |
Axial pressure | 40820N |
Hoist force | 68040N |
Slow lift | 8m/min |
Slow forward | 16m/min |
Quick lift | 26m/min |
Quick forward | 48m/min |
Rotation torque | 3200NM |
Rotation speed | 130r/min |

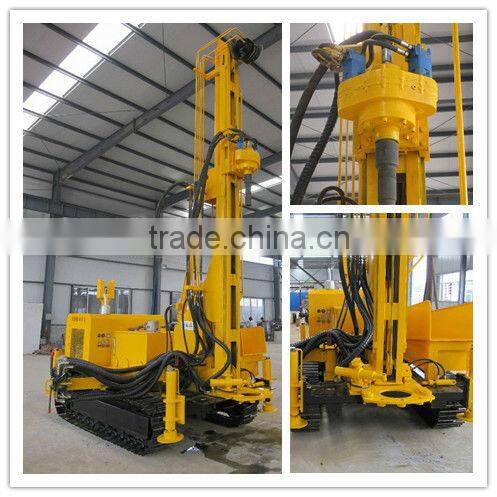

Pictures in detail------ HF200Y DTH Hammer Drill Rig
