200m Drill Depth, Hydraulic Trailer Type HF200 Auger Drilling Equipment

200m Drill Depth, Hydraulic Trailer Type HF200 Auger Drilling Equipment photo-1
US$ 8,950 - 9,860 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name Hanfa
Model Number HF200
Usage Ore
Power(W) 415kw
Dimension(L*W*H) 2.5*1*1.3m,2.5*0.9*1.3m
Weight 910kg(no including power)
Certification ISO9001:2000 certificate
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

HF200 auger drilling equipment
1.hydraulic,trailer type
2.drill 200m depth,75-300mm diameter
3.can drill rock,sand,soil
4ISO

ISO certificate machine, 200m drill depth trailer type HF200  auger drilling equipment



Features and Advantages

1.hydraulic,trailer type
2.rock expert,high efficient drilling rig
3.ISO9001:2000 certificate
4.national free-inspection product

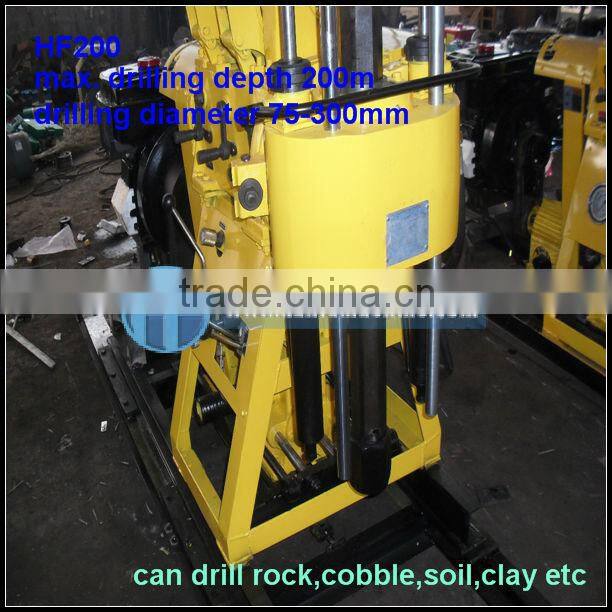

 200m drill depth, hydraulic trailer type HF200 auger drilling equipment

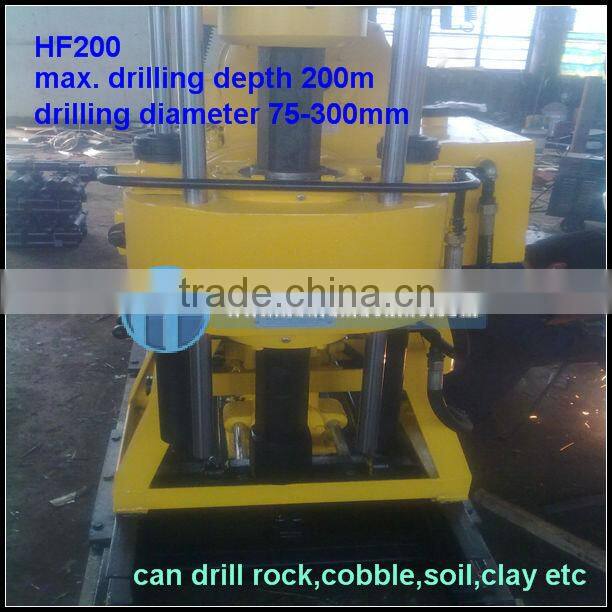

200m drill depth, hydraulic trailer type HF200 auger drilling equipment



Technical paraments

Main machine technical parameter
Drilling depth 30--200m
Drlling diameter 500-75mm
Drilling pipe diameter 50mm
Drilling angle 90°~75°
Drilling weight(no include power) 910kg
Unity machine dimensions 2.5×1×1.3m, 2.5×0.9×1.3m
Spindle
Spindle speed 64,128,287,557r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 2000kg
Single line lifting speed 17,35,75,151r/min
Tightrope caliber 12.5mm
Tightrope cubic measure 35m
Hug floodgate diameter 254mm
Hug floodgate belt width 70mm
Distance between drill and hole 400mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Power
Diesel engine s1110 Model, 22HP
Electric Motor Y160M—4 15kw 1440r/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Water inlet caliber 40mm
Water to exit caliber 30mm
Triangle conveyer belt B1728mm

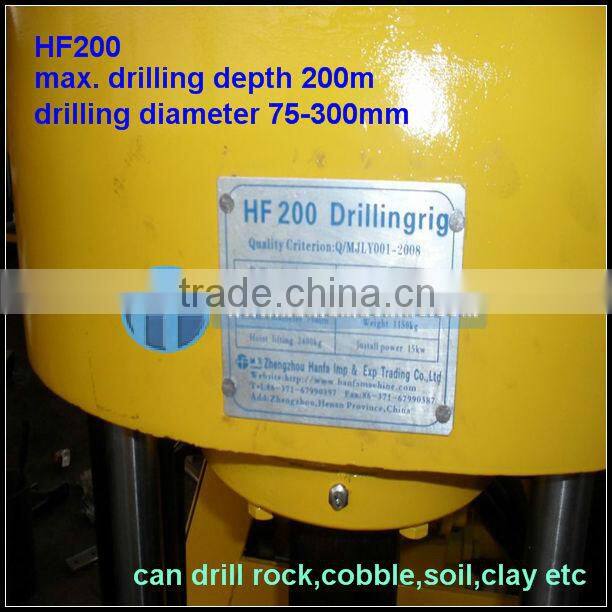

 200m drill depth, hydraulic trailer type HF200 auger drilling equipment

200m drill depth, hydraulic trailer type HF200 auger drilling equipment

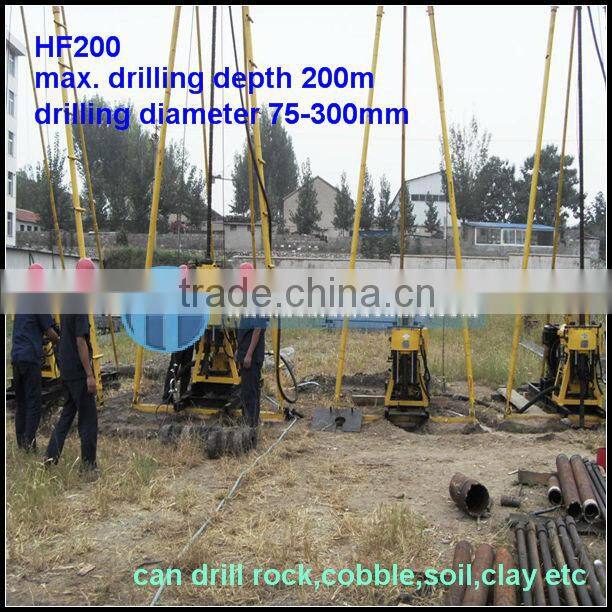

Working site



 200m drill depth, hydraulic trailer type HF200 auger drilling equipment
