Specifications

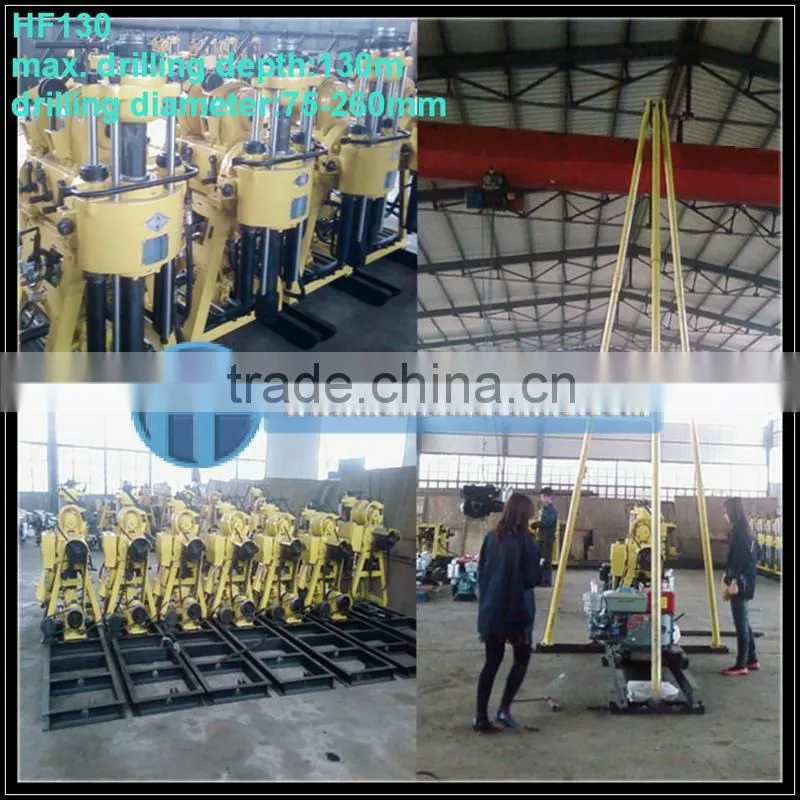

HF130 water well drill rigs for sale1.hydraulic,easy operate
2.trailer,easy move
3.high efficiency
4.can drill rock,sand
Your good helper! trailer type HF130 water well drill rigs for sale
Application scope
Geology general check exploration, earth physics exploration, road and high layer building ground survey,
Well, blast opening et cetera drilling engineering
This drilling core rig is hydraulic control, easy to operate, strong torque, used for different geology condition
Specially recommended
This drilling core rig gained 3 national pratical new-type patents invention
To be equipped with hexagonal vertical shaft and hexagonal drive driling rod, with strong rigidity and big transfer torque.
To be provided with cone plate friction clutch, being facile to operate, with big transfer torque
To be adopt rolling bearing type hoist, with wide brake band and big lifting capacity
To be equipped with speed reducer and sludge pump, being integrated structure
The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility
To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
Technical Specifications
| Unity machine parameter | ||
| Drilling depth | 130m | |
| Maximum open hole caliber | 260mm | |
| End hole caliber | 75mm | |
| Drill rod caliber | 50mm | |
| Drilling angle | 90-75 | |
| Drill weight (No include power) | 510 560kg | |
| Unity machine dimensions | 2.5× 1× 1.3 2.5× 0.9× 1.3m | |
| Spindle | ||
| spindle speed | 142.285.570r/min | |
| Spindle stroke | 450mm | |
| Hoist | ||
| Max. single line hoisting capacity | 960kg | |
| Single line lifting speed | 0.41/0.82/1.64m/s | |
| Tightrope caliber | 27m | |
| Mud pump | ||
| Type | Horizontal single urn twin-action | |
| Displacement | 95/77L/min | |
| Diesel engine | s1105 18HP | |
| Electric motor | Y160M— 4 11kw 1440r/min | |
| Maximum pressure | 1.2Mpa | |
| Work pressure | 0.7Mpa | |
| Water inlet caliber | 30mm | |
| Water to exit caliber | 25mm | |
| Triangle conveyor belt | B1575mm | |
Working site
