Specifications
HF150 ground drilling equipment1.hydraulic,easy operate
2.trailer type,easy move
3.high efficiency
4.ISO9001:2000

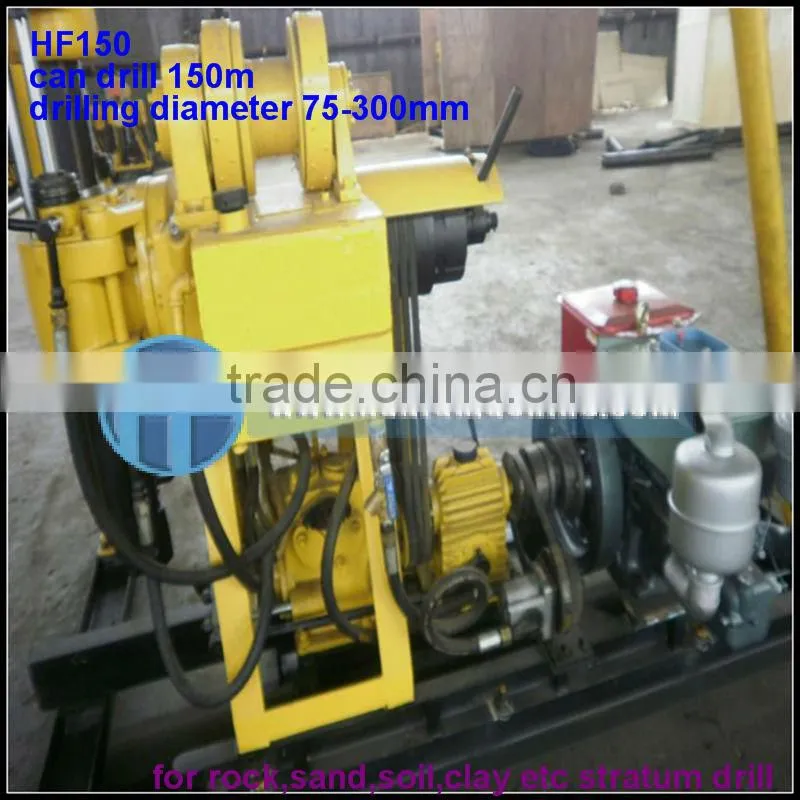

reliable performance durable drilling rig, HF150 ground drilling equipment
I. Application
Apply to drinking water well drilling, farm irrigation, garden irrigation, geological general investigation and exploration, road and
tall building basic exploration, kinds of hole in concrete structure, river levee, roadbed grouting hole drilling and direct grouting,and earth central air conditioner, etc.
II. Features and Advantages
1. This machine gained 3 national practical new-type patents invention.
2. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity and big transfer torque.
3. To be provided with cone plate friction clutch, being facile to operate, with big transfer torque.
4. To adopt rolling bearing type hoist, with wide brake band and big lifting capacity.
5. To be equipped with speed reducer and sludge pump, being integrated structure.
6. The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility.
7. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
8. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
Technical paraments
| Drilling depth | 30--150m |
| Drlling diameter | 300-75mm |
| Drilling pipe diameter | 50mm |
| Drilling angle | 90°~75° |
| Drilling weight(no include power) | 910kg |
| Unity machine dimensions | 2.75×0.95×1.6m |
| Spindle | |
| Spindle speed | 64,128,287,557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Reel lifting speed | 17,35,75,151r/min |
| Reel diameter | 140mm |
| Wirerope diameter | 12.5mm |
| Wirerop cubic measure | 35m |
| Hug floodgate diameter | 254mm |
| Hug floodgate belt width | 70mm |
| Distance between drill and hole | 400mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Power | |
| Diesel engine | s1105 Model, 18HP |
| Electric Motor | Y160M—4 ,15kw 1440r/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Water inlet caliber | 40mm |
| Water to exit caliber | 30mm |
| Triangle conveyer belt | B1728mm |

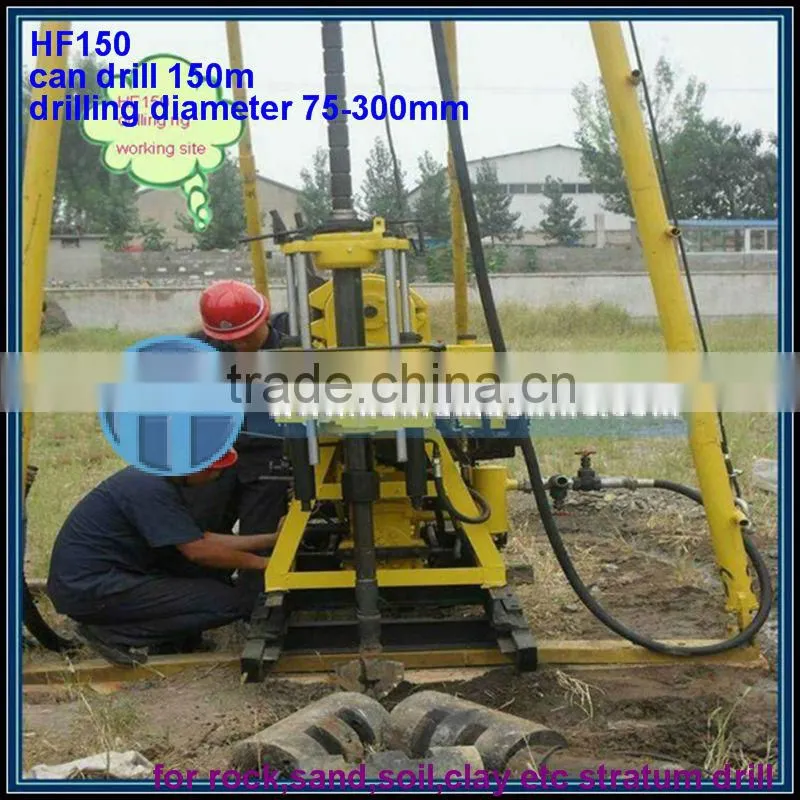

Working site
