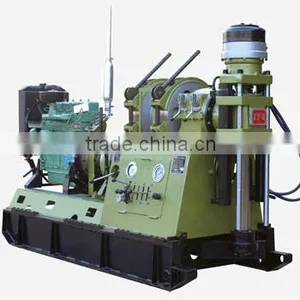

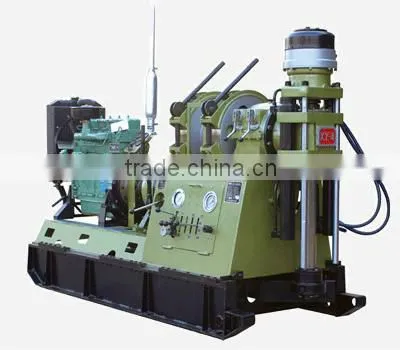

New Type High Speed Diamond Core Drill HF-4 Multi Spindle Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF-4T Drilling and Milling Machine in a Wide Range Adjusting AngleNegotiableMOQ: 1 Set -
Full-automatic Sampling Drill,HF-15 Mini Drill RigUS$ 5,950 - 7,050MOQ: 1 Set
-
Trailer Type,high Performance HF180 Drill Pipe Handling EquipmentNegotiableMOQ: 1 Set
-
New Type High Speed Diamond Core Drill HF-4 Ground Drilling EquipmentNegotiableMOQ: 1 Set
-
Economical and Practical Drilling Rig, HF150E Portable Water Well Drilling RigsUS$ 2,000 - 4,000MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Place of Origin
Henan, China
Brand Name
Hanfa
Model Number
HF-4
Usage
Other
Dimension(L*W*H)
2710*1100*1750mm
Weight
1500kg
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
HF-4 multi spindle drilling machine1.new type high speed diamond core drill
2.can be driven by diesel engine/electric motor
new type high speed diamond core drill HF-4 multi spindle drilling machine
I. general
HF-4 Core Drill is a new type high speed diamond core drill, it can be driven by Deutz F4L 912 diesel engine or 30KW electric motor.
II.speacifications
1.basic paraments
Depth of hole |
Φ42mm drill rod |
1000m |
Φ50mmdrill rod |
700m |
|
Angle range |
0°-360° |
|
Dimensions (L×W×H) |
2710×1100×1750mm |
|
Weight (without power unit) |
1500kg |
|
2. Swivel head
Spindle speed(r/min)
a.Driven by power machine speed 1500r/min
| Forward | low speed | 101,187,267,388 |
| high speed | 311,574,819,1191 | |
| Reverse | low speed | 83 |
| high speed | 251 |
b.Driven by powder machine speed 200r/min
| Forward | low speed | 135,250,355,517 |
| high speed | 415,765,1090,1588 | |
| Reverse | low speed | 110 |
| high speed | 338 |
| Spindle stroke | 600mm(23.62inch) |
| Spindle lifting capacity | Max. 80KN(17984lbf) |
| Spinde pull down force | Max. 60KN(13488lbf) |
| Spindle I.D. | 68mm(2.68inch) |
If you want to learn moe details, please kindly contact us, we will try our best to work for you.
