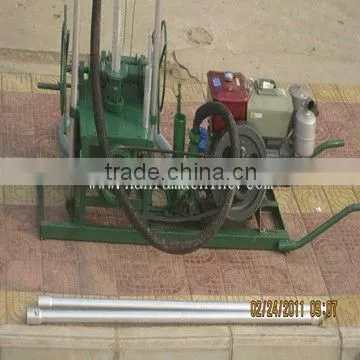

Most economic home using drilling rig! HF80 portable water well drilling rig

Specifications

HF80 portable shallow water well drilling rig:
1. portable,delivery cost saving
2. efficiency, 20m depth/h
3.economic,durable

Most economic home using drilling rig! HF80 portable shallow water well drilling rig





I. Applications of small drilling rig

This machine mainly used for water well drilling, drilling diameter is 70-300mm and drilling depth is 60-80m.

It can also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.



II. Features and Advantages of small drilling rig

1.     Light weight. The main engine  HF80 water well drilling equipments is only weighted 0.135tons.

2.     Easy to operate. Can be handled without experience.

3.     Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.

4.     Can drill through hard stratums, unless thick rock layer.

5.     Can drill deep. Equipped with raser, reduce the labor intensity.

        6.  High efficiency, the drilling speed can reach 20meters depth per hour, in plain area.

        7.  Economical. HF80 water well drilling equipments can be called the most economical water well drilling machine.



III. Main Technical Parameter of small drilling rig

Brand	HF	Type	HF80
Origin	China	Usage	Water well, Piling
Diameter	70--300(mm)	Depth	30--80(m)
Weight	0.135(t)	Dimensions	1100*600*500(mm)
