Specifications
HFDP-60 hydraulic horizontal drilling rig1.hydraulic horizontal drilling rig
2.Laying cable of electric&communication drill

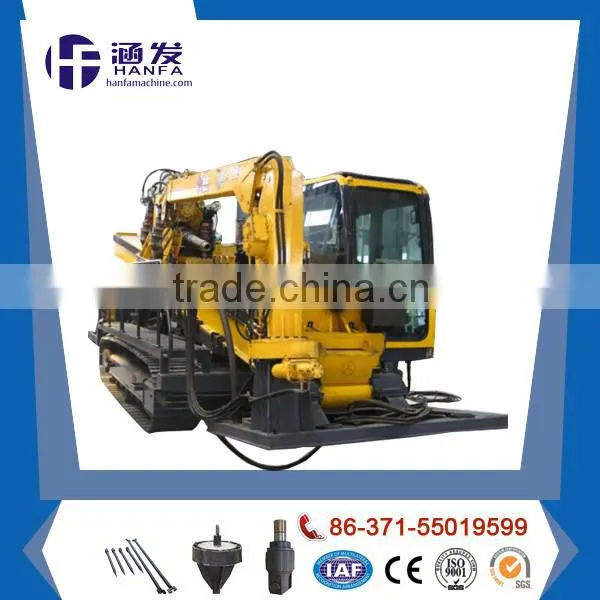

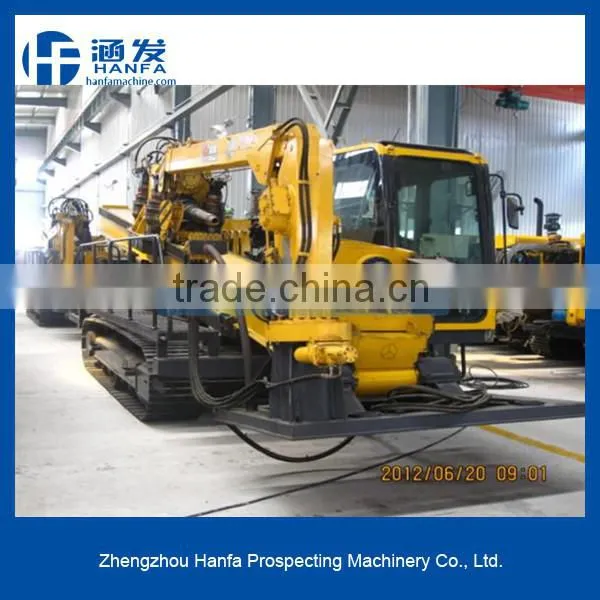

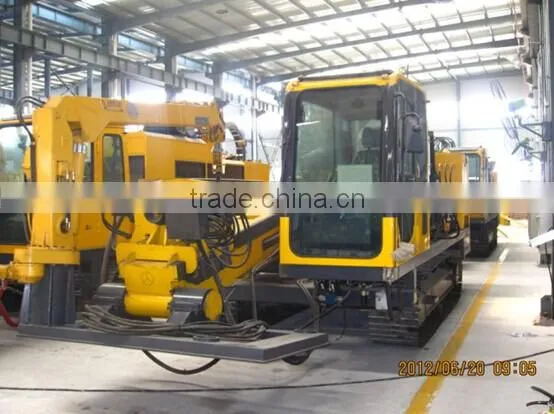

HFDP-60 horizontal directional drilling rig
Introduction------horizontal directional drilling rig
1.HFDP-60 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.
2.Equipped with the diesel engine at the power of 225KW, the drill rig is powerful enough to deal with various problems. The all new HFDP-60 provides 610KN of feeding,pulling force and Max. 27000N·m. And HFDP-60’s torque gains successful performances.
3.The rack and pinion transmission system is designed with advanced technology, which ensures much more reliable and safermovement of drill head.
4.The high-quality crawler makes it possible for drill rig to move quickly.
5.The operator's cabin is with wide field of view and good sound insulation.
6.All sorts of monitoring gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of two tons is attached with the main machine to ensure convenient working for operator.
7.Suitable mud is supplied for drilling by the mud pump with Max flow 600L/min and Max pressure 8 Mpa.
8.The main hydraulic components are all famous brand from European and American suppliers, and the transfer case and reducer are adopted from well-known European factory, thus reliable
operation of the rig is guaranteed.
Technical data------horizontal directional drilling rig
The Main Machine | |
Power of Engine |
225 KW(302HP)@2200r/min |
Max. Push capacity |
610KN (137130 lbf) |
Max. Pull capacity |
610KN (137130 lbf) |
Rated Torque |
27000 N·m(19900 lbf·ft) @45 r/min 13500 N·m (9950 lbf·ft) @90 r/min |
Hollow Spindle RPM |
0—45 r/min |
|
0—90 r/min |
Feeding Stroke |
6000 mm(236.2 inch) |
Diameter of Guide Hole |
240 mm(9.5 inch) |
Drilling Angle |
8°—18° |
Dimension (L×W×H) |
9000×2750×2800 mm(354×108×110 inch) |
Weight |
24000 kg(52920 lb) |
Mud Pump | |
Specification |
BWF-600 |
Max. Discharge |
600 L/min(158.5 US Gallons/min) |
Peak Pressure |
8 Mpa(1160psi) |
Weight |
650kg(1433 lb) |
Drilling tools and auxiliary system | |
Specification of Rod |
102×5000 mm(4.02×197 inch) |
Guide Bit |
170 mm(6.7 inch) |
Reamer |
425;500;680;760;820;920;1000 (16.7;19.7;26.8;29.9;32.3;36.2;39.4 inch) |
Distributor |
80T (176400 lb) |
Tracker |
Optional Part |

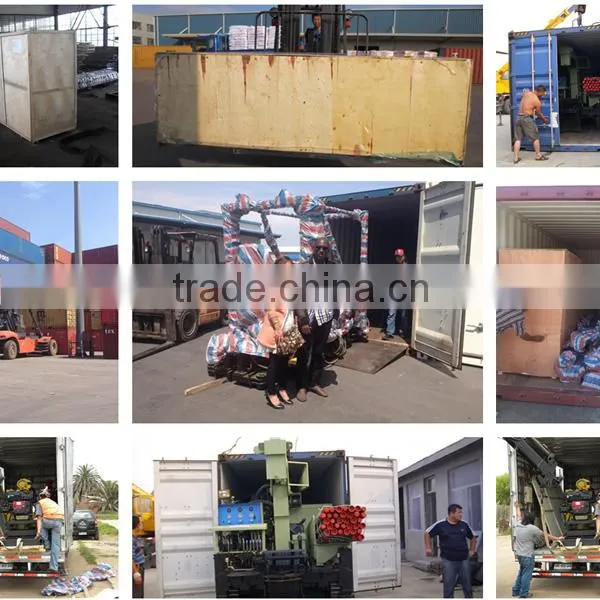

Package------horizontal directional drilling rig
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
Communication with the overseas customers ------ horizontal directional drilling rig
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
1.Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5.What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
