Specifications
Portable Water Well Drill Rig HF2001 Durable quality
2 Easy to use
3 Popular model in Africa and South America

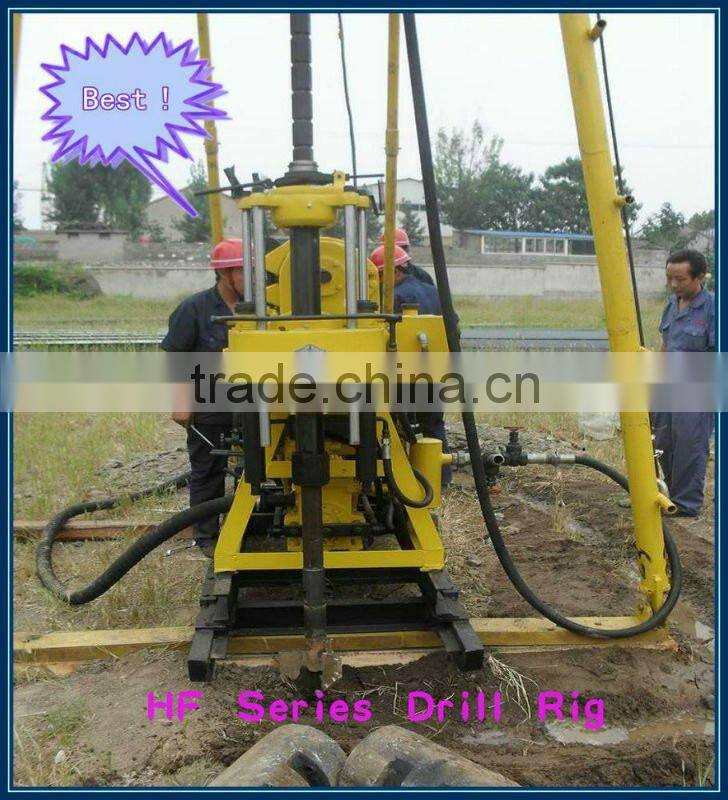

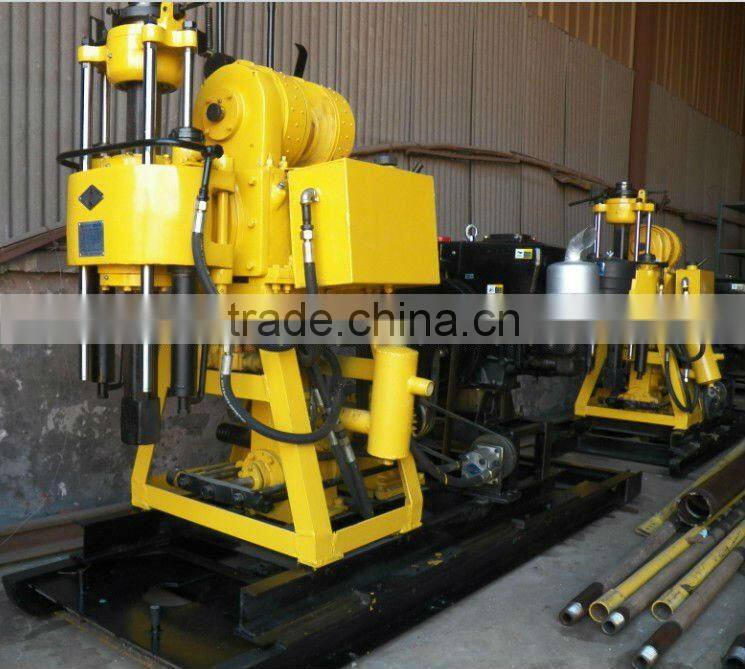

Portable Water Well Drill Rig
Specially recommended
This machine gained 3 national practical new-type patents invention.
To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity and big transfer torque.
To be provided with cone plate friction clutch, being facile to operate, with big transfer torque.
To adopt rolling bearing type hoist, with wide brake band and big lifting capacity.
To be equipped with speed reducer and sludge pump, being integrated structure.
The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility.
To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
Main machine technical parameter | |
Drilling depth |
200m |
Drilling diameter |
300mm |
End diameter |
75mm |
Drilling pipe diameter |
50mm |
Drilling angle |
90° - 75° |
Drilling weight (no include power) |
975kg |
Unity machine dimensions |
2.75×0.95×1.6m |
Spindle | |
Spindle speed |
64, 128, 287, 557r/min |
Spindle stroke |
450mm |
Hoist | |
Max. single line hoisting capacity |
2400kg |
Reel lifting speed |
17, 35, 75, 151r/min |
Reel diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope cubic measure |
35m |
Hug floodgate diameter |
260mm |
Hug floodgate belt width |
70mm |
Distance between drill and hole |
400mm |
Power | |

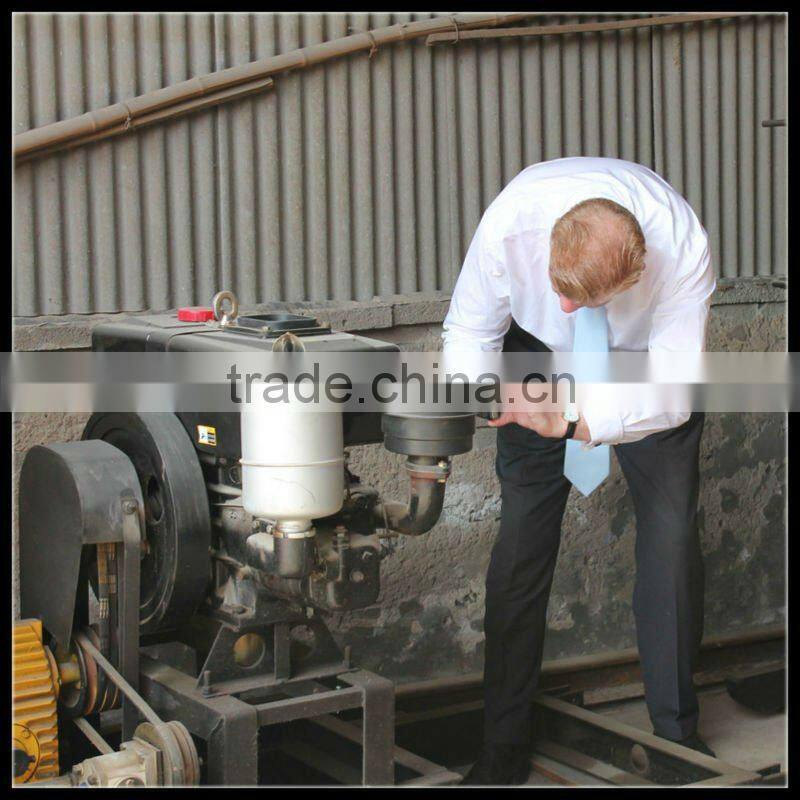

Diesel engine |
s1110 Model, 20HP |
Electric Motor |
Y160M—4 ,15kw 1440r/min |
Mud pump | |
Type |
Horizontal single urn twin-action |
Displacement |
170L/min |
Maximum pressure |
3.0Mpa |
Work pressure |
1.5Mpa |
Water inlet caliber |
40mm |
Water to exit caliber |
30mm |
Triangle conveyer belt |
B1728mm |
Hydraulic pump | |
specification |
CBT—F—314 |
Triangle conveyer belt |
B1100×1 |
Application | |
Geology general check exploration, Earth physics exploration, sampling test in mining, water Well, Blast opening etc drilling engineering | |
