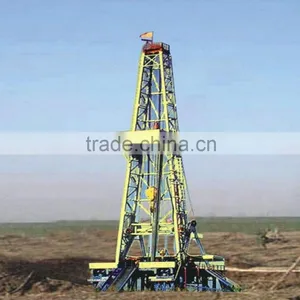

Workover Water Well Drilling Rig Equipment
1. Uses
This Workover Water Well Drilling Rig is applicable to the exploitation of deep underground water and the development of superficial terrestrial heat,petroleum and natural gas.It is a rotary disk drilling machine of mechanical driving.
2. Features
Used for rhe drilling of positive and negative circulation and the drilling with multiple process air.
With a quick drilling speed,S2600Type well drill has a tension of the single rope for single winch of 105KN.With rhe drilling rod of 89,it can drill up to the depth of 2600m;and weth the drilling rod of 127,it can drill up to the depth of 2200m,which is widely used.
Mechanical catheads can be selected to dismantle the drilling tool together with tongs or to remove the drilling tool together with the rotary disk.
With flexible power matching,two Y280M-4×(2×90KW)motors or two 6135AN-2(2×150HP)diesel engines can be selected.
3. Security&Usability
Safe,reliable and labor-saving operation
It can satisfy the requirements for the drilling of water well.With strong lifting capacity,it can be used for the construction of other resource holes including terrestrial heat.
4. Advantages
It possesses the advantages of safe,reliable and labor-saving operation,high automaticity,and low cost of operation.
5. Main Technical Parameter
|
Drilling capacity |
Drilling rod specifications(mm) |
89 127 |
(mm) Corollary active drilling rod |
108×108×12000 |
||||
|
Drilling depth(m) |
2200-2600
|
Cathead |
, Catheads and tongs can be useed to remove thedrilling tool when forks arenot used to remove the drilling tool
|
|||||
|
Rotary disk
|
Diameter(mm) |
450 |
--- Power enginemotor |
Type |
2×Y280M-4 |
|||
|
Rotation speed(r/min)(positive,reverse) |
43 63 93 156 |
Rotation (r/min) |
1500 |
|||||
Output Torqe(KN.m) |
30 22 16 9 |
Power (kw) |
2×90 |
|||||
|
Hoist |
Rate lifeing capacity of single rope(layer 2) |
105 |
--- Power enginediesel engine |
Type |
2×6135AN-2 |
|||
|
m/s Lifting speed(layer2) |
1.1 2.4 4.1 |
Rotation (r/min) |
1500 |
|||||
|
Diameter of wire rope 6x(19)(mm) |
24.5 |
Power(kw) |
2×150 |
|||||
|
Watet brake |
Mode |
Duplex water brake |
t Weighr of overall unitt |
9.96 |
||||
|
Impeller diameter(mm) |
580 |
××mm Overall dimensions of the main engine(L×W×H)mm |
7575×2948×1760 7575×2948×1760 |
|||||
|
Corollary hook |
Pulley block |
5×6
|
××mm Overall dimensions of the main engine(L×W×H)mm |
7575×5370×1760 7575×5370×1760
|
||||
Max.load of hook (kN) |
800 |
|
||||||
|
Lifting speed of hook m/s |
0.11,0.24 ,0.41 |
|
||||||
