Specifications
HF300Y hydraulic water well drilling rig1)hydraulic&crawler type
2)rock expert,high efficient
3)aire & water

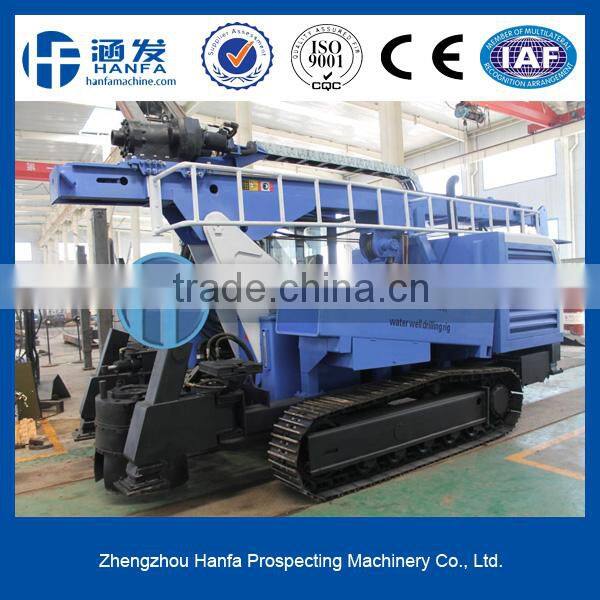

Good at drilling rock!! Powerful and Efficient HF300Y hydraulic water well drilling rig
1. Application of HF series hydraulic water well drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. technical parameters about hydraulic water well drilling rig
I. Features and Advantages
1, HF300Y drilling rig have the character of light, high efficiency, multi-function. According to different conditions, it uses air, foam or slurry to rotate and drill. Very good water well drilling machine
2, Application: This drilling machine is widely used in industrial and agriculture water project, drill water well, testing well and other exploration borehole. In particular, in drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering
3, this drilling rig HF300Y, Console and platform combination, easy to operate, with platform wide enough to enable the operator and the assistant to leave the mud appropriate height operations, folding walking platform, the control system to focus on the operation platform, easy to operate.

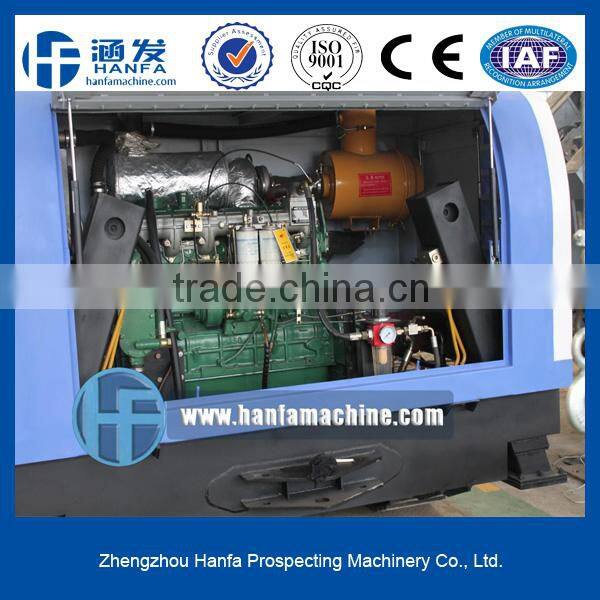

4, Hydraulic driving force for car engines, according to the impact of perforation size and the selected configuration corresponding compressor can greatly reduce the energy consumption and construction investment costs.
5, Steel crawler chassis and hydraulic jacks and level of instrument use; It can guarantee its complex environment in any rugged and accurate under normal perforation operation.
6, Rotating power head has two low-speed high torque hydraulic motor drive, can ensure strong torque output. In the main volume state, turret, and the centering device put to one side, away from the centerline, to enhance the discharge rod or casing
2. The technical parameters
| Bore diameter | 115-320mm |
| Bore depth | 320m |
| Work pressure | 1.05-3.0Mpa |
| Air consumption | 16-30m3/min |
| Drill rod length | 3m |
| Drill rod diameter | 89mm |
| dimension | 6300*2320*2780 |
| Climb ability | 30degree |
| Walking speed | 2.5km/h |
| Total weight | 11.5T |
| Feed system | |
| Axial pressure | 57000N |
| Hoist force | 80000N |
| Rotation torque | 5200NM |
| Rotation speed | 130r/min |
3,Designs of HF series hydraulic water well drilling rig
Innovation is the key to our success: During these years, we continually make new designs on our products to
make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust
the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.
4. Production ability( hydraulic water well drilling rig)
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
5. Customers( hydraulic water well drilling rig )
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
6. Packing( hydraulic water well drilling rig )
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
7. Quality guarantee( hydraulic water well drilling rig )
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
