HFDX-2 full hydraulic core drilling rig
Description
1. it can drill 350m with BQ tool, 230m depth with NQ tool, 120m depth with HQ tool.
2. It is completely hydraulic driven for all its coring function.
3. Fission style in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, etc
4. Good assemblability and disassemblability, light weight, can be carried by man power.
5. The rig can be applied and performed in narrow space for drilling of hole at 45-90° with stronger adaptability.
Main technical features
1. Full Hydraulic and Drill Head model.
2. In good disassemblability.
3. Strong techniques adaptability.
Technical parameters
Item |
Model |
HFDX-2 drilling rig |
Basic parameter of drilling capacity |
BQ |
350m |
NQ |
230m |
|
HQ |
120m |
|
Power unit |
Model |
2 sets double cylinder diesel engine |
Rated power of single engine |
33KW |
|
Rated speed |
2500rpm |
|
Drill head |
Max. Spindle torque |
334~930N·m |
Max. Spindle speed |
0~900rpm |
|
|
Feeding system (feed with hydraulic cylinder) |
Feeding stroke |
1700mm |
Lifting capacity |
50kN |
|
Feeding capacity |
25kN |
|
Main hoist |
Lifting capacity |
18kN (single-wire) |
Lifting speed |
84m/min |
|
Rope capacity |
30m |
|
Steel wire diameter |
12mm |
|
Wire line winch |
Lifting capacity |
8.4kN (bare drum) |
Lifting speed |
90~240m/min |
|
Rope capacity |
500m |
|
Steel wire diameter |
6mm |
|
Mud pump |
model |
BW-100A |
|
Overall dimensions (L*W*H) Main machine (in transport position) |
3500*1500*1300mm |
|
|
Dimensions of the disassembled parts (without mud pump) |
The largest part not more than 100kg |
|

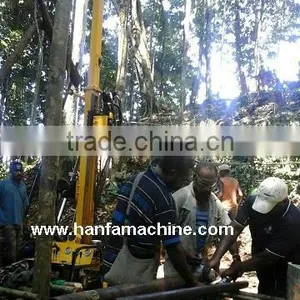

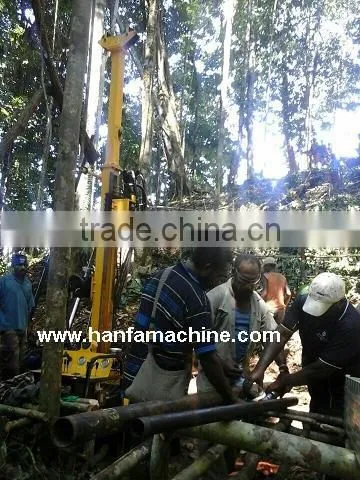

In customers' working site
Delivery
On oversea trade fair
After sale service
our engineers will offer technical supports within 24 hours, you can call us at: +86-371-55019599 or send email at: admin(at)hanfamachine(dor)com;
