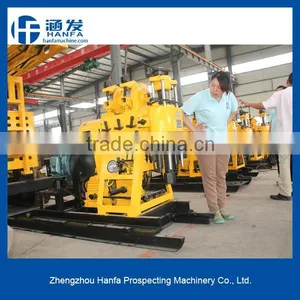

Powerful & Stronger!!! HF130 Trailer 130m Multifunctional Drilling Machine

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Hydraulic

Power Type:

Diesel

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Hydraulic

Power Type Diesel

Place of Origin Henan, China

Brand Name HF

Model Number HF130 Multifunctional Drilling Machine

Usage Water Well

Voltage 220V/380V

Power(W) 30KW

Weight 4T

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Multifunctional Drilling Machine 130m Depth, Powerful, Welcomed by Customers! HF130 Drilling Rig

Specifications
Unity machine parameter
Drilling depth		130m
Maximum open hole caliber		260mm
End hole caliber		75mm
Drill rod caliber		50mm
Drilling angle		90~75
Drill weight (No include power)		510 560kg
Unity machine dimensions		2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed		142,285,570r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		960kg
Single line lifting speed		0.41,0.82,1.64m/s
Tightrope caliber		27m
Mud pump
Type	Horizontal single urn twin-action
Displacement	95/77L/min
Diesle engine	s1105Type, 18HP
Electric motor	Y160M—4 11kw 1440r/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet caliber	30mm
Water to exit caliber	25mm
Triangle conveyer belt	B1575mm
