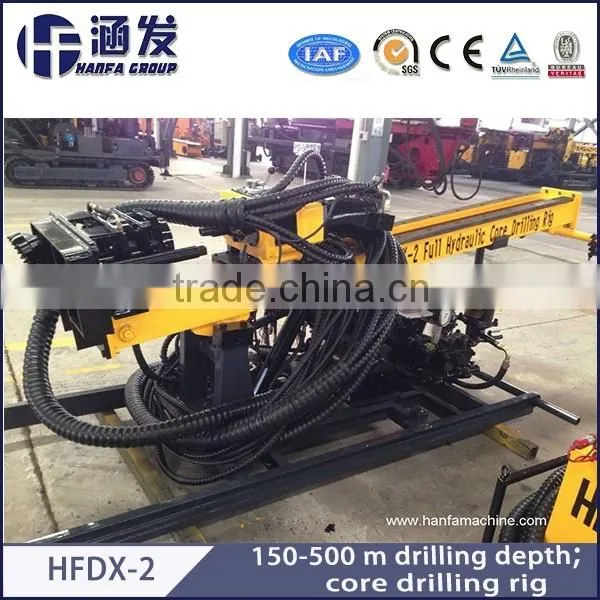

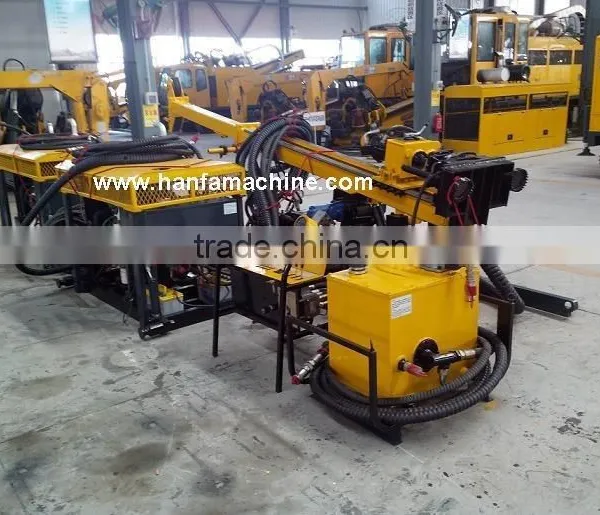

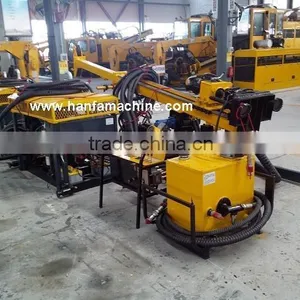

HFDX-2 hydraulic core drilling machine
Brief introduction
1. it can drill 350m depth with BQ tool, 230m depth with NQ tool, 120m depth with HQ tool;
2. It is completely hydraulic driven for all its coring function;

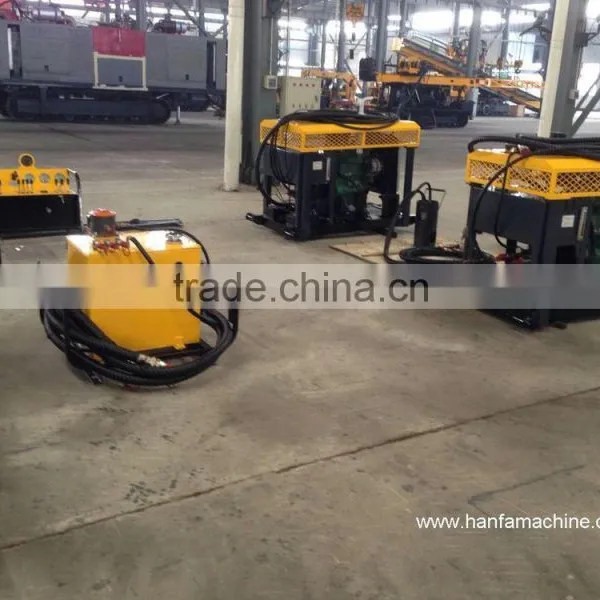

3. fission style in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, etc;
4. good assemblability and disassemblability, light weight, can be carried by man power or animal power;
5. the rig can be applied and performed in narrow space for drilling of hole at 45°-90° with stronger adaptability;
Main technical features
1. Full Hydraulic and Drill Head model. The drill head rotation is realized with four hydraulic pumps driven by five diesel engines; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed.
2. In good disassemblability. The rig is adopted fission style in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, i.e. the drilling section. So they are in light weight and can be carried by man power or animal power. The rig can be applied and performed in narrow space
for drilling of hole at 45°~90° with stronger adaptability.
3. Strong techniques adaptability. Besides diamond drilling with wire line coring technique, it is in strong techniques adaptability. It is applicable for the drilling and feeding requirement of any other stratum.
Technical parameters
Item |
Model |
HFDX-2 drilling rig |
|
Basic parameter of drilling capacity |
BQ |
350m |
NQ |
230m |
|
HQ |
120m |
|
Power unit |
Model |
2 sets double cylinder diesel engine |
Rated power of single engine |
33KW |
|
Rated speed |
2500rpm |
|
Drill head |
Max. Spindle torque |
334~930N·m |
Max. Spindle speed |
0~900rpm |
|
|
Feeding system (feed with hydraulic cylinder) |
Feeding stroke |
1700mm |
Lifting capacity |
50kN |
|
Feeding capacity |
25kN |
|
Main hoist |
Lifting capacity |
18kN (single-wire) |
Lifting speed |
84m/min |
|
Rope capacity |
30m |
|
Steel wire diameter |
12mm |
|
Wire line winch |
Lifting capacity |
8.4kN (bare drum) |
Lifting speed |
90~240m/min |
|
Rope capacity |
500m |
|
Steel wire diameter |
6mm |
|
Mud pump |
model |
BW-100A |
|
Overall dimensions (L*W*H) Main machine (in transport position) |
3500*1500*1300mm |
|
|
Dimensions of the disassembled parts (without mud pump) |
The largest part not more than 100kg |
|
Delivery

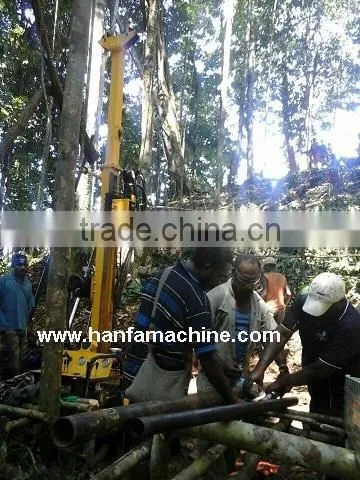

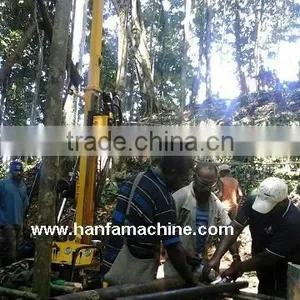

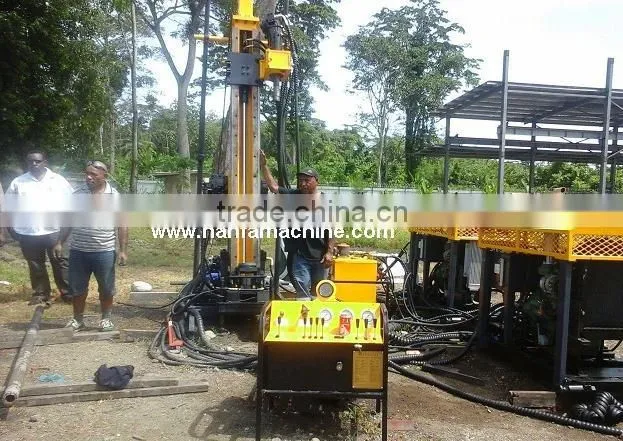

In customer's working site
In overseas trade fair
