Most portable and economic!HF130Y hand held rock drilling equipment
geothermy drilling machine
1,use with air compressor
2, for photovoltaic solar spiral pile
3,depth 20m-100m
1. Application of HF series water well/core drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. technical parameters about this drilling rig

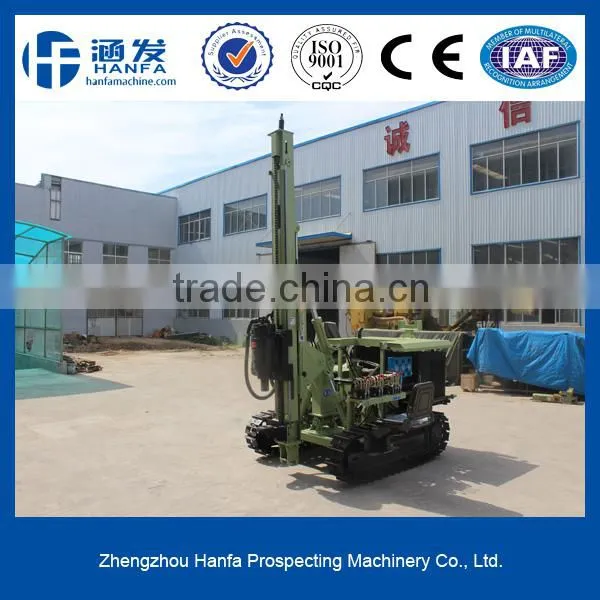

HF130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque,
convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation
function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has
reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction,
etc. The Technical parameters as follow:
|
Bore diameter(hammer) |
90-300mm |
Bore depth |
20-100m |
|
Air consumption |
10-26m³/min |
|
Air pressure |
0.7-1.6Mpa(medium)
1.6-2.46Mpa(high) |
Pipe diameter |
76mm/89mm |
For rock |
F=6-20 |
Bore diameter(screw) |
Max 400mm |
Bore depth |
0-30m |
Screw pipe diameter |
130-400mm |
Once promotion |
2000mm |
Skid pitch |
100° |
Swinging angle of skid |
Left and right total 40° |
|
Rotation speed |
0-70r/min |
|
Host power |
56Kw |
Climb ability |
35° |
Dimension(L*W*H) |
4460*1950*2460(mm) |
|
weight |
4360Kg |
Walk speed |
0-2.5km/h |
3,Designs of HF series drilling rig
Innovation is the key to our success: During these years, we continually make new designs on our products to
make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust
the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.

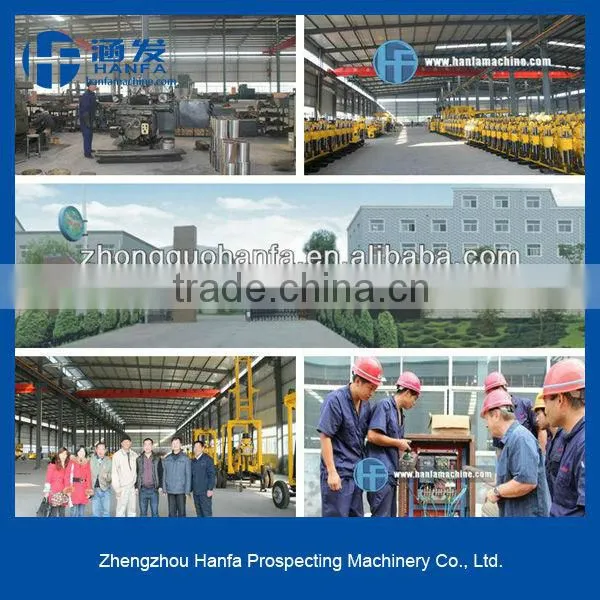

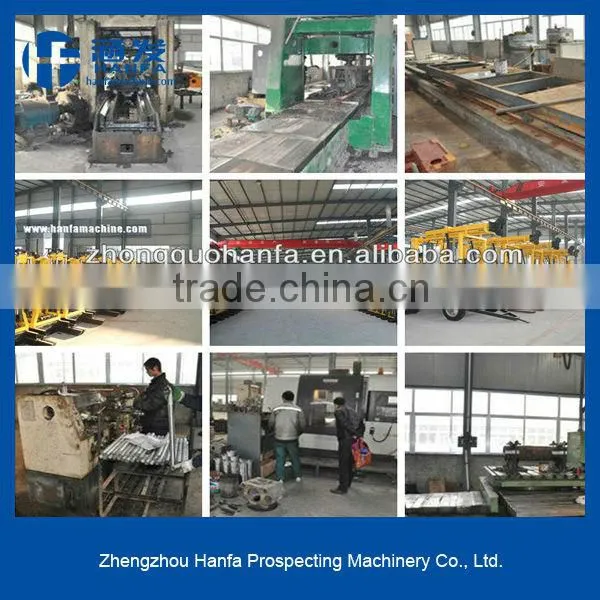

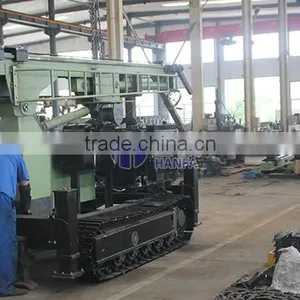

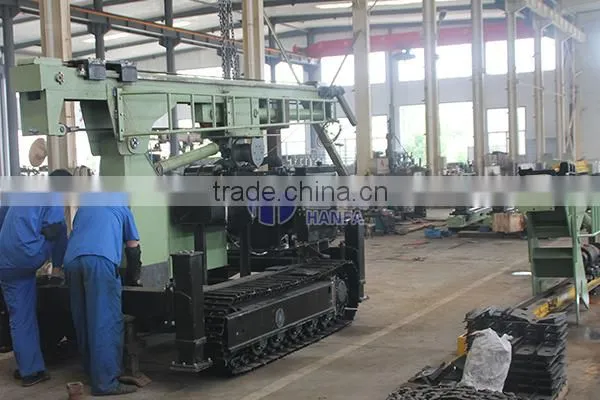

4. Production ability
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
5. Customers

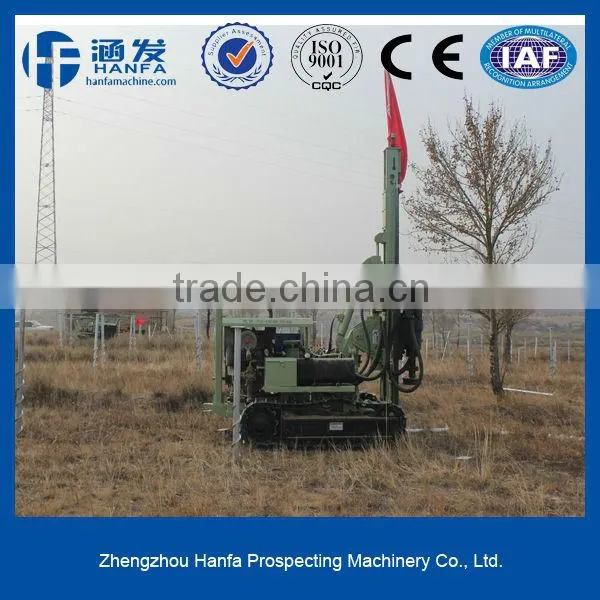

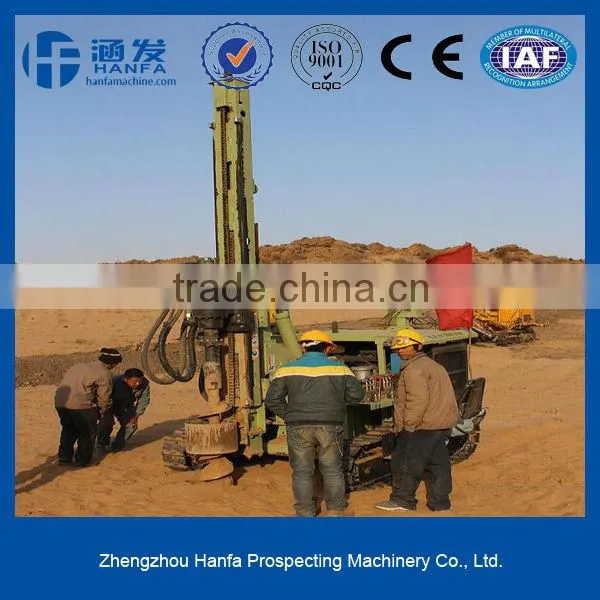

With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.

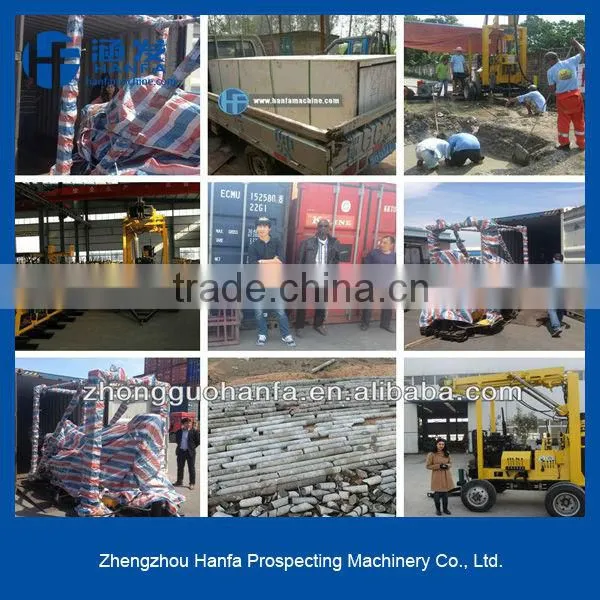

6. Packing
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
8. Quality guarantee
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
