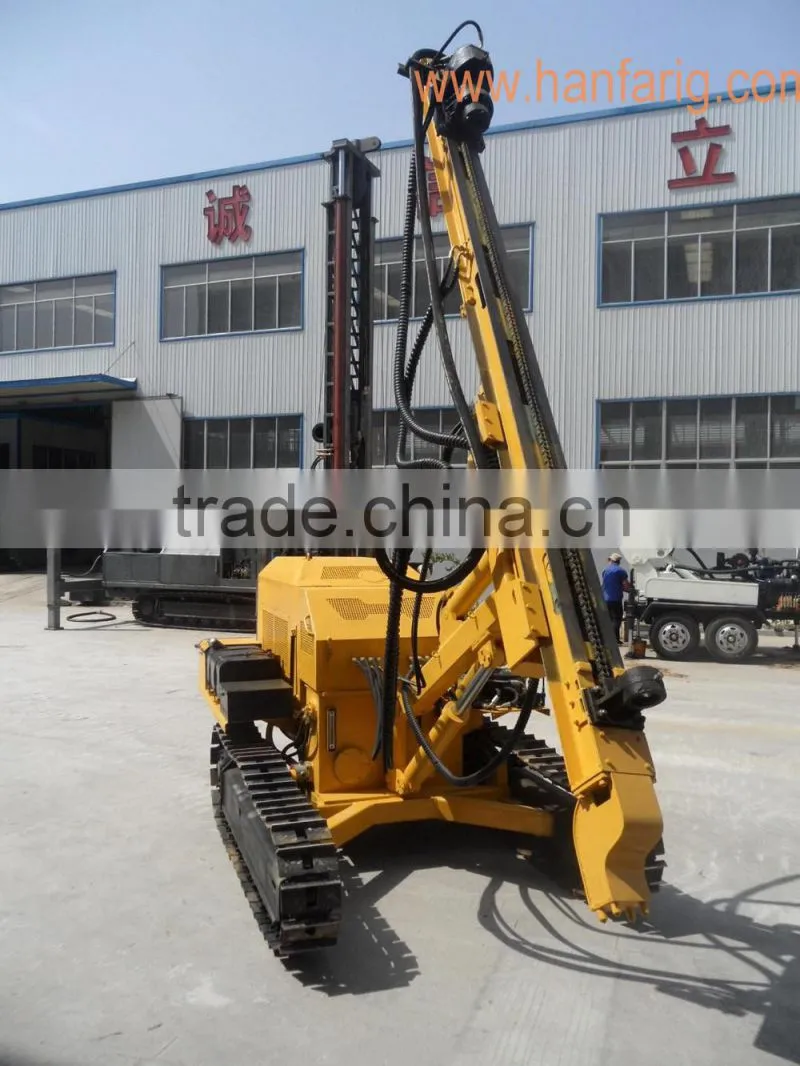

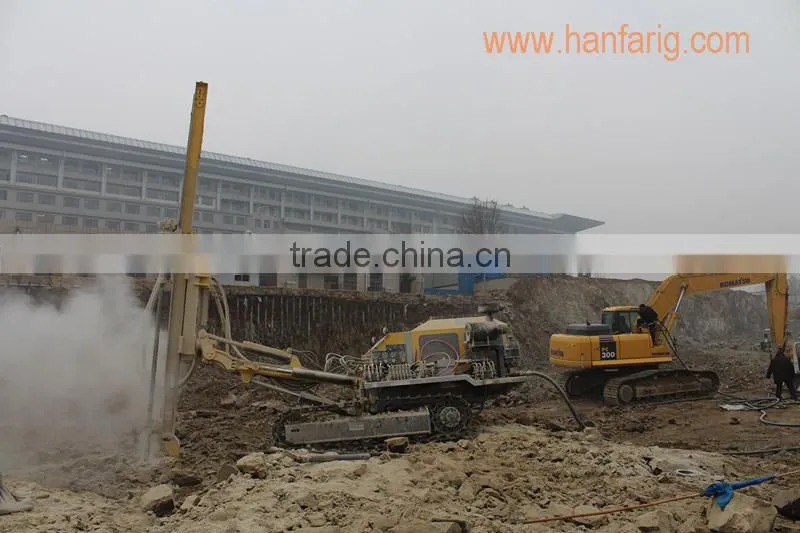

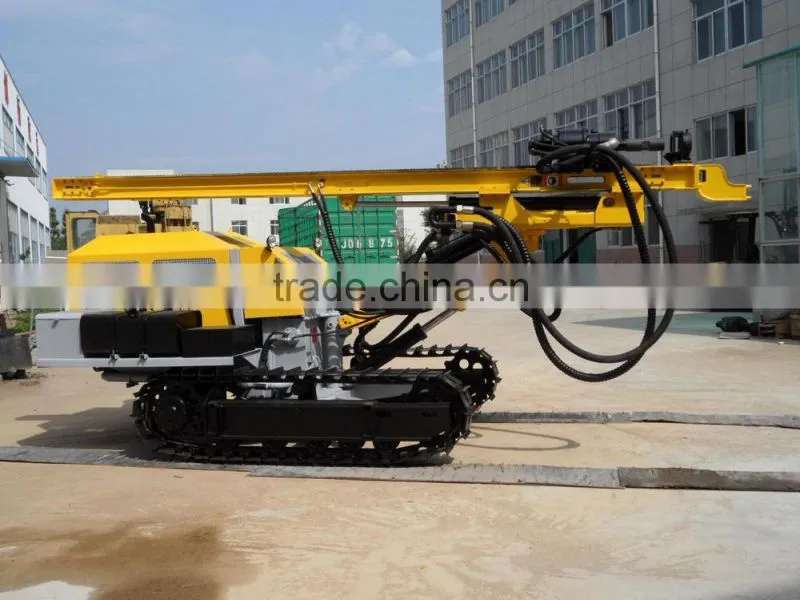

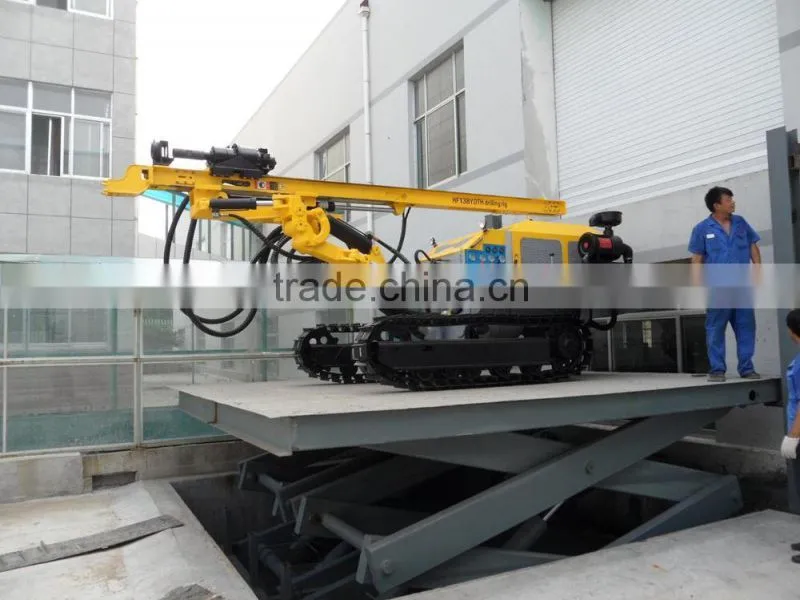

Stone Mine Blasting Hole Drill Machine

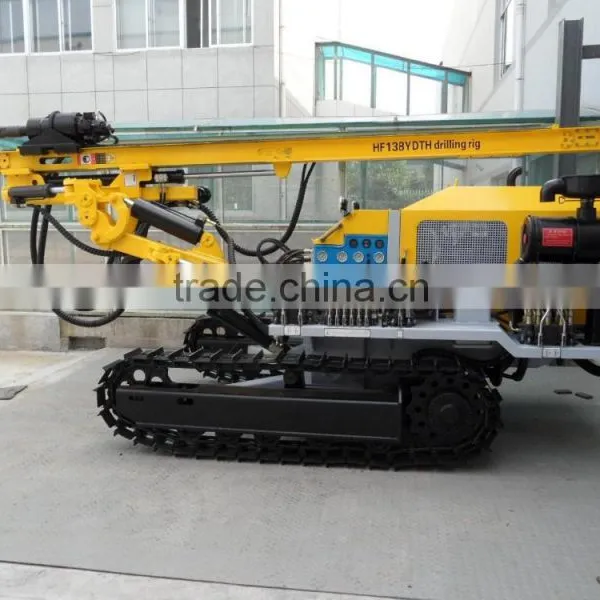

Main technical parameters of HF138Y

Wind pressure (Mpa)

0.7----1.6

Air consumption (m³/min)

10----15

Drilling diameter (mm)

80----130

Drilling depth (m)

horizontal 40m

vertical 30m

Once promotion distance (mm)

3000

Drill pipe diameter (mm)

60

Skid compensation (mm)

900

Maximum lift force  (N)

24800

Skid pitch (°)

up and down total 45

Swinging angle of skid (°)

Left 40, right 30

Boom swing angle (°)

Left 30, right 40

Boom Pitch (°)

up and down total 60

Grade ability (°)

30

Chassis ground clearance (mm)

260

Traveling speed (km/h)

0-2.5

Rotation speed (r/min)

0-110

Rotary torque (N.m)

2000

Power (Kw)

45

For rock (f)

6----20

Total Weight (kg)

4170

Dimension (L * W * H)

5200*1950*2300
