Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Pile Driver > Widely Used!HF360 Wheel Type Rotary Pile Drilling Equipment

Widely Used!HF360 Wheel Type Rotary Pile Drilling Equipment

US$ 18,000 - 23,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Efficiency:

30m/h

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Efficiency 30m/h

Place of Origin Henan, China

Brand Name HF

Model Number HF360

Weight 7.2T

Dimension(L*W*H) 6.5*2.1*2.6m

Certification ISO9001

After-sales Service Provided Overseas third-party support available

Specifications

HF360 wheel type rotary pile drilling equipment
1. diameter: 600-1000mm
2.Strong power
3.high efficiency
4.wheel type

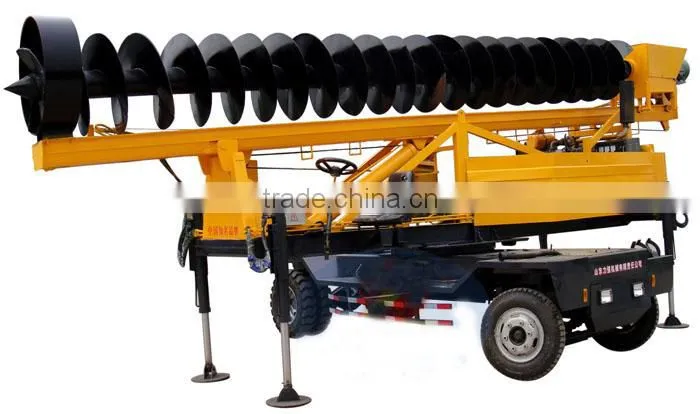

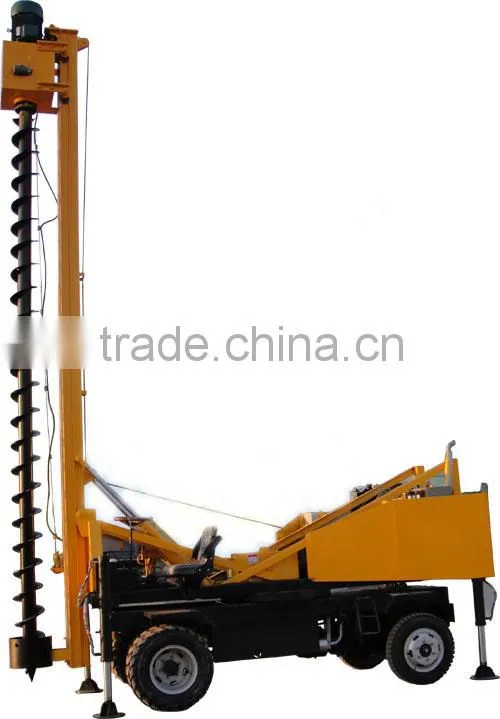

Widely used!HF360 wheel type rotary pile drilling equipment

Main features:

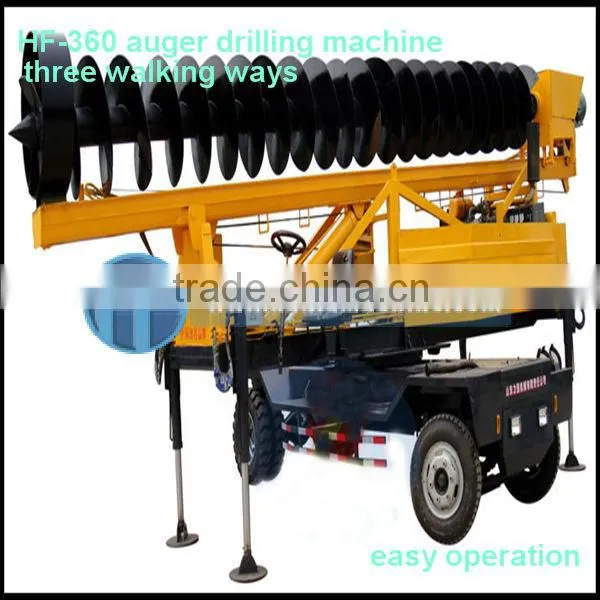

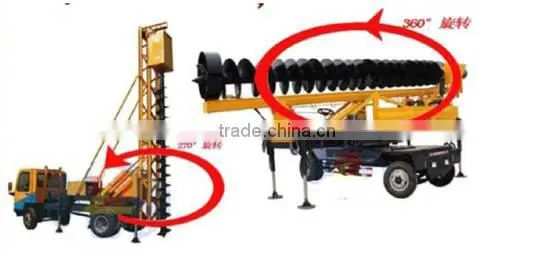

HF360 is one most energy-saving, 360-degree rotation, wheeled type small piling machine. It has the features of fast speed( three mintute to play 6 meters), large scope of work, no dead ends and so on. It used special drill bits, adapt to a variety of soil terrain. It has low oil consumption but high efficient.

This rig has three kinds of walking way:1. the traditional engine walking 2.when it walk a short-distance on a construction site, it can use electricity to walk. Convenient and swift. 3.hydraulic walking. In the case of encountering the relatively sticky ground (water content is big, such as raining just now), it can adopt hydraulic walking.

Main Technical Parameter

Model		HF-360
Hole diameter		600mm
Drilling depth		11m
Revolution angle°		360°
Overall dimension	Upright tube Max highest	7500mm
	Upright tube max width	2700mm
	Wheel base	4240mm
	track	1420mm
	Max length	7300mm
	Transport size	6.5mX2.1mX2.6m
	Weight	7.2t 8.6t
Wheel		6pcs
Generator power		50kw
Hoist power		2t/11kw
Hydraulic oil pump power		7.5kw
Power machine		6/22 KW
Travel power		34kw
Oil pump flow		32ml/r
Oil pump pressure		16mpa
Power source		Generator set working and 380V external power working
Travel type		Short distance travel by electric and hydraulic; long distance by diesel

Fitting list:

No	Description	Unit	Quantity	remark
1	HF -360 main machine	set	1	Including main machine , fluid-link steering,11KW oil pump power ,2t/11KW hoist power,22KW power machine+ 6#reduction box ,1.2m diameter swing tooth circle,6 pcs wheels
2	Grease gun	piece	1
3	pullover	piece	1
4	crowbar	piece	1
5	Oil seal 80X50	package	1
6	Nylon sleeve 40X50	piece	2
7	tongs	piece	1
8	Monkey wrench	piece	1
9	Amphibious gongs knife	piece	1
10	“O” ring ,compound gasket, grease fitting	package	1
11	Engine tool box	piece	1
12	Engine cylinder cushion	piece	1
13	Hydraulic oil tube	piece	4

About us:

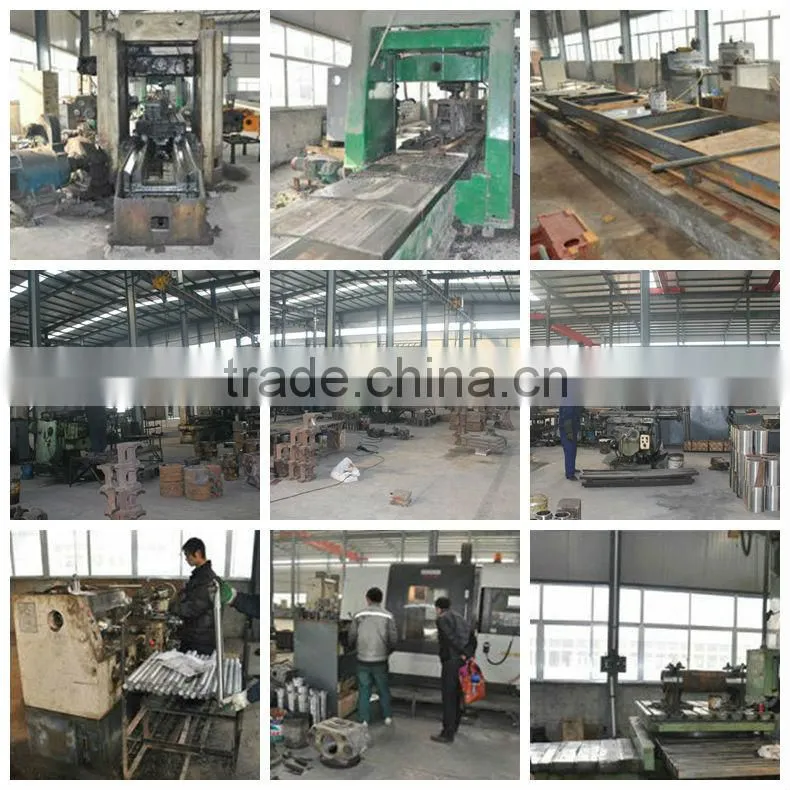

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market

Presently,it has three subsidiaries which are Zhengzhou Hanfa Prospecting Mchinery Co.,Ltd ,Zhengzhou Hanfa Imp & Exp Trading Co.,Ltd and HK Hanfa Imp Trading Co.,Ltd.It has experienced engineers , professional R&D team , special after service team ,world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers.

Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontal directional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.

At Present, Hanfa Group is the biggest exporter of drilling rigs in China. It has exported to more than Sixty countries and different regions, such as Southeast Asia, South America, Africa, Eastern Europe, Russia etc. Excellent quality and perfect service gain the consistent praise from customers. Depending on the stable and lasting capabilities, the brand of “HF” is also well-known and influential in the international market.

All the time, "Client first, Service best" is our principle. Customers are our pilot, service is our heart. Your satisfaction is our eternal pursuit. Let’s hand in hand and create a better tomorrow!
