Specifications
HF120Y construction machinery and equipment1,use with air compressor
2, drill 90-130mm ,30-40m depth
3,high efficient

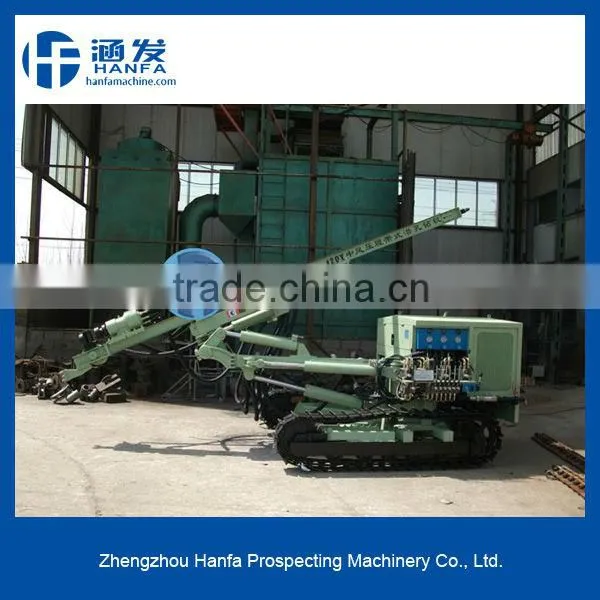

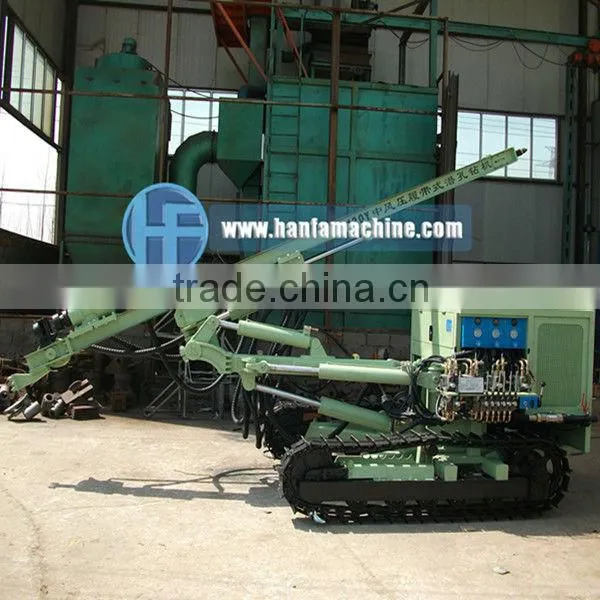

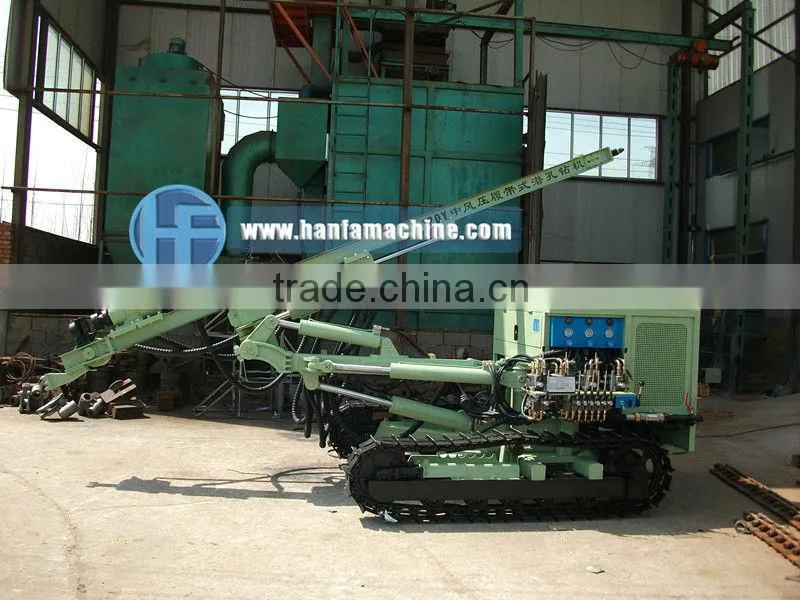

HF120Y construction machinery and equipment
I. Detailed Product Description
HF120Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumptionrotary torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Use HF120Y rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
II. Specifications
Wind pressure (Mpa) |
10.7----1.6 |
Air consumption (m³/min) |
10----12 |
Drilling diameter (mm) |
90----130 |
Drilling depth (m) |
level 40m,down 30m |
Once promotion distance (mm) |
3000 |
Drill diameter (mm) |
60 |
Skid compensation (mm) |
1020 |
Maximum lift force (N) |
18000 |
Skid pitch (°) |
up and down total 100 |
Swinging angle of skid (°) |
Left 90, right 45 |
Boom Pitch (°) |
up and down total 70 |
Boom swing angle (°) |
Left 45, right 45 |
Grade ability (°) |
25 |
Chassis ground clearance (mm) |
250 |
Travelling speed (km/h) |
2 |
Back to the transit speed (r/min) |
0----80 |
Rotary torque (N.m) |
2000 |
Host Power (Kw) |
37 |
For rock (f) |
6----20 |
Impact frequency (r/min) |
950---1500 |
Total Weight (kg) |
4600 |
Dimension (L * W * H) |
5200*2030*2300 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
