Specifications
KP2000 Professional Engineering Drilling Rig1.direct and reverse circulation
2.good stability
nvenient operation

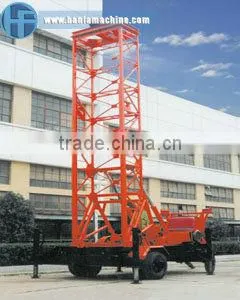

KP2000 Professional Engineering Drilling Rig
- Product description
The filling pile drilling machine of KP2000 type applies to pore formig construction of various architectural base and shallow well with heavy caliber, vertical well of small coal mine, defense engineering bore using and other drilling projects. This machine adopts two species of drilling technique of direct and reverse circulation, the efficiency enhances obserbably in the process of pebble, gravel and rock layer constrution. The complete machine has good stability, convennient operation, low noise, good pore forming quality and high drilling efficiency. The drilling is fixed hydraulic pressure traverse motion mechanism, the complete machine can make horizontal movement, and can content the pile bore emplacemengt of various pile foundation position. The operation is convinient and flexible, the leveling of the complete machine is fast and this can shorten the assistant time of drilling emplacement. The drilling machine of KP2000 type is equipped with the direct and reverse circulation system of ZK150 type which is the patent product of our factory. It can enhance drilling's operating efficiency of 3-5 times.
Main Technical Parameter
KP2000 Type Engineering Drilling Machine |
ZK150 Type Circulating System For Both Positive And Negative Use |
|||
Dynamic Power(Kw) |
45 |
Type Parameter |
3PNL |
6PS |
Drilling Depth(M) |
80 |
|||
Power(Kw) |
22 |
30 |
||
Drilling Diameter(M)(Rock Stratum, Coverage Stratum) |
2 ,3 |
|||
Delivery Lift(M) |
22 |
12 |
||
Rotary Speed(R/M) |
10 30 43 63 |
|||
Suction Lift(M) |
7.5 |
|||
Rotary Torque(Kn.M) |
43.8 14.6 10.2 7.0 |
|||
Flow Capacity(M3/H) |
108 |
180 |
||
Mass(T) |
11 |
|||
