water drilling rig prices

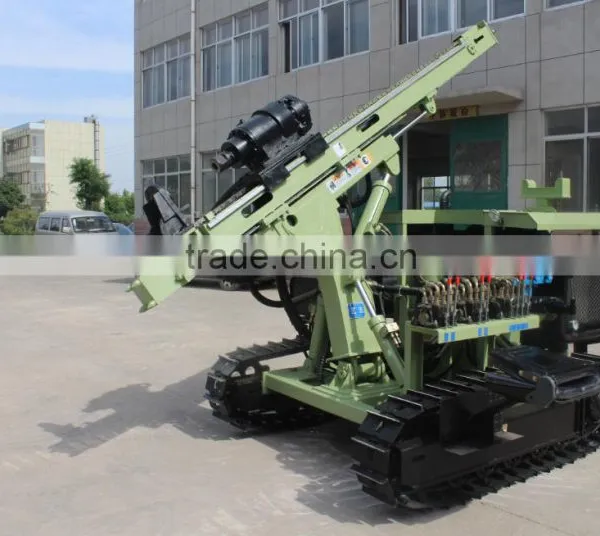

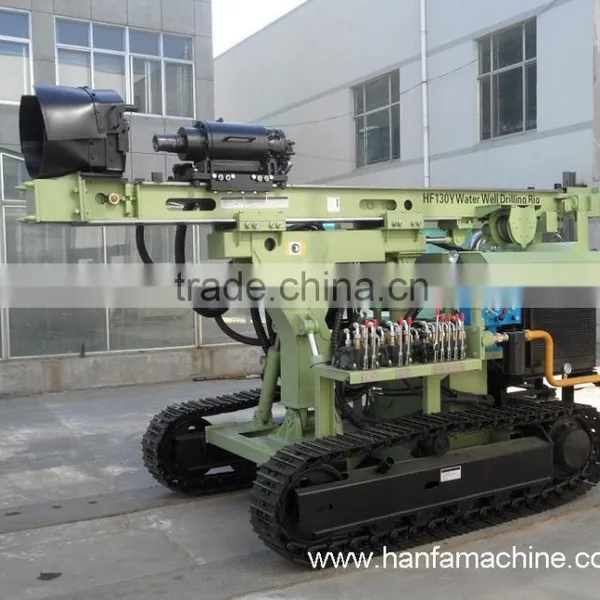

Introduction

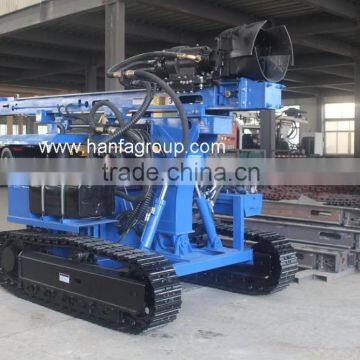

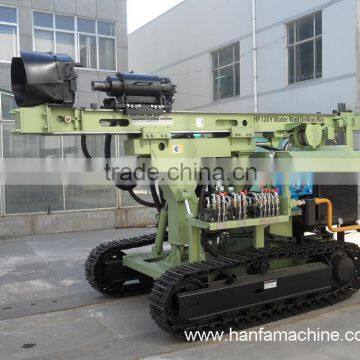

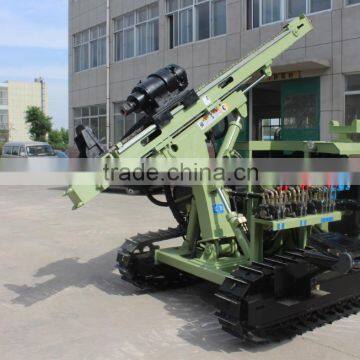

HF130Y water drilling rig prices, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
The portarble crwler type rotary piling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
blast hole export dth mini piling machine:
The Technical parameters as follow:.
Main technical parameters
Bore diameter(hammer) |
90-300mm |
Bore depth |
20-100m |
Air consumption |
10-26m³/min |
|
Air pressure |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
|
Pipe diameter |
76mm/89mm |
For rock |
F=6-20 |
Bore diameter(screw) |
Max 400mm |
Bore depth |
0-30m |
Screw pipe diameter |
130-400mm |
Once promotion |
2000mm |
Skid pitch |
100° |
Swinging angle of skid |
Left and right total 40° |
Rotation speed |
0-70r/min |
Host power |
56Kw |
Climb ability |
35° |
Dimension(L*W*H) |
4460*1950*2460(mm) |
weight |
4360Kg |
Walk speed |
0-2.5km/h |

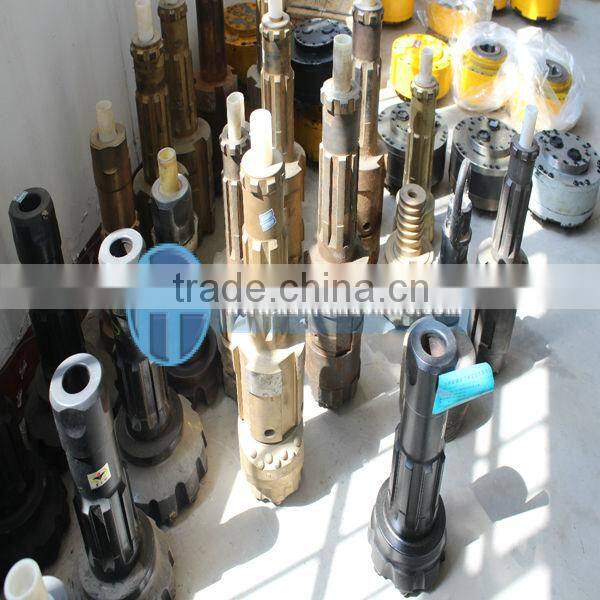

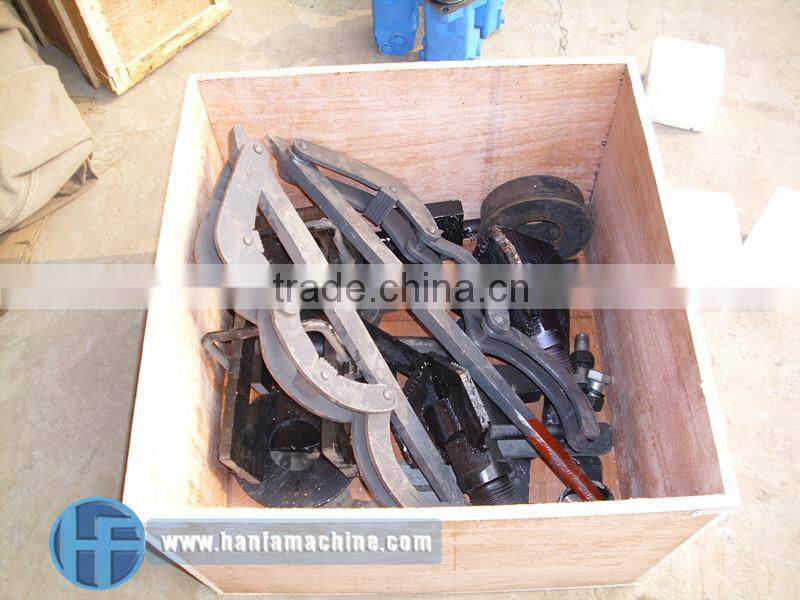

Fittings
