DTH Water Drilling Rig, HF200Y Water Well Drilling Machine

DTH Water Drilling Rig, HF200Y Water Well Drilling Machine thumbnail-1
DTH Water Drilling Rig, HF200Y Water Well Drilling Machine photo-1
US$ 41,800 - 43,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name HF
Model Number HF200Y multifunctional water well drilling rig
Usage Water Well
Voltage 220V/380V
Power(W) 103kw
Dimension(L*W*H) 9400*2100*3200mm
Weight 185000
Certification ISO CE
Warranty 12month
After-sales Service Provided Overseas service center available

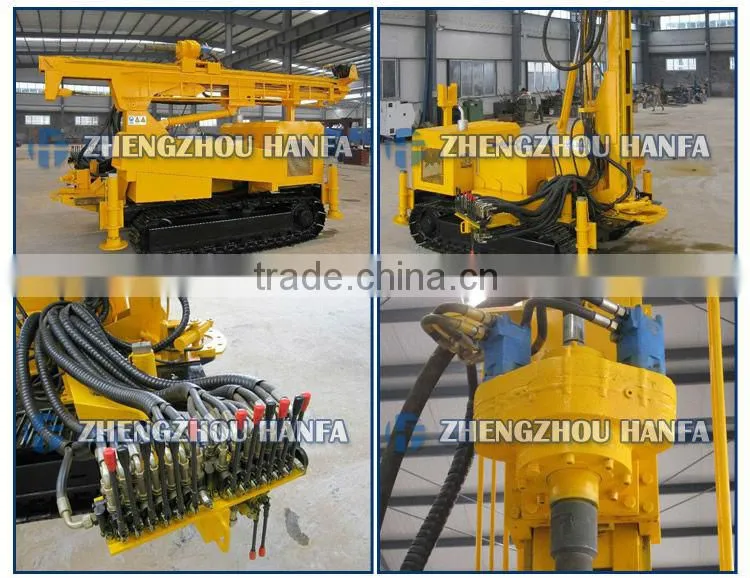

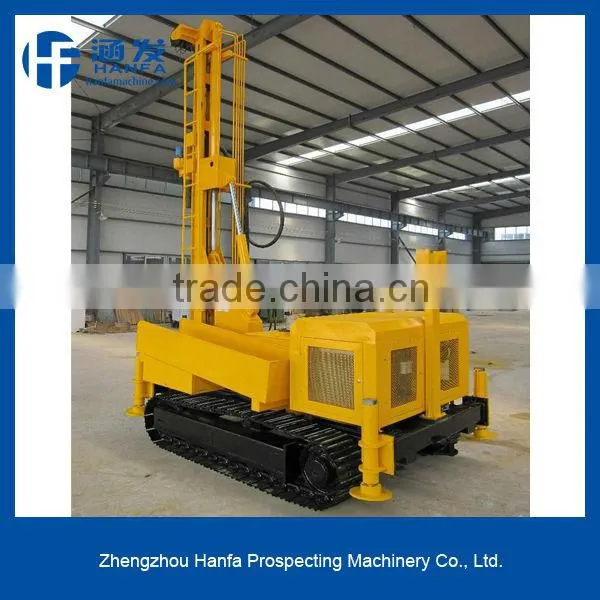

DTH water drilling rig, HF200Y water well drilling machine

DTH water drilling rig, HF200Y water well drilling machine



1, crawler  type ,hydraulic control, easy to move and operate



2,capable,muliti-functional, high efficiency and economic .it can be used with air compressor or mud pump



3, it adapt to different and complex stratum



4, it is widely used in industrial and agriculture water project,drill water well,inspect well and other exploration

borehole.which especially used for drilling geothermal heating stove.





DTH water drilling rig, HF200Y water well drilling machine



Bore diameter

127-254mm

Bore depth

213m

Work pressure

1.05-2.46Mpa

Air consumption

16-30m3/min

Drill rod length

3m

Drill rod diameter

76mm

dimension

5800*2040*3200

Climb ability

25degree

Walking speed

2.5km/h

Total weight

8T

Main volume system

Hoist force

3400N

Speed up

50m/min

Speed down

96m/min

Feed system

Axial pressure

40820N

Hoist force

68040N

Slow lift

8m/min

Slow forward

16m/min

Quick lift

26m/min

Quick forward

48m/min

Rotation torque

3200NM

Rotation speed

130r/min



DTH water drilling rig, HF200Y water well drilling machineDTH water drilling rig, HF200Y water well drilling machine
