Specifications
BW160 mud pump for drilling rigs1.used for irrigation agricultural machinery
2,high pressure,lift much
3,light weight

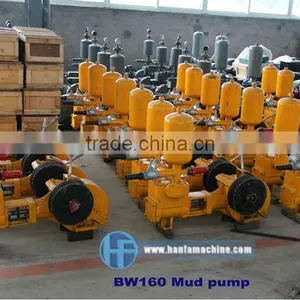

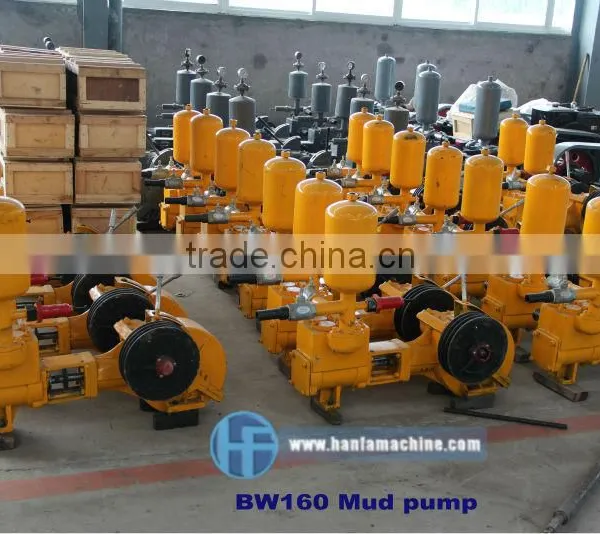

Best seller in 2013. BW160 mud pump for water well drilling rigs
The main characteristic is the high pressure, lift much, especially for mountain terraces of irrigation.
But it’s also one the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid (mud or water), making it circulate during drilling and carry rock waste back to the ground , in order to achieve and maintain the bottom hole Clean and lubricate drill bits and drilling tools with cooling
Techincal parameter
Mud Pump Specifications | |
Model No.: |
BW160 |
Cylinder diameter |
95mm |
Piston Stroke |
85mm |
frequency of stroke |
165 times/min |
Flow rate |
160 L/min |
Pressure |
1.3 mpa |
Power input |
5.88 kW |
Diameter of suction pipe |
50mm |
Diameter of discharge pipe |
40mm |
Overall dimensions (LxWxH) |
1110 x 725 x 965 mm |
Weight |
200 kg |
