HFP200 portable diamond core drill rig
1.INSTRUCTION
HFP200 portable diamond core drill rig

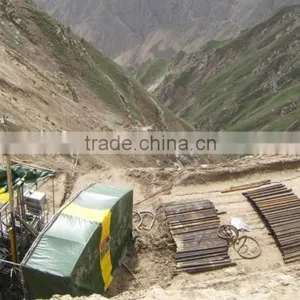

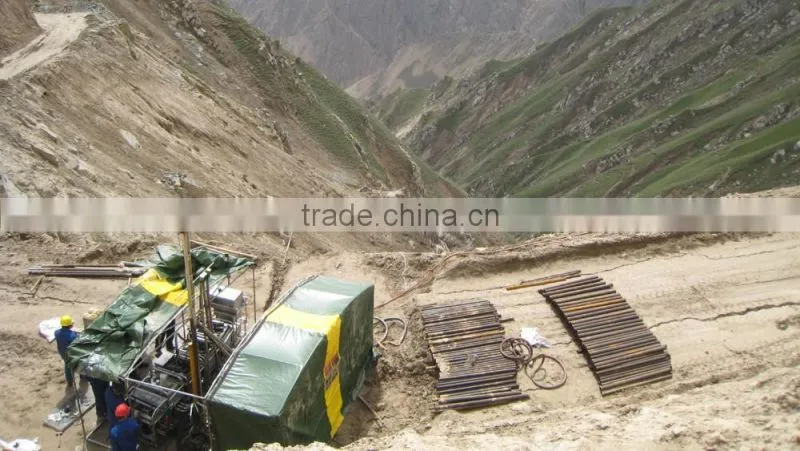

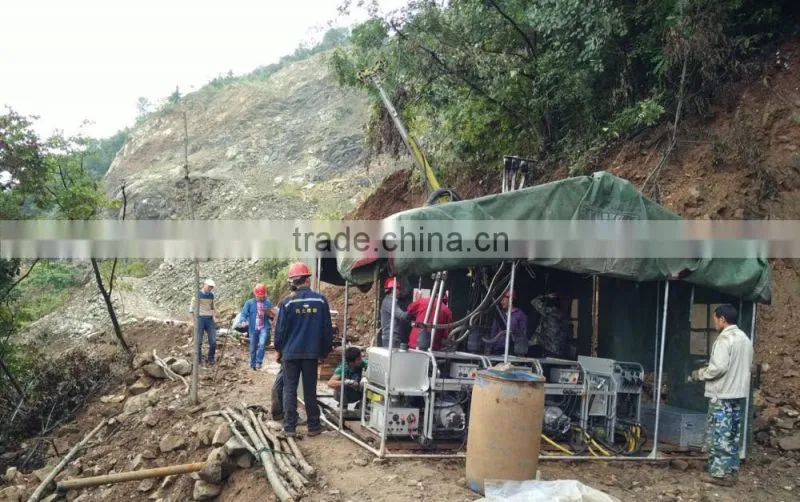

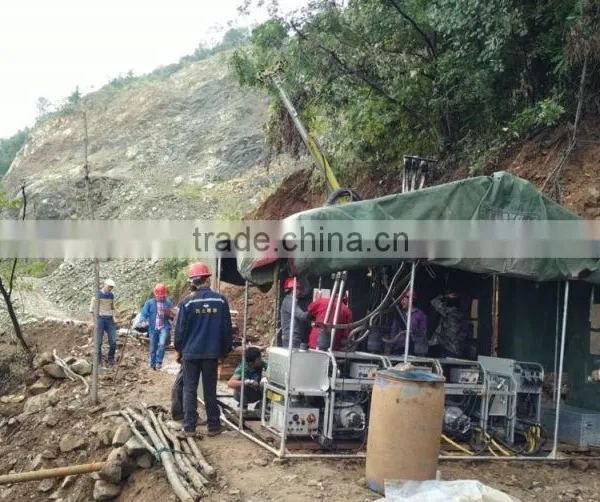

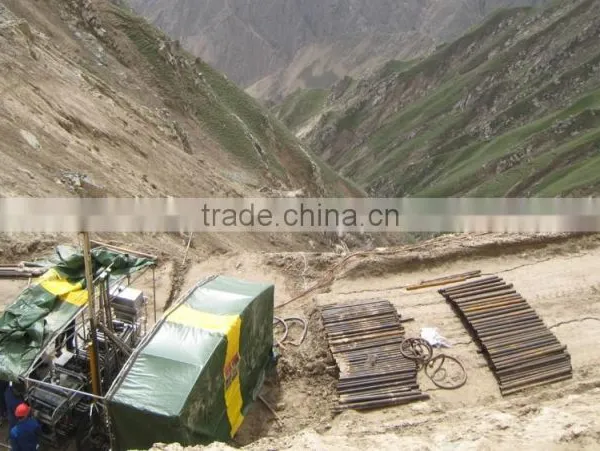

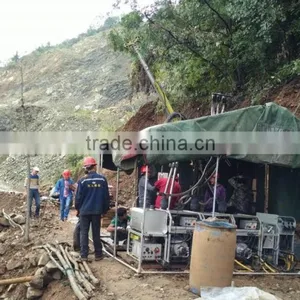

With its high efficiency and easy assembling capability, HFP200 portable hydraulic core drill has been widely used mineral exploration, infrastructure construction (i.e. railway, road and bridge, etc.), hydraulic and hydro-power project, tunnel exploration and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountain areas, forest and plateau. It is the ideal drilling rig when operating in hard-to-access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.HFP200 portable core sample drilling rig
2.pecification of the HFP200
HFP200 portable diamond core drill rig
| Drilling depth capacity | HQ/NTW/BTW | 30/100/200m |
| Hole Diameter | Rod Length 1.0m | 96/75.7/60mm |
| Core Diameter | 63.5/56/42mm | |
| Power engine | KUBOTA D1105.T, 23.5KW/3000RPM | |
| Hydraulic system | American Parker valve,water cooler | |
| Maximum pressure 20Mpa/max,Maxium flow 54L/min | ||
| Top drive rotation head | Maximum torque | 400N.m |
| Maximum rotation speed | 1300rpm | |
| Feed travel | 1.27m | |
| Pull/Thrust | 33KN/24KN(Single cylinder) | |
| Winch | Average speed | 150m/min |
| Lift | 600kg | |
| Were Diameter | 5mm | |
| Were accommodation | 240m | |
| Mast | Height of the mast on 90 degree | 3.8m |
| Drilling angle | 45º-90º(standard ) | |
| 0º-90º(option ) | ||
| Size and weight | Platform area/Module quantity | 3m×3m/6 piece |
| Gross/Maximum module | 605kg/120kg | |
3.Advandge
HFP200 portable diamond core drill rig
Key Characteristics: Easy to access, fast to assemble/disassemble, high efficiency.
Light-weight and portable

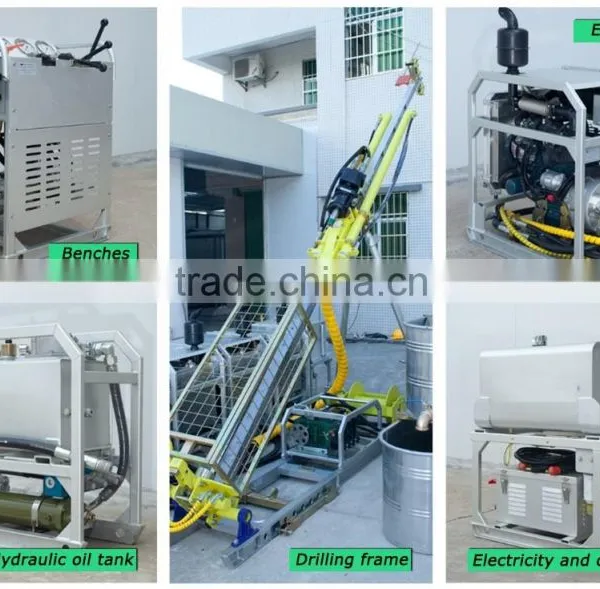

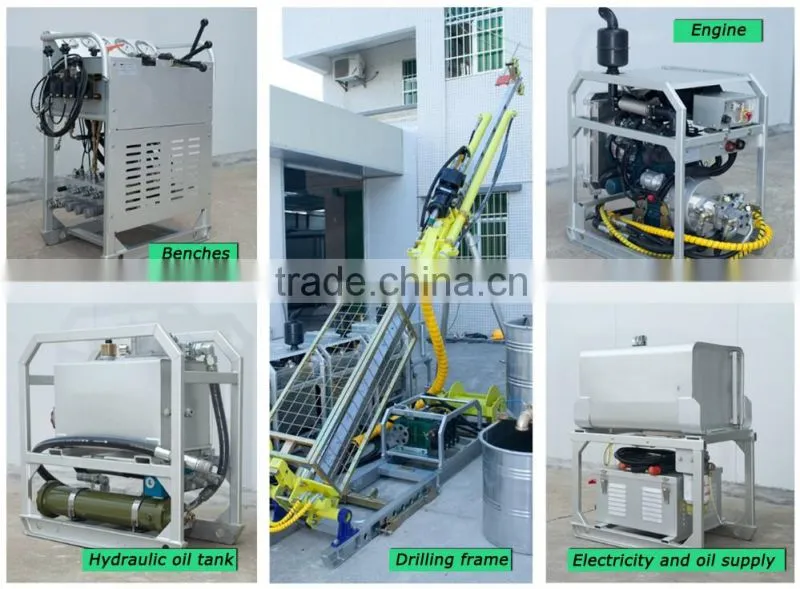

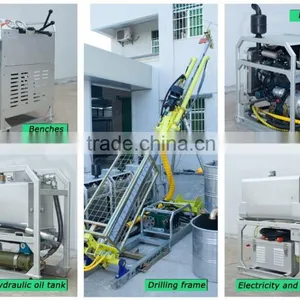

Modular design – The heaviest modular is 137kgs, can be carried be four persons.
Drill frame of mast type – Drilling from an angle of 45°to 90°, no tower is needed.
Light weight – 80% of the machine framework made of high-strength aluminum ally materials.
Fast
Fast transportation – No need for road and infrastructure construction
Fast relocation – Only 2 hours required to be ready for the next hole.
Fast penetration – 3times higher than vertical rig with a max. daily penetration of 150
meters and an average daily penetration of 70 meters.
Reliable
All key parts are from the global leading brands, powerful,stable and reliable.
Integrated hydraulic system with no worries of leakage and malfunction.
Unique mud system and special mud materials to increase drilling efficiency and reduce
accidents.
