Specifications

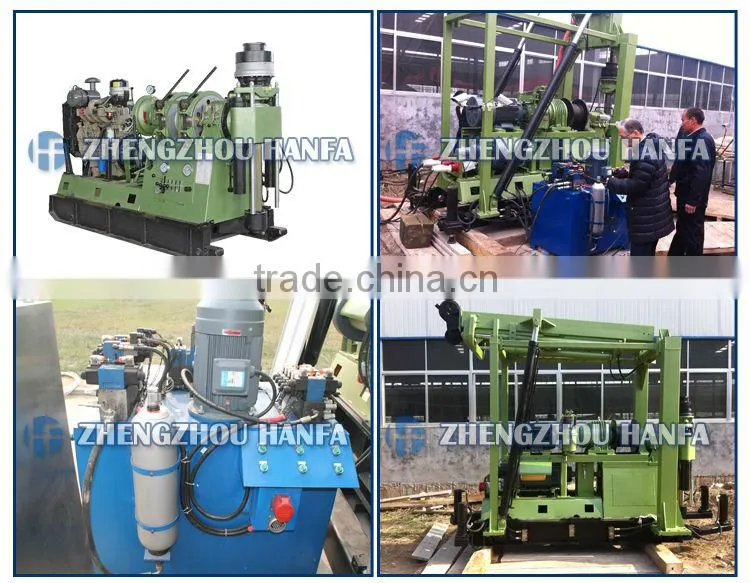

HF-44A Hydrogeological water well drilling machine1.electro-hydrauliac intelligent control
2.high efficiency
HF-44A intelligent control core drilling rig is one new design diamond drill bit and alloy drill bit core drilling equipment, it is researched and designed by our factory expert together with famous MWPU expert,and site instruction installed ,debug by German electric expert Maier Helmut.mainly used for geology,metallurgy,coal ,hydrology,engineering and other industries
It also can be used for enginnering geological exploration ,shallow petroleum and natural gas mining ,mine tunnel ventilation ,
drainage,water well drilling and large diameter foundation pile construction ,it has intelligent control,safe ,efficient comfortable
and innovative features
1 Application of fully digital electrical control system, can set the torque limit value according to the torsional strength of drill
pipe as the machine is working, when the load is too large or sudden increase, it can warning earlier. All the data appear on
the screen intuitively. Workers can take corresponding actions in advance according to the informations, the phenomenon such
as sticking, sudden increase of load
2, Drilling rig's rotary is driven by dc speed regulating motor, rotary speed can realize stepless speed change in a certain range.
Can regulate freely rotary speed according to the working condition of drilling rig
3, Drill winch is driven by ac frequency conversion motor, the control system is separated from its host, hoisting speedand
realize stepless speed, effectively improve the efficiency of construction, and avoid the personal injury accidents when put
up drilling tools.
Drilling depth |
Core drilling 750-1400m Foundation stake drilling 100m Hydrological drilling 300-800m |
Max.lifting capacity of spindle |
120KN |
|
Rotation angle of spindle |
0-360° |
uring force of spindle |
90KN |
|
Spindle speed |
DC motor revolving speed |
0-1500 rpm stepless speed regulating |
Steel Wire Diameter |
18.5mm |
rotary torque scope of spindle |
0-2180N.m |
Steel wire lifting speed |
0-4m/s stepless speed regulating |
|
Spindle stroke |
600mm |
Max.hoisting force |
50KN |
|
I.D of spindle |
93mm |
Oil pump displacement |
32ml |
|
Power |
Spindle slewing motor ,Z4-180-21 DC adjustable-speed motor 45KW/1500rpm |
Oil pump max working pressure |
25Mpa |
|
Winch slewing motor ,IFB-50-37-B-B3 AC variable frequency motor ,37KW/3000rpm | ||||
